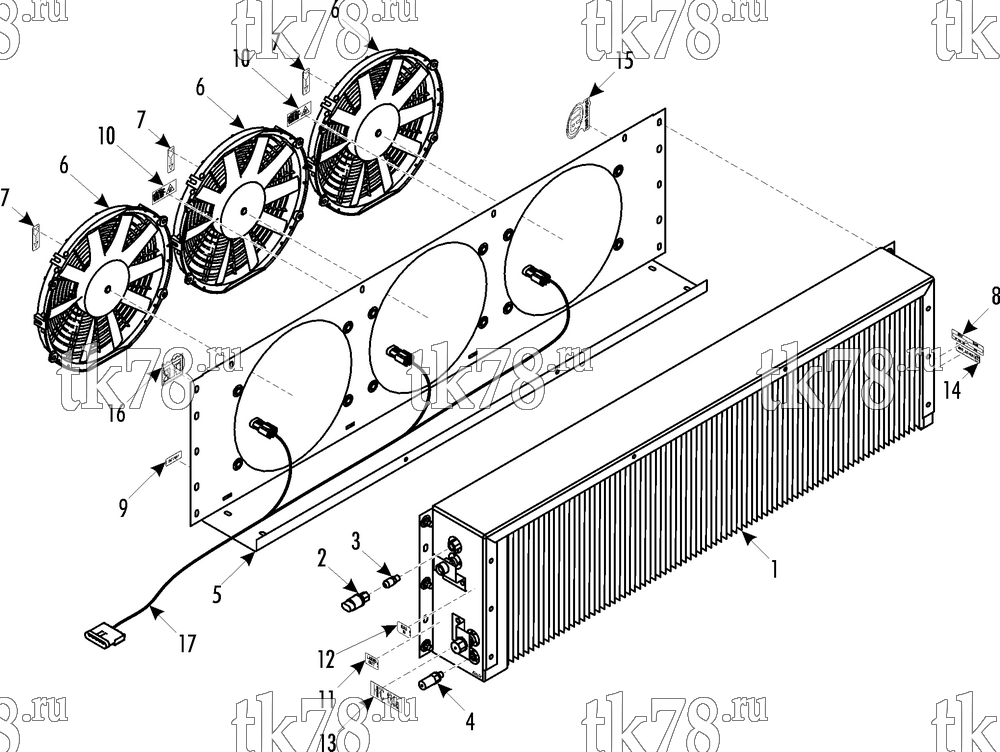

Установкa Thermo King ShuttleAIRE S-30 схема UNDERMOUNT CONDENSER (S-30 ULP) – 180A1
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2188 | COIL - condenser (undermount) | 1 | |
| 2 | 41-5069 | SWITCH - hpco | 1 | |
| 3 | 11-2886 | VALVE - assy | 1 | |
| 4 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 55-6994 | SCREW - condenser | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-6995 | FLATWASHER | 6 | ||
| 55-5084 | SCREW - condenser to shuttle | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT | 4 | ||
| 5 | 98-6496 | FRAME - bottom | 1 | |
| 55-6994 | SCREW - frame | 14 | ||
| 55-7170 | LOCKWASHER | 14 | ||
| 55-6995 | FLATWASHER | 14 | ||
| 6 | 78-1021 | FAN - condenser (12V) | 3 | |
| 78-1022 | FAN - condenser (24V) | 3 | ||
| 55-6994 | SCREW - fan | 12 | ||
| 55-7170 | LOCKWASHER | 12 | ||
| 55-6995 | FLATWASHER | 12 | ||
| 55-9443 | NUT - captive | 12 | ||
| 7 | 99-9084 | NAMEPLATE - Arrow | 3 | |
| 8 | 99-4486 | NAMEPLATE - Warranty | 1 | |
| 9 | 91-7520 | NAMEPLATE - 12 VDC | 1 | |
| 91-7543 | NAMEPLATE - 24 VDC | 1 | ||
| 10 | 91-7511 | NAMEPLATE - Warning Fan | 2 | |
| 11 | 91-7550 | NAMEPLATE - Liquid Out | 1 | |
| 12 | 91-7510 | NAMEPLATE - Gas In | 1 | |
| 13 | 91-7508 | NAMEPLATE - HCF 134A | 1 | |
| 14 | 92-2787 | NAMEPLATE - Homologation | 1 | |
| 15 | 92-1773 | NAMEPLATE - IR Logo | 1 | |
| 16 | 91-6958 | NAMEPLATE - TK Logo | 1 | |
| 17 | 41-8210 | HARNESS - condenser (12V, for connectors see 115D14, 9/04 & after) | 1 | |
| 41-8211 | HARNESS - condenser (24V, for connectors see 115D14, 9/04 & after) | 1 | ||
| 41-5098 | HARNES - condenser (12V, for connectors see 115D14, before 9/04) | 1 | ||
| 41-5099 | HARNES - condenser (24V, for connectors see 115D14, before 9/04) | 1 |
