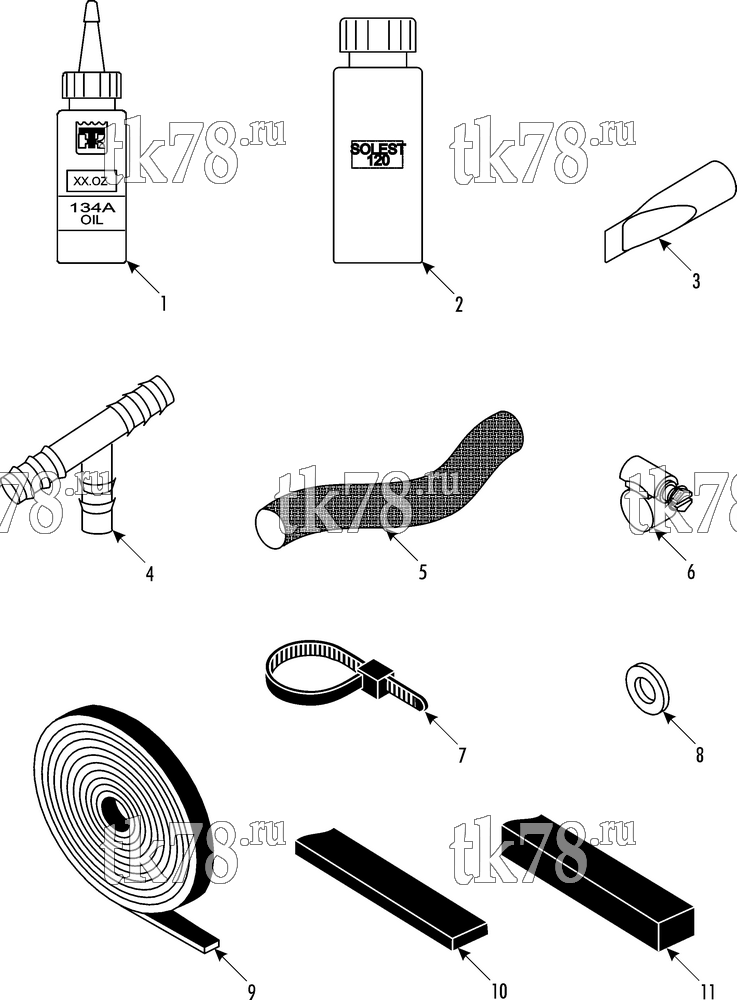

Установкa Thermo King Shuttle SR 380 схема INSTALLATION KIT – 229G2
Обновление от: 12/21/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 203-505 | OIL - compressor (2 oz bottle) | 1 | |
| 2 | 203-773 | BOTTLE - suction line | 1 | |
| 3 | 66-1273 | VALVE - hose check | 8 | |
| 4 | 55-6349 | TEE - drain hose | 4 | |
| 5 | 91-9006 | HOSE (#16) | A/R | |
| 6 | 55-6726 | CLAMP | 10 | |
| 7 | 56-2330 | BANDWRAP | 20 | |
| 8 | 51-953 | WASHER | 6 | |
| 9 | 203-391 | TAPE - sealer | A/R | |
| 10 | 33-3531 | STRIP - neoprene | A/R | |
| 11 | 33-3706 | STRIP - neoprene | A/R |
