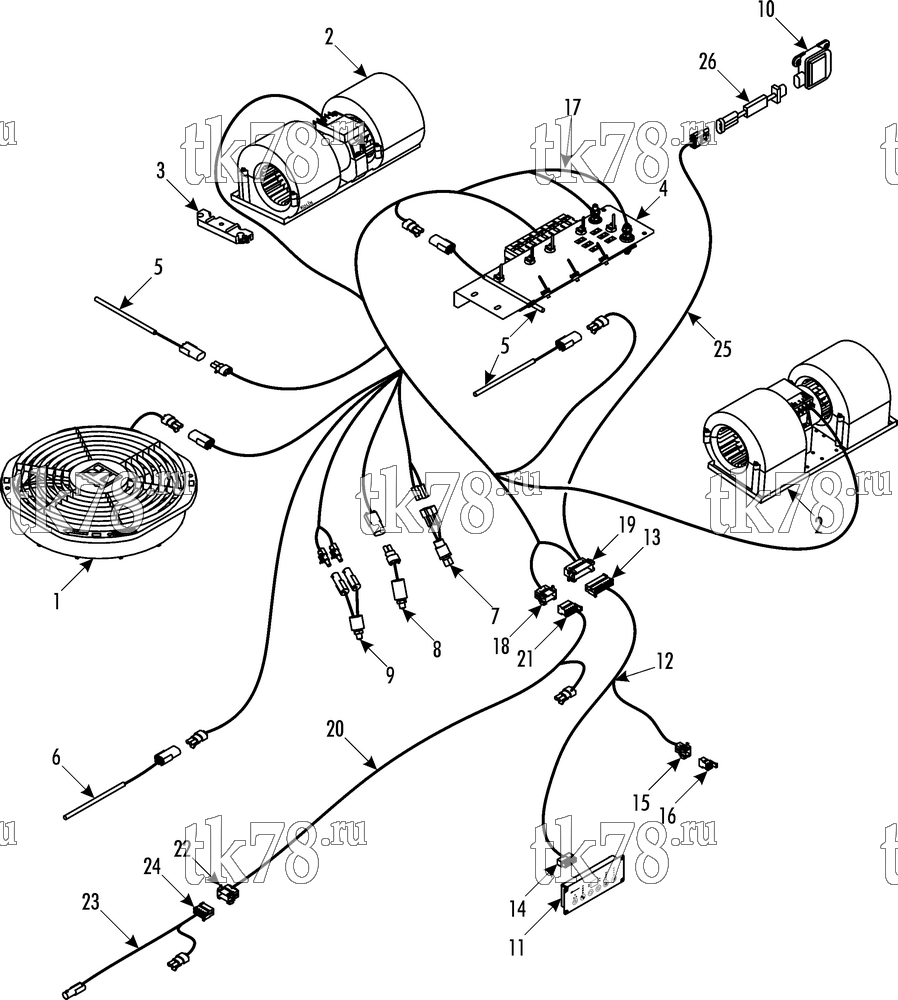

Установкa Thermo King Shuttle SR 380 схема ELECTRICAL COMPONENTS - ClimaAIRE I D (12V and 24V) – 229F8
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1493 | FAN - condenser (12V) | A/R | |
| 78-1414 | FAN - condenser (24V) | A/R | ||
| 2 | 78-1500 | BLOWER - evaporator (12V) | 2 | |
| 78-1297 | BLOWER - evaporator (24V) | 2 | ||
| 3 | 51-259 | HOLDER - blower | 4 | |
| 55-7372 | SCREW - holder | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 4 | NSS | PANEL - control (12V, see 229F0) | 1 | |
| NSS | PANEL - control (24V, see 229G1) | 1 | ||
| 5 | 41-4157 | SENSOR - temperature | 3 | |
| 6 | 41-4335 | SENSOR - temperature | 1 | |
| 7 | 41-4309 | SWITCH - lpco | 1 | |
| 8 | 41-3831 | SWITCH - hpco (TROPIC model only) | 1 | |
| 9 | 41-1501 | SWITCH - hpco | 1 | |
| 10 | 41-2755 | SERVOMOTOR (24V) | 1 | |
| 11 | 41-7211 | ClimaAIRE I D - assembly | 1 | |
| 12 | 41-7322 | HARNESS - driver panel (6 m, for connectors see 115D14) | 1 | |
| 41-7321 | HARNESS - driver panel (8 m, for connectors see 115D14) | 1 | ||
| 41-7320 | HARNESS - driver panel (10 m, for connectors see 115D14) | 1 | ||
| 41-7319 | HARNESS - driver panel (12 m, for connectors see 115D14) | 1 | ||
| 41-7318 | HARNESS - driver panel (14 m, for connectors see 115D14) | 1 | ||
| 41-7317 | HARNESS - driver panel (16 m, for connectors see 115D14) | 1 | ||
| 41-7316 | HARNESS - driver panel (18 m, for connectors see 115D14) | 1 | ||
| 13 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 14 | 41-661 | CONNECTOR (14 terminal) | 1 | |
| 15 | 41-4949 | CONNECTOR (4-pin, male) | 1 | |
| 16 | 41-2769 | CONNECTOR (4 terminal, female) | 1 | |
| 17 | 41-8469 | HARNESS - (connectors see 115D14) | 1 | |
| 41-8470 | HARNESS (TROPIC model, connectors see 115D14) | 1 | ||
| 18 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 19 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 20 | 41-4314 | HARNESS - extension (for connectors see 115D14) | 1 | |
| 21 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 22 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 23 | 41-7625 | HARNESS - compressor (8m, for connectors see 115D14) | 1 | |
| 41-7624 | HARNESS - compressor (12m, for connectors see 115D14) | 1 | ||
| 41-7623 | HARNESS - compressor (14m, for connectors see 115D14) | 1 | ||
| 41-7622 | HARNESS - compressor (18m, for connectors see 115D14) | 1 | ||
| 24 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 25 | 41-8468 | HARNESS - fresh air (for connectors see 115D14) | 1 | |
| 26 | 41-7190 | CONTROLLER - servomotor | 1 |
