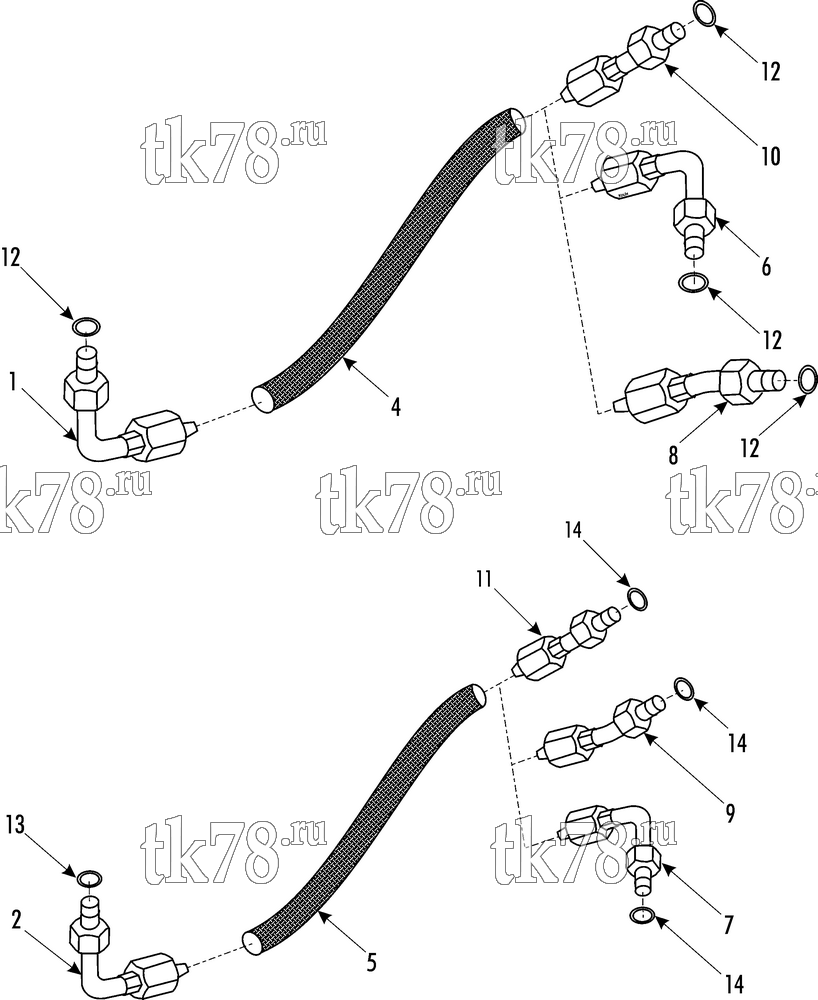

Установкa Thermo King Shuttle SR 380 схема HOSE & FITTINGS KIT – 229F7
Обновление от: 12/18/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9793 | FITTING - unit side (#16, elbow, 90 deg) | 1 | |
| 2 | 55-9798 | FITTING - unit side (#10, elbow, 90 deg) | 1 | |
| 4 | 61-2152 | HOSE (16#, kits 719693 - 719698, 719800,719807, 719808) | A/R | |
| 5 | 61-2153 | HOSE (10#, kits 719693 - 719698, 719800,719807, 719808) | A/R | |
| 6 | 55-9799 | FITTING - compressor side (#16, elbow, 90 deg) | 1 | |
| 7 | 55-9800 | FITTING - compressor side (#10, elbow, 90 deg) | 1 | |
| 8 | 55-9804 | FITTING - compressor side (#16, elbow, 45 deg) | 1 | |
| 9 | 55-9805 | FITTING - compressor side (#10, elbow, 45 deg) | 1 | |
| 10 | 55-9806 | FITTING - compressor side (#16, straight) | 1 | |
| 11 | 55-9783 | FITTING - compressor side (#10, straight) | 1 | |
| 12 | 33-2848 | GASKET O-Ring 9/16 id | 2 | |
| 13 | 33-2847 | GASKET O-Ring 11/16 id | 1 | |
| 14 | 33-2846 | GASKET O-Ring 7/16 id | 1 |
