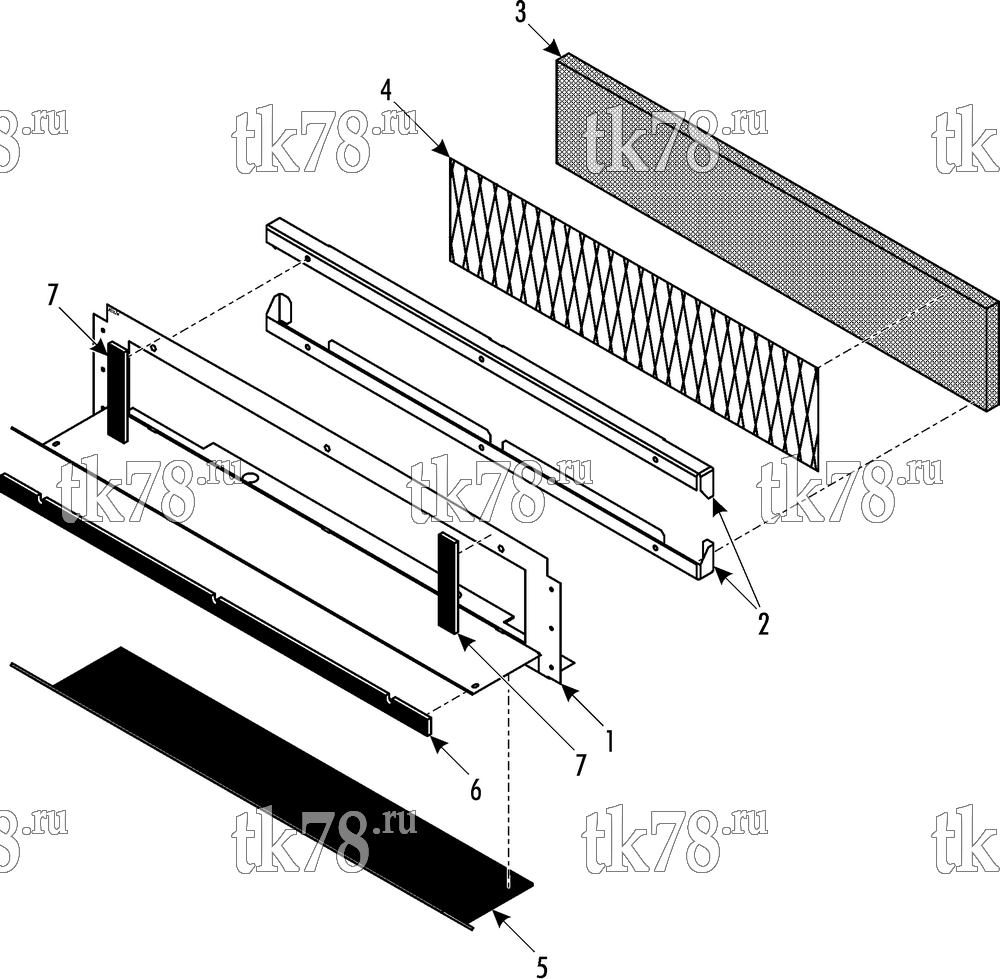

Установкa Thermo King Shuttle SR 380 схема FRESH AIR PERMANENT – 229F2
Обновление от: 11/13/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8134 | PANEL - back | 1 | |
| 55-5130 | RIVET - panel | 8 | ||
| 2 | 98-8135 | FRAME - permanent fresh air | 2 | |
| 55-7340 | SCREW - frame | 6 | ||
| 55-7404 | LOCKWASHER | 6 | ||
| 51-1610 | FLATWASHER | 6 | ||
| 55-9573 | NUT - captive, closed | 6 | ||
| 3 | 92-7303 | FILTER - air | 1 | |
| 4 | 98-7654 | MESH | 1 | |
| 5 | 92-7300 | INSULATION | 1 | |
| 6 | 92-7301 | INSULATION | 1 | |
| 7 | 92-7302 | INSULATION | 2 |
