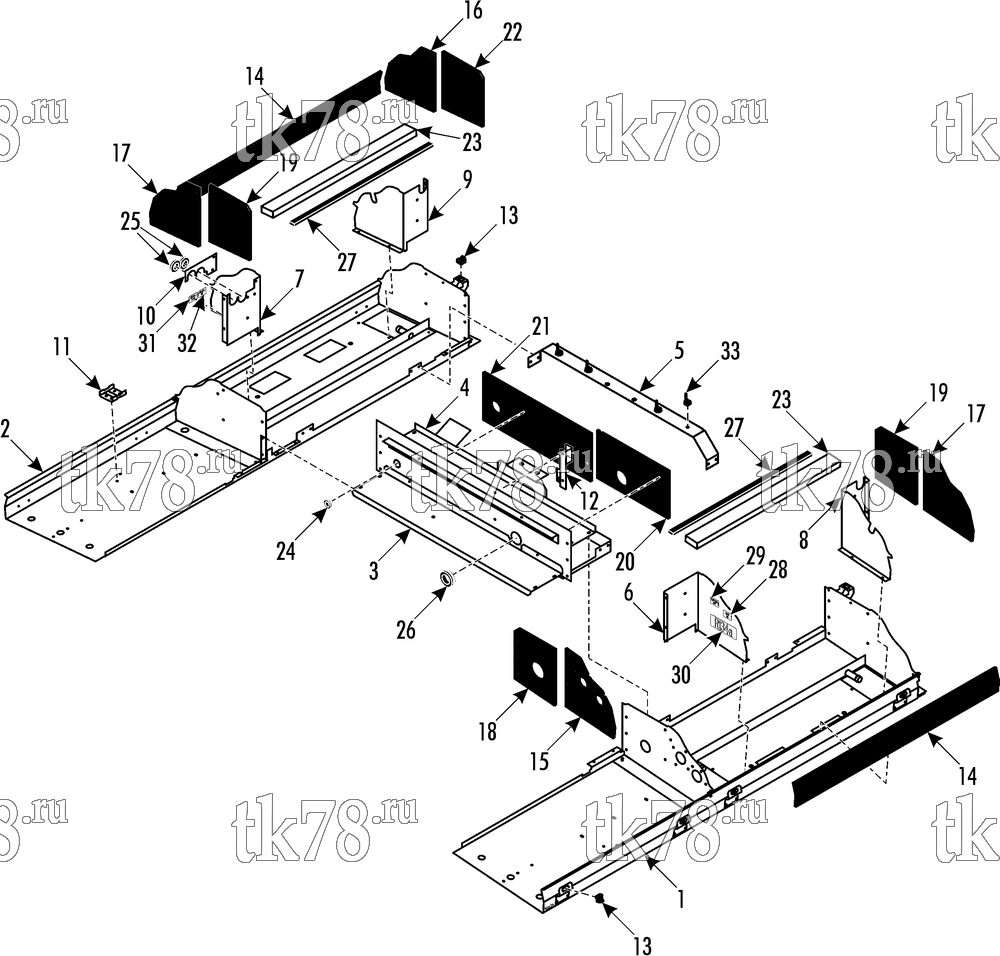

Установкa Thermo King Shuttle SR 380 схема UNIT - FRAME - INSULATION – 229E0
Обновление от: 11/13/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8129 | BASE - evap | 1 | |
| 2 | 98-8130 | BASE - evap | 1 | |
| 3 | 98-8131 | PANEL - weldment | 1 | |
| 4 | 98-8132 | PAN | 1 | |
| 5 | 98-8133 | BEAM | 1 | |
| 6 | 92-7282 | BOX - install | 1 | |
| 7 | 92-7283 | BOX - install (for unit w/ heater) | 1 | |
| 92-7284 | BOX - install (for unit w/o heater) | 1 | ||
| 8 | 92-7285 | BOX - install | 1 | |
| 9 | 92-7286 | BOX - install | 1 | |
| 10 | 92-7287 | BLADE (only for unit w/ heater) | 1 | |
| 11 | 92-2499 | BRACKET - filter drier | 1 | |
| 12 | 92-7288 | BRACKET - tube holder (only for unit w/ heater) | 1 | |
| 55-5130 | RIVET | 44 | ||
| 13 | 55-6997 | NUT - captive | 10 | |
| 14 | 92-7289 | INSULATION | 2 | |
| 15 | 92-7290 | INSULATION | 1 | |
| 16 | 92-7291 | INSULATION | 1 | |
| 17 | 92-7292 | INSULATION | 2 | |
| 18 | 92-7293 | INSULATION | 1 | |
| 19 | 92-7294 | INSULATION | 2 | |
| 20 | 92-7295 | INSULATION | 1 | |
| 21 | 92-7296 | INSULATION | 1 | |
| 22 | 92-7297 | INSULATION | 1 | |
| 23 | 92-7298 | FOAM - drain (for unit w/ heater) | 2 | |
| 92-7299 | FOAM - drain (for unit w/o heater) | 2 | ||
| 24 | 33-739 | GROMMET (0.50 id) | 1 | |
| 25 | 33-572 | GROMMET (0.750 id, only for unit w/ heater) | 2 | |
| 26 | 33-629 | GROMMET (1.00 id) | 1 | |
| 27 | 99-2495 | STRIP - neoprene | A/R | |
| 28 | 91-7510 | NAMEPLATE - Gas In | 1 | |
| 29 | 91-8536 | NAMEPLATE - Vapor Out | 1 | |
| 30 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 31 | 91-7550 | NAMEPLATE - Liquid Out (only for unit w/ heater) | 1 | |
| 32 | 91-7703 | NAMEPLATE - Liquid In (only for unit w/ heater) | 1 | |
| 33 | 51-1631 | STRAP - cable | A/R |
