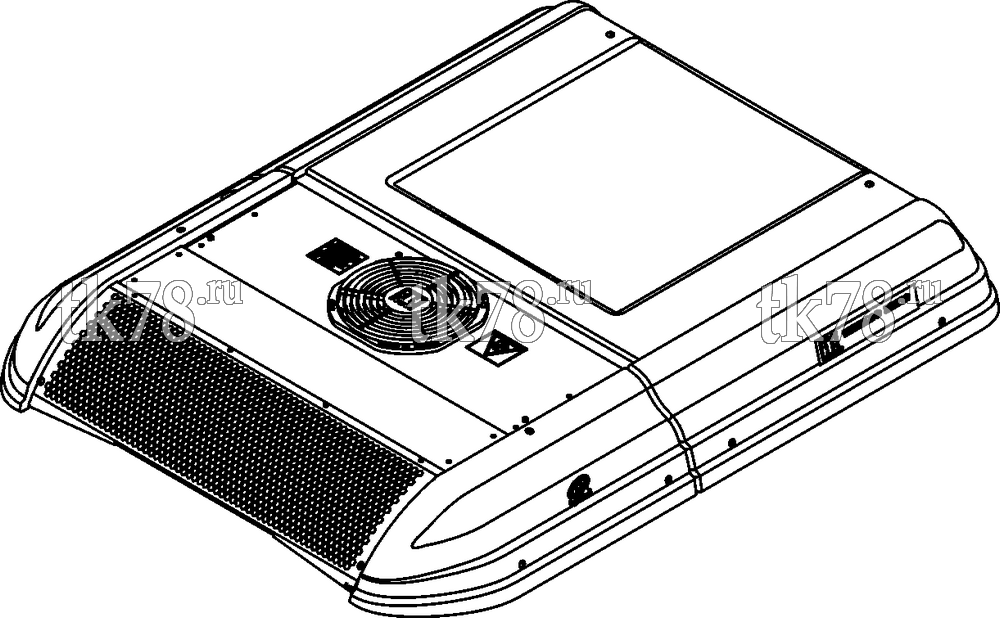

Установкa Thermo King Shuttle SR 380 схема SHUTTLE SR 380 REFERENCE SHEET – 13U13
Обновление от: 11/18/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900822 | SR 380 1000 12V | 11/08 | ||
| 900823 | SR 380 1004 12V | 11/08 | ||
| 900824 | SR 380 1000 24V | 11/08 | ||
| 900825 | SR 380 1004 24V | 11/08 | ||
| 008528 | UNIT SR 380 COND/EVAP | 11/08 | ||
| 008529 | UNIT SR 380 COND/EVAP/HEAT | 11/08 | ||
| 008530 | Electrical Circuiting - 12V DC | 11/08 | ||
| 008531 | Electrical Circuiting - 24V DC | 11/08 | ||
| 008547 | Electrical Circuiting - 12V DC, TROPIC version | 11/08 | ||
| 008548 | Electrical Circuiting - 24V DC, TROPIC version | 11/08 | ||
| 719328 | Driver Panel Kit - ClimaAIRE II w/Harness (Unit to DP - 4 m length) | 11/08 | ||
| 719304 | Driver Panel Kit - ClimaAIRE II w/Harness (Unit to DP - 8 m length) | 11/08 | ||
| 719139 | Driver Panel Kit - ClimaAIRE II w/Harness (Unit to DP - 10 m length) | 11/08 | ||
| 719137 | Driver Panel Kit - ClimaAIRE II w/Harness (Unit to DP - 14 m length) | 11/08 | ||
| 719136 | Driver Panel Kit - ClimaAIRE II w/Harness (Unit to DP - 16 m length) | 11/08 | ||
| 719135 | Driver Panel Kit - ClimaAIRE II w/Harness (Unit to DP - 18 m length) | 11/08 | ||
| 700634 | Driver Panel Kit - ClimaAIRE I D w/Harness (Unit to DP - 6 m length) | 11/08 | ||
| 700635 | Driver Panel Kit - ClimaAIRE I D w/Harness (Unit to DP - 8 m length) | 11/08 | ||
| 700636 | Driver Panel Kit - ClimaAIRE I D w/Harness (Unit to DP - 10 m length) | 11/08 | ||
| 700637 | Driver Panel Kit - ClimaAIRE I D w/Harness (Unit to DP - 12 m length) | 11/08 | ||
| 700638 | Driver Panel Kit - ClimaAIRE I D w/Harness (Unit to DP - 14 m length) | 11/08 | ||
| 700639 | Driver Panel Kit - ClimaAIRE I D w/Harness (Unit to DP - 16 m length) | 11/08 | ||
| 700640 | Driver Panel Kit - ClimaAIRE I D w/Harness (Unit to DP - 18 m length) | 11/08 | ||
| 700515 | Harness (A/C Unit to Compressor - 18 m length) | 11/08 | ||
| 700514 | Harness (A/C Unit to Compressor - 14 m length) | 11/08 | ||
| 700513 | Harness (A/C Unit to Compressor - 12 m length) | 11/08 | ||
| 700512 | Harness (A/C Unit to Compressor - 8 m length) | 11/08 | ||
| 008551 | Covers SR 380 (no fresh air) | 11/08 | ||
| 008552 | Covers SR 380 (with fresh air) | 11/08 | ||
| 008532 | Fresh Air Damper SR 380 | 11/08 | ||
| 008546 | Fresh Air Permanent SR 380 (no flap) | 11/08 | ||
| 008533 | No Fresh Air for SR 380 | 11/08 | ||
| 718370 | Compressor Kit - TM16, Double A Pulley, 12V, POE oil, no manifold | 11/08 | ||
| 718372 | Compressor Kit - TM16, Polygroove Pulley, 12V, POE oil, no manifold | 11/08 | ||
| 718371 | Compressor Kit - TM16, Double A Pulley, 24V, POE oil, no manifold | 11/08 | ||
| 718373 | Compressor Kit - TM16, Polygroove Pulley, 24V, POE oil, no manifold | 11/08 | ||
| 715717 | Kit - Vertical Adjustable Comp Manifold - for TM16/TM21 (not for A6) | 11/08 | ||
| 701412 | Kit - Horizontal Manifold - for TM compressors | 11/08 | ||
| 718121 | Kit - Horizontal Adjustable Comp Manifold - for TM16/TM21 and A6 | 11/08 | ||
| 718378 | Kit - Oil, POE, for TM Compressors | 11/08 | ||
| 800317 | Installation Kit SR units - basic | 11/08 | ||
| 800295 | Installation Kit SR units - with hose (14 m length) | 11/08 | ||
| 700225 | Return Air Grille | 11/08 | ||
| 700129 | Water Valve Kit, 2-way, servomotor | 11/08 | ||
| 700130 | Water Valve Kit, 3-way, servomotor | 11/08 | ||
| 700127 | Harness Kit - Servomotor Water Valve - 10 m | 11/08 | ||
| 700128 | Harness Kit - Servomotor Water Valve - 20 m | 11/08 | ||
| 719054 | Water Pump Kit - 12 VDC, Hose 16 mm id, 500 L/hr | 11/08 | ||
| 719055 | Water Pump Kit - 27 VDC, Hose 16 mm id, 500 L/hr | 11/08 | ||
| 719006 | Harness (Unit to Water Boost Pump - 14 m length) | 11/08 | ||
| 719007 | Harness (Unit to Water Boost Pump - 9 m length) | 11/08 | ||
| 719008 | Harness (Unit to Water Boost Pump - 7.6 m length) | 11/08 | ||
| 700296 | Floor Temperature Sensor Kit - ClimaAIRE II (9 m) | 11/08 | ||
| 718847 | Harness Extension Kit (8 m) | 11/08 | ||
| 701403 | Refrigerant Fittings Kit (90 deg/90 deg) | 11/08 | ||
| 701404 | Refrigerant Fittings Kit (90 deg/90 deg) | 11/08 | ||
| 701405 | Refrigerant Fittings Kit (45 deg/45 deg) | 11/08 | ||
| 701406 | Refrigerant Fittings Kit (straight/straight) | 11/08 | ||
| 719693 | Refrigerant Hose Kit (1 m without fittings) | 11/08 | ||
| 719694 | Refrigerant Hose Kit (6 m without fittings) | 11/08 | ||
| 719695 | Refrigerant Hose Kit (9 m without fittings) | 11/08 | ||
| 719696 | Refrigerant Hose Kit (12 m without fittings) | 11/08 | ||
| 719800 | Refrigerant Hose Kit (13 m without fittings) | 11/08 | ||
| 719697 | Refrigerant Hose Kit (14 m without fittings) | 11/08 | ||
| 719807 | Refrigerant Hose Kit (15 m without fittings) | 11/08 | ||
| 719808 | Refrigerant Hose Kit (16 m without fittings) | 11/08 | ||
| 719698 | Refrigerant Hose Kit (17 m without fittings) | 11/08 | ||
| 720098 | Kit - adapters II - for tube installation | 11/08 |
