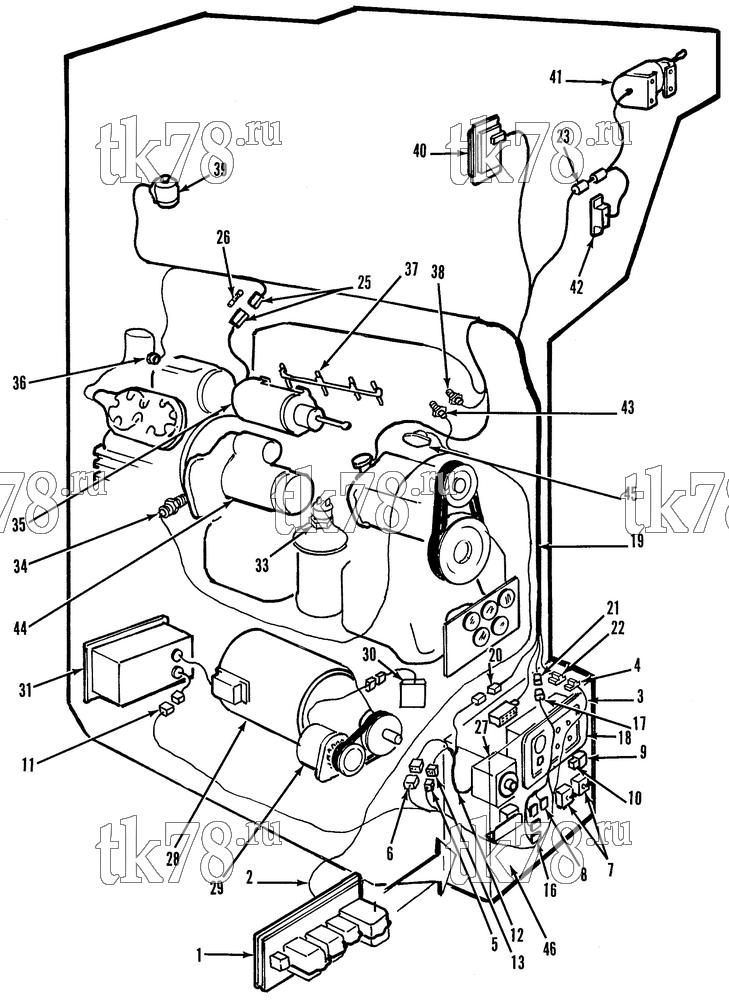

Установкa Thermo King Sentry di EMEIA схема CYCLE SENTRY COMPONENTS (SENTRY 50) – 74D8
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7246 | BOARD - Cycle Sentry (stop/start) | 1 | |
|
10-44-7246 | Плата, CS-II with Buzzer | 28 560 ₽ |
|
| 2 | 44-6897 | HARNESS - stop/start to engine | 1 | |
| 44-6519 | CONNECTOR - block sensor | 1 | ||
| 3 | 44-7030 | HARNESS - switch & light (assembly) | 1 | |
| 4 | 44-5600 | CONNECTOR - main harness (6-pin) | 1 | |
| 6 | 44-4925 | CONNECTOR - thermostat (6-pin) | 1 | |
| 7 | 44-709 | SWITCH - diesel/electric (continuous run) | 2 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 8 | 41-6310 | SOCKET - light | 1 | |
| 44-5654 | TERMINAL - bulb | 1 | ||
| 9 | 44-5537 | SOCKET - relay | 1 | |
| 44-3035 | BULB - light | 1 | ||
| 99-7663 | BRACKET - light | 1 | ||
| 99-7664 | BAFFLE - light | 1 | ||
| 55-3510 | CLAMP - harness | 1 | ||
| 55-5665 | SCREW - clamp | 1 | ||
| 55-5077 | NUT | 1 | ||
| 10 | 44-6047 | RELAY - battery sentry | 1 | |
| 10 | 44-9391 | RELAY - battery sentry | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 11 | 44-5218 | CONNECTOR - linestarter (4-pin) | 1 | |
| 12 | 44-7278 | HARNESS - thermostat | 1 | |
| 16 | 44-5217 | HARNESS - indicator light | 1 | |
| 41-6310 | SOCKET - light | 3 | ||
| 44-5654 | TERMINAL - bulb | 3 | ||
| 17 | 44-5030 | CONNECTOR - indicator light (6-pin) | 1 | |
| 44-3035 | BULB - light | 3 | ||
| 18 | 45-252 | PANEL - control | 1 | |
| 19 | 44-6721 | HARNESS - main | 1 | |
| 44-5214 | SOCKET (12-pin) | 1 | ||
| 44-5220 | COVER - socket | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 20 | 44-5030 | CONNECTOR - thermostat (6-pin) | 1 | |
| 21 | 44-4925 | CONNECTOR - thermostat (6-pin) | 1 | |
| 22 | 44-5622 | CONNECTOR - Cycle Sentry (6-pin) | 1 | |
| 23 | 44-5218 | CONNECTOR - evaporator (4-pin) | 1 | |
| 24 | 44-5219 | CONNECTOR - hpco | 1 | |
| 25 | 44-5767 | HOLDER - fuse | 1 | |
| 26 | 44-2590 | FUSE (10 amp) | 1 | |
| 27 | 45-1565 | THERMOSTAT | 1 | |
| 55-5699 | SCREW - thermostat | 4 | ||
| 99-5635 | COVER - thermostat | 1 | ||
| 33-1363 | GASKET - cover | 1 | ||
| 28 | 104-455 | MOTOR (see note) | 1 | |
| 77-1103 | BEARING (drive end) | 1 | ||
| 77-910 | BEARING (opposite drive end) | 1 | ||
| 29 | 44-6266 | ALTERNATOR (37 amp) | 1 | |
|
10-44-6266 | Генератор 37A 12V | 32 740 ₽ |
|
| 30 | 44-5013 | REGULATOR | 1 | |
| 44-5013 OEM | Реле-регулятор генератора, KD/MD/RD-I / SB-I/II / UMD/URD | 5 050 ₽ |
|
|
| 55-736 | SCREW - regulator | 3 | ||
| 55-431 | FLATWASHER | 3 | ||
| 44-5014 | HARNESS - voltage regulator | 1 | ||
|
10-44-5014 | Проводка генератора | 3 820 ₽ |
|
| 31 | 98-2175 | TRAY - linestarter | 1 | |
| 32 | 44-1431 | CABLE - ground | 1 | |
| 33 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 34 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 2 760 ₽ |
|
| 35 | 44-6544 | SOLENOID - engine | 1 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 36 | 44-5305 | SWITCH - high pressure | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 37 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 44-7824 | CONNECTOR - glow plug | 1 | ||
| 38 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 39 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL | 1 | ||
| 55-8786 | NUT - valve | 1 | ||
| 40 | 44-6241 | SWITCH - air pressure | 1 | |
| 41 | 44-2823 | SOLENOID - defrost damper (see 65C13) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 42 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 43 | 44-6727 | VALVE - solenoid (fuel) | 1 | |
|
10-44-6727 | Топливный соленоид, SB-II/III / SMX/SMX-II | 4 300 ₽ |
|
| 44 | 45-2325 | STARTER | 1 | |
| 45 | 44-6018 | THERMOSTAT - temperature | 1 | |
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
|
| 55-3134 | SCREW - sensor | 2 | ||
| 99-7372 | PLATE - sensor | 1 | ||
| 55-5090 | SCREW - plate | 1 | ||
| 44-6019 | BOLT - thermistor | 1 | ||
|
10-44-6019 | Термистор | 4 880 ₽ |
|
| 46 | 99-7741 | COVER - switch | 1 | |
| 33-748 | GASKET | 1 | ||
| 99-7742 | NAMEPLATE - Rear Cover | 1 | ||
| 99-7030 | NAMEPLATE - Switch & Light (w/ Cycle Sentry) | 1 |
