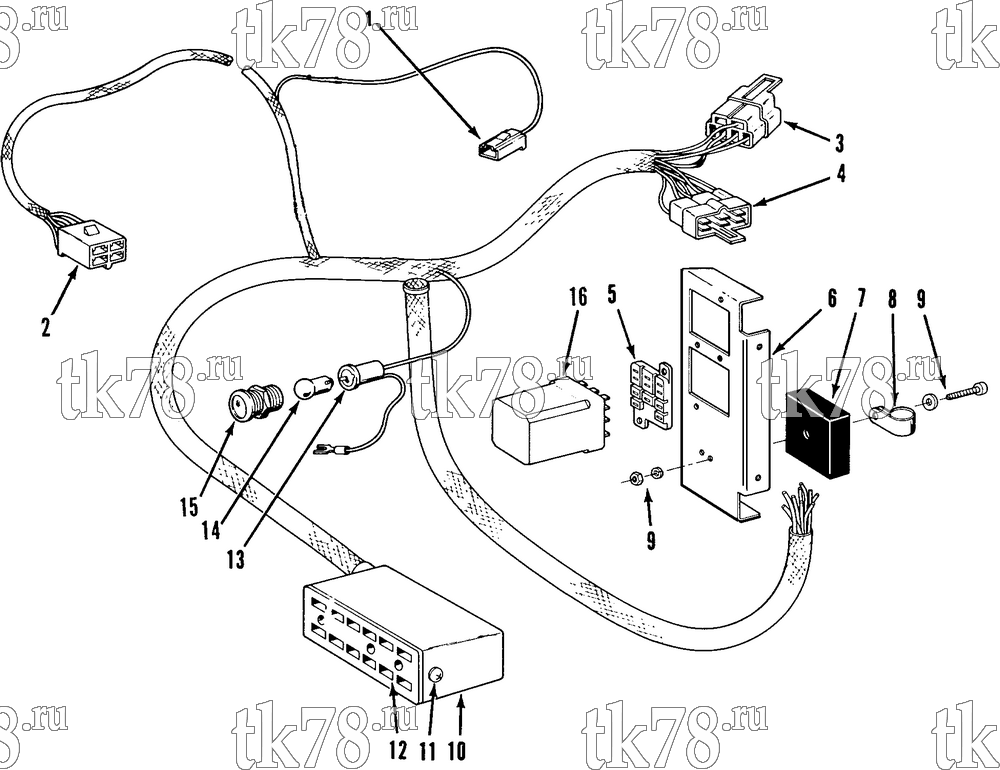

Установкa Thermo King Sentry di EMEIA схема HARNESS ASSEMBLY - FUELSAVER – 74D1
Обновление от: 7/10/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 44-7027 | HARNESS - assembly | 1 | ||
| 1 | 44-6451 | CONNECTOR (1-pin, female) | 1 | |
| 2 | 44-5219 | CONNECTOR (2-pin, female) | 1 | |
| 3 | 44-5718 | CONNECTOR - Cycle Sentry harness | 1 | |
| 4 | 44-4925 | CONNECTOR (to main harness) | 1 | |
| 5 | 44-3184 | SOCKET - relay | 1 | |
| 99-2027 | SPRING - holddown | 1 | ||
| 55-2771 | CLAMP - spring | 1 | ||
| 6 | 99-8263 | BRACKET - relay | 1 | |
| 7 | 44-5567 | TIMER - solid state | 1 | |
| 8 | 99-3427 | MOUNT - cable | 1 | |
| 9 | 55-5279 | SCREW - timer | 1 | |
| 55-3474 | FLATWASHER | 2 | ||
| 55-3557 | LOCKWASHER | 1 | ||
| 55-2930 | NUT | 1 | ||
| 10 | 44-2825 | COVER - socket | 1 | |
| 11 | 55-103 | SCREW - socket | 2 | |
| 12 | 44-5310 | CONNECTOR (15-pin) | 1 | |
| 13 | 41-6310 | SOCKET - light | 1 | |
| 44-5654 | TERMINAL - bulb | 1 | ||
| 14 | 44-3035 | BULB - light | 1 | |
| 15 | 44-5576 | LENS - light | 1 | |
| 16 | 44-3186 | RELAY - plug-in | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
