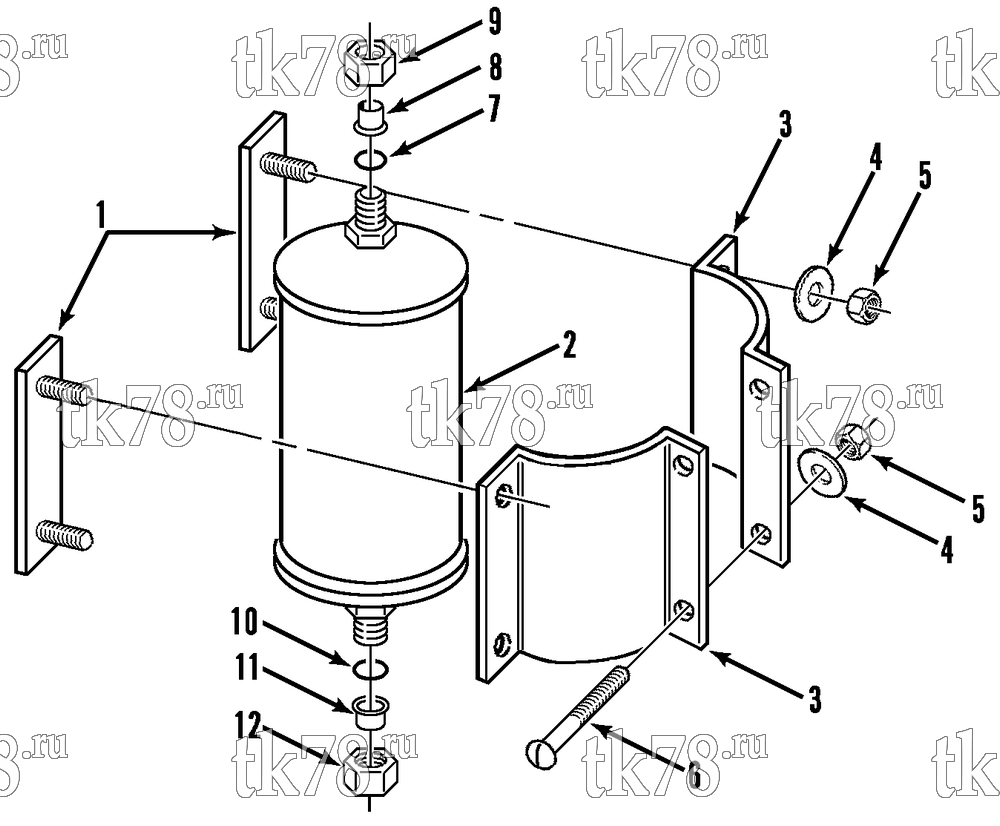

Установкa Thermo King Sentry MAX w/di 2.2 Engine схема DRIER GROUP (w/ O-RING FITTINGS) – 97A14
Обновление от: 4/21/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-1064 | BOLTSTRIP | 2 | |
| 2 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 3 | 99-1617 | CLAMP - drier | 2 | |
| 4 | 55-411 | FLATWASHER | 4 | |
| 5 | 55-4118 | NUT | 4 | |
| 6 | 55-6210 | SCREW - clamp | 2 | |
| 55-411 | FLATWASHER | 2 | ||
| 55-3585 | NUT (square) | 2 | ||
| 7 | 33-566 | O-RING (1/2 od) | 1 | |
| 8 | 55-6839 | SHOULDER (o-ring seal) | 1 | |
| 9 | 55-6396 | NUT (1/2) | 1 | |
| 10 | 33-2115 | O-RING (5/8 id) | 1 | |
| 11 | 55-6837 | SHOULDER (o-ring seal) | 1 | |
| 12 | 55-6838 | NUT (5/8) | 1 |
