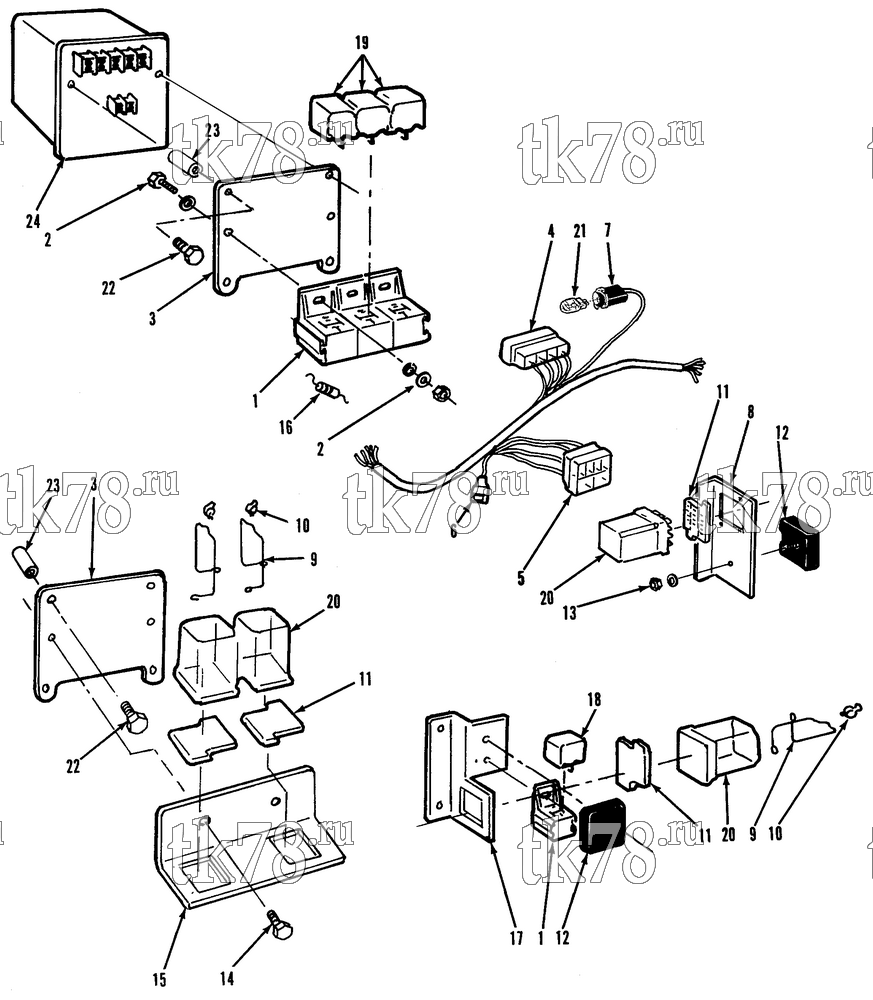

Установкa Thermo King Sentry MAX w/di 2.2 Engine схема THERMOSTAT HARNESS – 92B11
Обновление от: 2/17/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| A | 44-9944 | HARNESS (Sentry 30, w/o C/S, w/o FS, see note) | 1 | |
| B | 44-7277 | HARNESS (Sentry 50, w/o C/S, w/o FS, see note) | 1 | |
| C | 44-7278 | HARNESS (Sentry 50, w/ FS, w/o C/S & Sentry 50 w/ FS w/ CS see note) | 1 | |
| D | 44-8558 | HARNESS (Sentry 30 TC, w/o C/S w/o FS & Sentry 30 TC w/ C/S & w/o FS, see note) | 1 | |
| E | 44-8120 | HARNESS (Sentry 30 PE, w/o C/S w/o FS, see note) | 1 | |
| F | 44-8559 | HARNESS (Sentry 30 PE, w/ C/S w/o FS, see note) | 1 | |
| G | 44-7372 | HARNESS (Sentry 30 PE, w/o C/S w/ FS, see note) | 1 | |
| H | 44-8560 | HARNESS (Sentry 30 PE, w/ C/S w/ FS, see note) | 1 | |
| I | 44-9074 | HARNESS (Sentry 30, w/ CS, TG V, see note) | 1 | |
| 1 | 44-5537 | SOCKET - relay (used on A, B, D, E, F, G, H, I) | A/R | |
| 2 | 55-3015 | SCREW - socket (used on A, B, D, E, F, G, H) | A/R | |
| 55-2001 | FLATWASHER | A/R | ||
| 55-2964 | LOCKWASHER | A/R | ||
| 55-2965 | NUT | A/R | ||
| 3 | 99-9311 | BRACKET - relay (used on all harnesses) | 1 | |
| 4 | 44-4925 | CONNECTOR (6-pin, used on A, B, C, D, E, F, G, I) | 1 | |
| 44-5600 | CONNECTOR (6-pin, used on H) | 1 | ||
| 5 | 44-5718 | CONNECTOR (8-pin, used on A, B, C, D, F, H, I) | 1 | |
| 6 | 44-6451 | CONNECTOR (1-pin, used on A, B, C) | 1 | |
| 44-5219 | CONNECTOR (2-pin, used on A, B, C, I) | 1 | ||
| 7 | 44-6462 | SOCKET - light (used on C, G, H) | 1 | |
| 44-7054 | TERMINAL - bulb | 2 | ||
| 8 | 99-9430 | BRACKET - relay (Fuelsaver used on C, D, H) | 1 | |
| 9 | 99-2027 | SPRING - holddown (used on C, D, H) | A/R | |
| 55-2648 | RIVET - spring & socket (used on C) | A/R | ||
| 55-2270 | RIVET - spring & socket (used on D, H) | A/R | ||
| 10 | 99-2771 | CLAMP - relay (used on C, D, H) | A/R | |
| 11 | 44-3184 | SOCKET - relay | A/R | |
| 12 | 44-8679 | TIMER - solid state (used on A) | 1 | |
|
10-44-8679 | Таймер | 18 450 ₽ |
|
| 13 | 55-5279 | SCREW - timer (used on A) | 1 | |
| 55-3474 | FLATWASHER | 1 | ||
| 55-3557 | LOCKWASHER | 1 | ||
| 55-2930 | NUT | 1 | ||
| 14 | 55-3443 | SCREW - relay bracket | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2990 | NUT | 2 | ||
| 15 | 99-9430 | BRACKET - relay (used on D, F, G) | 1 | |
| 16 | 44-5763 | DIODE - silicone (used on D, E, F, G) | 2 | |
| 17 | 99-9360 | BRACKET - Fuelsaver | 1 | |
| 18 | 44-9111 | RELAY - mini | 1 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 19 | 41-895 | RELAY - mini | A/R | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 20 | 44-3186 | RELAY - plug-in | A/R | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 21 | 44-3711 | BULB - light | 1 | |
| 22 | 55-5757 | SCREW - bracket to thermostat | 4 | |
| 55-2202 | LOCKWASHER | 4 | ||
| 23 | 99-2223 | SPACER - bracket | 4 | |
| 24 | 45-1565 | THERMOSTAT - TG IV | 1 | |
| 45-1579 | THERMOSTAT - TG V | 1 |
