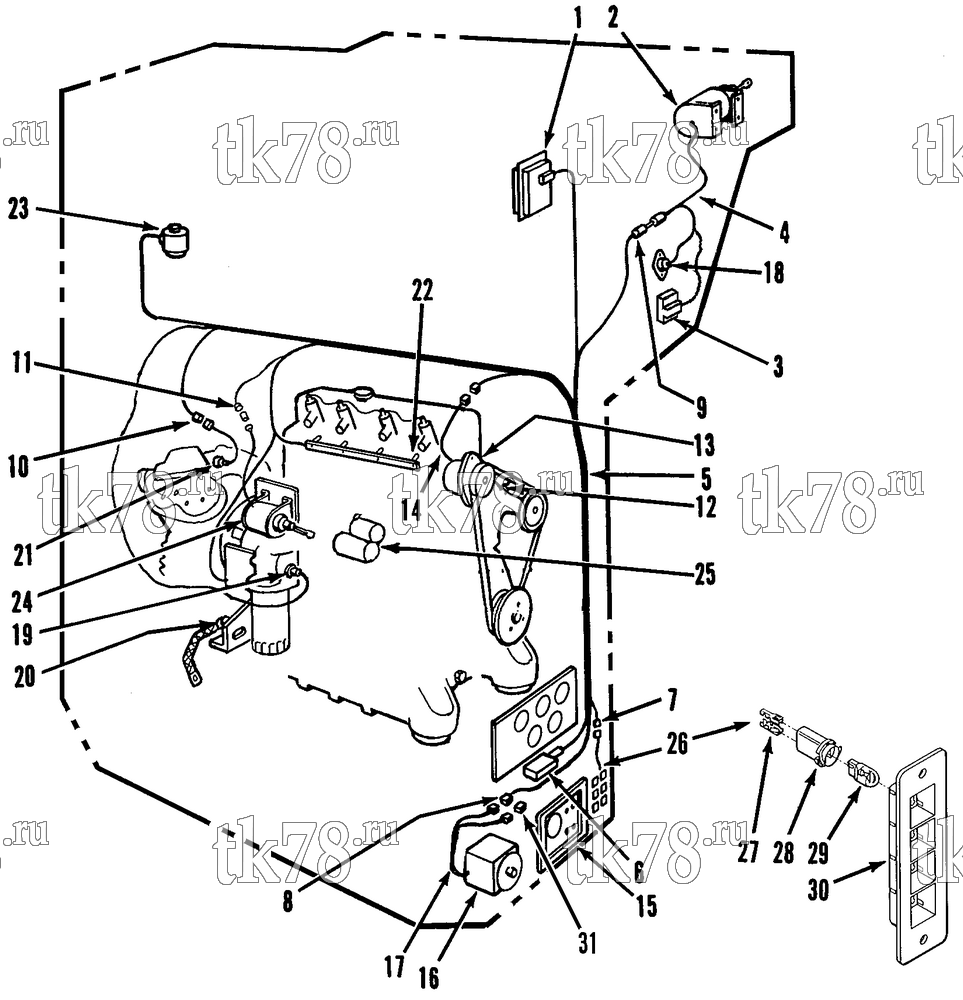

Установкa Thermo King Sentry MAX w/di 2.2 Engine схема ELECTRICAL COMPONENTS (SENTRY 30) – 88A8
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-6242 | SWITCH - air (see 59B11) | 1 | |
|
10-44-6242 | Переключатель воздуха | 7 170 ₽ |
|
| 2 | 44-2823 | SOLENOID | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 640 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 3 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 99-6349 | PLATE - switch | 1 | ||
| 55-4507 | SCREW - switch | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 4 | 44-6198 | HARNESS - evaporator | 1 | |
| 44-5224 | CONNECTOR | 1 | ||
| 5 | 44-6721 | HARNESS - main | 1 | |
| 6 | 44-5214 | SOCKET (12-pin) | 1 | |
| 44-5220 | COVER - socket | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 7 | 44-4925 | CONNECTOR - remote lights | 1 | |
| 8 | 44-5030 | CONNECTOR - thermostat | 1 | |
| 9 | 44-5218 | CONNECTOR - evaporator section | 1 | |
| 10 | 44-5219 | CONNECTOR - hpco switch | 1 | |
| 11 | 44-5767 | HOLDER - fuse | 1 | |
| 44-2590 | FUSE (10 amp) | 1 | ||
| 33-1661 | GROMMET | 1 | ||
| 12 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 330 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 13 | 41-2195 | ALTERNATOR (37 amp, model EA) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 14 | 44-9041 | HARNESS - alternator | 1 | |
|
10-44-9041 | Проводка генератора | 6 920 ₽ |
|
| 15 | 45-252 | PANEL - switch (see 67D7) | 1 | |
| 16 | 45-1565 | THERMOSTAT - TG IV | 1 | |
| 44-5234 | SENSOR | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-5699 | SCREW - thermostat & cover | 3 | ||
| 99-5635 | COVER - thermostat | 1 | ||
| 33-1368 | GASKET - cover | 1 | ||
| 99-6484 | BRACKET - thermo bulb | 1 | ||
| 55-3484 | CLAMP (0.312 dia) | 2 | ||
| 55-547 | CLAMP (0.375 dia) | 1 | ||
| 55-101 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 17 | 44-9944 | HARNESS - thermostat | 1 | |
| 44-7279 | HARNESS - thermostat (Fuelsaver) | 1 | ||
| 18 | 44-7892 | SWITCH - temperature | 1 | |
| 19 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 20 | 44-7997 | TERMINAL - insulator (see 16D2) | 1 | |
| 21 | 44-5305 | SWITCH - hpco (R12, convertible) | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 44-5508 | SWITCH - hpco (R502, convertible) | 1 | ||
|
10-44-5508 | Выключатель высокого давления (R502) | 8 490 ₽ |
|
| 22 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 44-6602 | CONNECTOR | 1 | ||
| 23 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 24 | 44-6544 | SOLENOID - engine | 1 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 25 | 45-2325 | STARTER | 1 | |
| 26 | 44-7305 | HARNESS - indicator light | 1 | |
| 44-5030 | CONNECTOR - main harness (6-pin, male) | 1 | ||
| 44-5719 | CONNECTOR - remote indicator lights (8-pin) | 1 | ||
| 27 | 44-7054 | TERMINAL - bulb | 6 | |
| 28 | 44-6462 | SOCKET - light | 3 | |
| 29 | 44-3711 | BULB - light | 3 | |
| 30 | 99-9564 | HOUSING - light | 1 | |
| 55-3511 | SCREW - housing | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2990 | NUT | 2 | ||
| 99-8707 | NAMEPLATE - switch & light (w/o hole for Cycle Sentry switch) | 1 | ||
| 99-8810 | NAMEPLATE - switch & light (w/ Cycle Sentry) | 1 | ||
| 31 | 44-8889 | HARNESS - jumper (units w/o C/S) | 1 |
