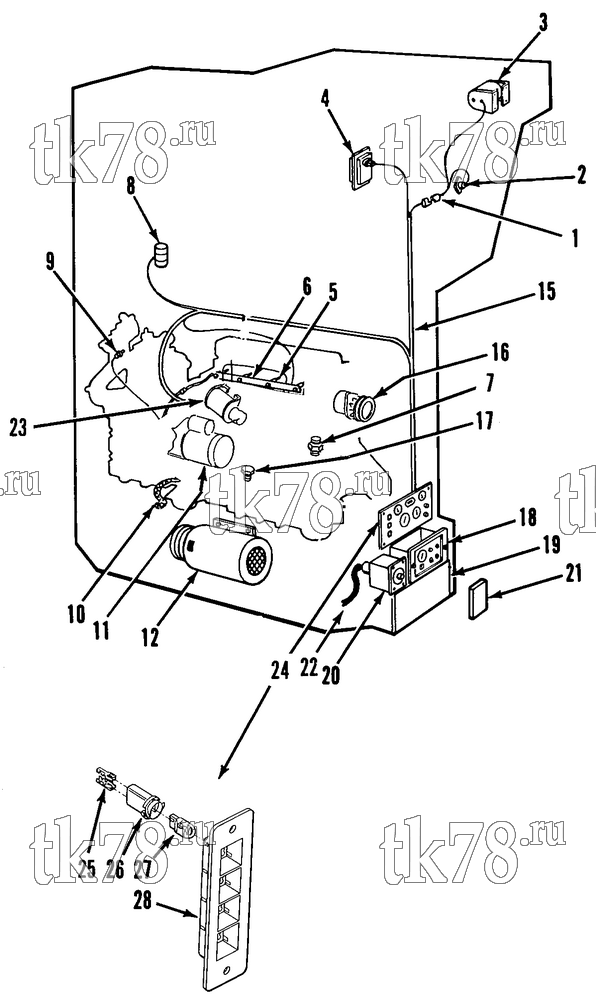

Установкa Thermo King Sentry MAX w/di 2.2 Engine схема ELECTRICAL COMPONENTS (PE) – 88A11
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-5224 | CONNECTOR | 1 | |
| 2 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 99-6349 | PLATE - switch | 1 | ||
| 55-4507 | SCREW - switch | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 3 | 44-2823 | SOLENOID | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 4 | 44-6241 | SWITCH - air (see 59B11) | 1 | |
| 5 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 6 | 44-6602 | CONNECTOR - glow plug | 1 | |
| 7 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 8 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 9 | 44-5508 | SWITCH - hpco | 1 | |
|
10-44-5508 | Выключатель высокого давления (R502) | 8 490 ₽ |
|
| 10 | 44-6014 | CABLE - ground | 1 | |
| 11 | 45-2325 | STARTER | 1 | |
| 12 | 104-431 | ALTERNATOR (see 92A4) | 1 | |
| 13 | Not Used | |||
| 14 | Not Used | |||
| 15 | 44-6721 | HARNESS - main | 1 | |
| 44-5767 | HOLDER - fuse | 1 | ||
| 44-2590 | FUSE (10 amp) | 1 | ||
| 44-5214 | SOCKET (12-pin, 10 amp) | 1 | ||
| 44-5220 | COVER - socket | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 44-5622 | CONNECTOR - accessory (6-pin) | 1 | ||
| 44-5030 | CONNECTOR - thermostat (6-pin) | 1 | ||
| 44-5218 | CONNECTOR - evaporator (4-pin) | 1 | ||
| 44-5219 | CONNECTOR - hpco switch (2-pin) | 1 | ||
| 44-4925 | CONNECTOR - indicator light | 1 | ||
| 33-1661 | GROMMET - main harness | 1 | ||
| 33-316 | GROMMET (1 id) | 1 | ||
| 16 | 44-9753 | ALTERNATOR (65 amp, model EA, see 77F12) | 1 | |
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
| 41-2197 | ALTERNATOR (65 amp, model 8MR) | 1 | ||
|
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
| 17 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 18 | 45-252 | PANEL - switch (see 67D6) | 1 | |
| 19 | 99-7741 | COVER - switch | 1 | |
| 44-5534 | BOARD - terminal | 1 | ||
| 44-5615 | HOLDER - fuse | 1 | ||
| 44-5616 | FUSE (20 amp) | 3 | ||
| 44-4835 | CONNECTOR - cable (1/2 id) | 1 | ||
| 55-9129 | CONNECTOR - cable (3/4 id) | 1 | ||
| 99-5134 | NAMEPLATE - Indicator Lights (w/ Cycle Sentry & Fuelsaver) | 1 | ||
| 55-2979 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 20 | 45-1404 | THERMOSTAT - TG IV | 1 | |
| 91-8691 | DIAL - thermostat | 1 | ||
| 44-6018 | THERMOSTAT - temperature | 1 | ||
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
|
| 55-547 | CLAMP - thermo bulb | 3 | ||
| 55-2991 | SCREW - clamp | 3 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 21 | 99-5635 | COVER - thermostat | 1 | |
| 33-1368 | GASKET - cover | 1 | ||
| 55-2263 | SCREW - cover | 3 | ||
| 22 | 44-8120 | HARNESS - thermostat & breakers circuit | 1 | |
| 44-4925 | CONNECTOR - electric | 1 | ||
| 44-5537 | SOCKET - relay | 1 | ||
| 44-9111 | RELAY | 1 | ||
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 44-6723 | HARNESS - circuit breaker | 1 | ||
| 44-5512 | BREAKER - circuit (manual reset, 19 amp) | 1 | ||
|
10-44-5512 | Автоматический выключатель, 30A | 2 260 ₽ |
|
| 44-6726 | BREAKER - circuit (auto reset, 30 amp) | 1 | ||
| 23 | 44-6544 | SOLENOID - throttle | 1 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 44-2756 | DIODE - rectifier | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 44-7096 | HARNESS - ground | 1 | ||
| 24 | 44-7305 | HARNESS - indicator light | 1 | |
| 44-5030 | CONNECTOR (6-pin) | 1 | ||
| 25 | 44-7054 | TERMINAL - bulb | 6 | |
| 26 | 44-6462 | SOCKET - light | 3 | |
| 27 | 44-3711 | BULB - light | 3 | |
| 28 | 99-9564 | HOUSING - light | 1 | |
| 55-3511 | SCREW - housing | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2990 | NUT | 2 |
