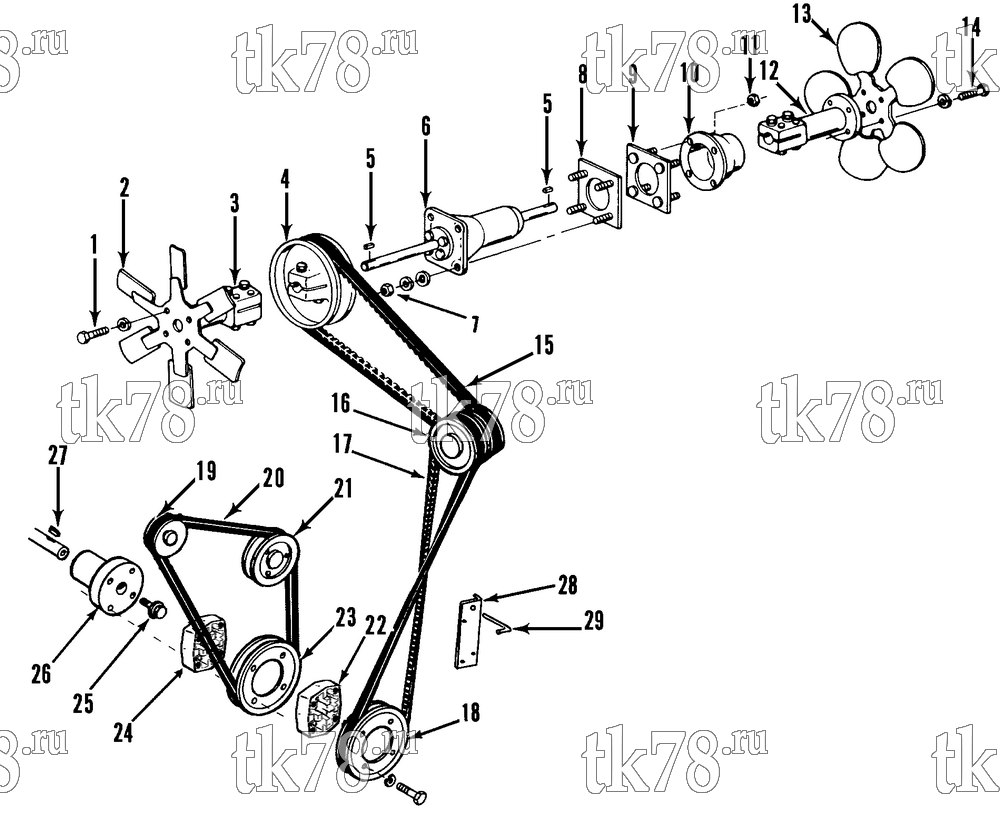

Установкa Thermo King Sentry MAX w/di 2.2 Engine схема BELTS, PULLEYS & FAN GROUP – 86G10
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-2969 | SCREW - fan to hub | 4 | |
| 55-421 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 2 | 78-559 | FAN - condenser | 1 | |
| 3 | 77-1046 | HUB | 1 | |
| 55-153 | SCREW - hub to shaft | 4 | ||
| 55-421 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 4 | 77-1467 | PULLEY - fan drive | 1 | |
| 55-153 | SCREW - pulley | 2 | ||
| 55-421 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 5 | 55-457 | KEY | 3 | |
| 6 | 78-413 | FANSHAFT - assembly (see 20B7) | 1 | |
| 7 | 55-5078 | NUT - housing | 4 | |
| 55-375 | LOCKWASHER | 4 | ||
| 55-402 | FLATWASHER | 4 | ||
| 8 | 99-3261 | BOLTPLATE - condenser | 1 | |
| 9 | 99-3269 | BOLTPLATE - evaporator | 1 | |
| 10 | 99-3371 | SUPPORT - shaft housing | 1 | |
| 11 | 55-5078 | NUT - support | 4 | |
| 12 | 77-1046 | HUB - fan | 1 | |
| 55-139 | SCREW - hub to shaft | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-421 | LOCKWASHER | 4 | ||
| 13 | 78-457 | FAN - evaporator | 1 | |
| 14 | 55-141 | SCREW - fan to hub | 4 | |
| 55-421 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 15 | 78-666 | BELT - fan drive | 1 | |
| 10-78-666 | Ремень вентилятора (X430 компрессор), Sentry | 2 590 ₽ |
|
|
| 16 | 77-1808 | PULLEY - idler (see 96B9) | 1 | |
| 17 | 78-757 | BELT - engine to idler | 1 | |
| 10-78-757 | Ремень, SENTRY | 3 960 ₽ |
|
|
| 78-758 | BELT - engine to idler (1 in shorter than 78-757) | 1 | ||
| 10-78-758 | Ремень, SENTRY | 3 900 ₽ |
|
|
| 18 | 77-1370 | PULLEY - crankshaft | 1 | |
| 55-5575 | SCREW - pulley | 4 | ||
| 55-5411 | LOCKWASHER | 4 | ||
| 19 | 77-762 | PULLEY - alternator | 1 | |
| 20 | 78-751 | BELT - alternator & water pump (for 37 amp alternator, see 77F10) | 1 | |
| 10-78-751 | Ремень генератора, SB-II/III | 2 340 ₽ |
|
|
| PP-78-751 | Ремень генератора, SB-II/III | 1 890 ₽ |
|
|
| 78-471 | BELT - alternator & water pump (for 65 amp alternator, see 77F10) | 1 | ||
| 10-78-471 | Ремень генератора и водяной помпы, SB-I/II | 1 840 ₽ |
|
|
| PP-78-471 | Ремень генератора и водяной помпы, SB-I/II | 960 ₽ |
|
|
| 21 | 77-1345 | PULLEY - water pump | 1 | |
| 77-1346 | SPACER - pulley | 1 | ||
| 55-4998 | SCREW - pulley | 3 | ||
| 55-371 | FLATWASHER | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 22 | 77-1708 | SPACER - pulley (1.20 thk) | 1 | |
| 23 | 77-1369 | PULLEY - crankshaft | 1 | |
| 24 | 77-1665 | SPACER - pulley (1.05 thk) | 1 | |
| 25 | 10-256 | KIT - bolt (pulley boss) | 1 | |
| 11-5465 | WASHER | 1 | ||
| 26 | 77-1366 | BOSS - pulley | 1 | |
|
10-77-1366 | Шкив, Isuzu C-201 | 9 100 ₽ |
|
| 27 | 55-1933 | KEY - boss | 1 | |
| 28 | 90-127 | BRACKET - belt guide | 1 | |
| 29 | 99-8635 | ROD - belt guide | 1 | |
| 55-289 | NUT - rod | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 |
