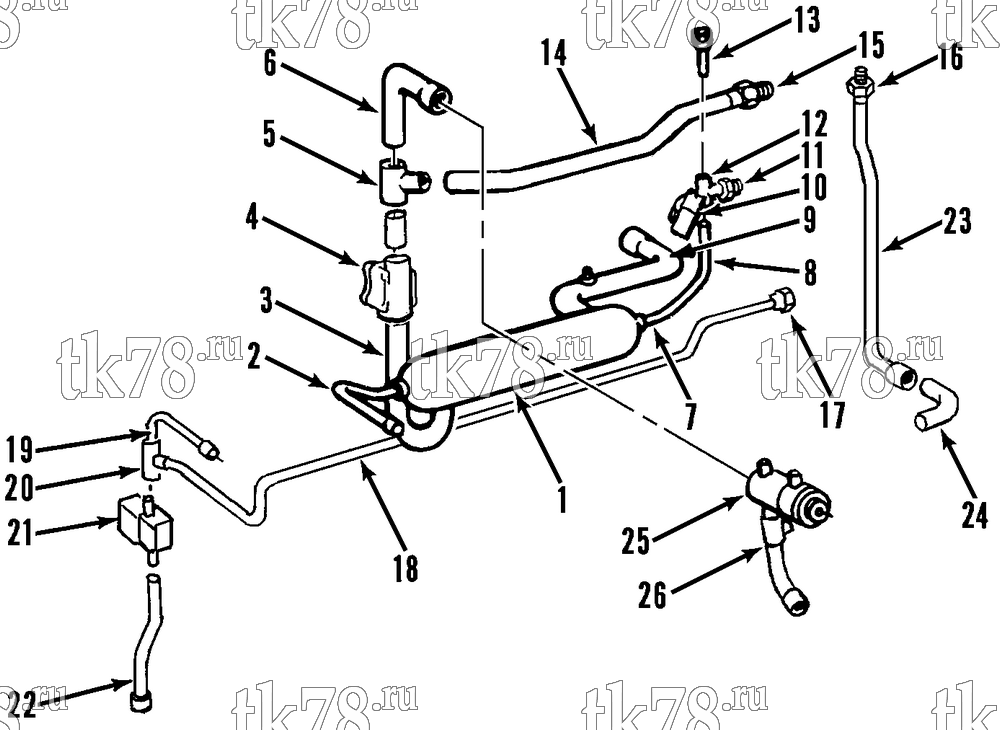

Установкa Thermo King Sentry MAX w/di 2.2 Engine схема REFRIGERATION HOOKUP FOR TC – 78E14
Обновление от: 2/6/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1097 | TANK - heat exchanger | 1 | |
| 99-9555 | INSULATION - heat exchanger | 1 | ||
| 2 | 66-3225 | TUBE - liquid line | 1 | |
| 3 | 66-4672 | TUBE - suction | 1 | |
| 4 | 66-4594 | VALVE - check | 1 | |
| 60-229 | KIT - spring & seat | 1 | ||
| 33-1941 | GASKET | 1 | ||
| 66-5085 | CAP - valve | 1 | ||
| 55-6293 | SCREW - cap | 4 | ||
| 5 | 55-3945 | TEE | 1 | |
| 6 | 66-4673 | TUBE - tee to bulkhead | 1 | |
| 7 | 55-1464 | ELBOW | 1 | |
| 8 | 66-4671 | TUBE - valve to exchanger | 1 | |
| 9 | 66-3222 | TUBE - coil to exchanger | 1 | |
| 66-874 | FITTING - equalizer | 1 | ||
| 10 | 66-8464 | VALVE - solenoid (see 138A2) | 1 | |
| 60-230 | KIT - diaphram | 1 | ||
| 60-231 | KIT - coil & tube | 1 | ||
| 11 | 55-4131 | ADAPTER (TC liquid) | 1 | |
| 12 | 55-2296 | TEE | 1 | |
| 13 | 66-6975 | TUBE - tee to expansion valve | 1 | |
| 14 | 66-4675 | TUBE - suction | 1 | |
| 55-1122 | ELBOW | 1 | ||
| 15 | 55-4274 | ADAPTER - suction | 1 | |
| 16 | 55-4131 | ADAPTER - hot gas | 1 | |
| 17 | 55-4136 | ADAPTER - defrost | 1 | |
| 18 | 66-4677 | TUBE - tee to remote unit | 1 | |
| 19 | 66-4674 | TUBE - tee to defrost tube | 1 | |
| 55-1118 | CLAMP - tube | 1 | ||
| 20 | 55-2181 | TEE | 1 | |
| 21 | 66-4637 | VALVE - solenoid (defrost, see 138A1) | 1 | |
| 55-2182 | BUSHING (5/8 ftg x 1/2 sld) | 1 | ||
| 22 | 66-4676 | TUBE - defrost to valve | 1 | |
| 23 | 66-4409 | TUBE - hot gas | 1 | |
| 24 | 66-4410 | TUBE - hot gas | 1 | |
| 25 | 66-4974 | VALVE - 3-way (see 72A2) | 1 | |
| 26 | 66-1781 | TUBE | 1 |
