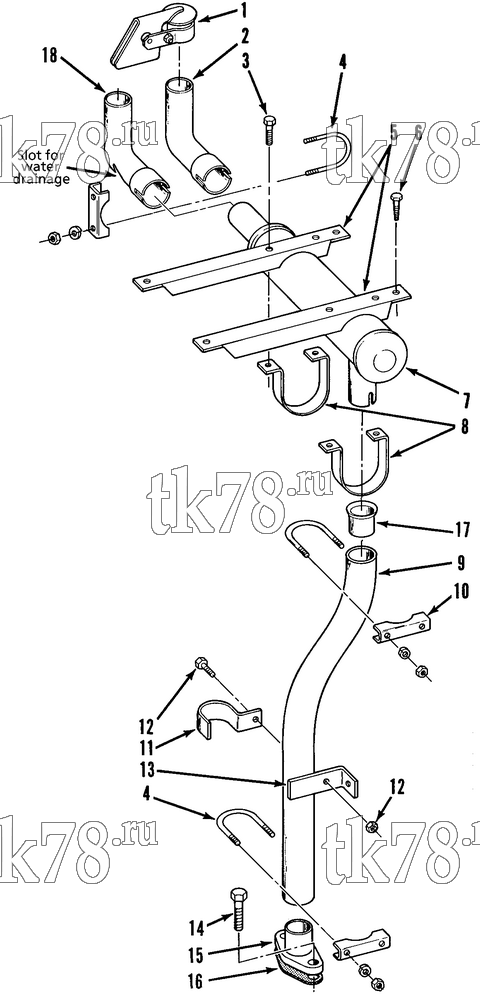

Установкa Thermo King Sentry MAX w/di 2.2 Engine схема MUFFLER GROUP – 59A4
Обновление от: 3/20/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-2916 | CAP - rain | 1 | |
| 2 | 11-4834 | TUBE - exhaust (requires a rain cap) | 1 | |
| 3 | 55-2963 | SCREW - clamp | 4 | |
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 4 | 99-1514 | CLAMP - U (muffler, 2-1/8 id) | 2 | |
| 5 | 99-3259 | BRACKET - muffler | 2 | |
| 6 | 55-5046 | SCREW - bracket | 4 | |
| 7 | 12-357 | MUFFLER (2.23 id inlet tube, steel) | 1 | |
| 12-422 | MUFFLER - stainless steel | 1 | ||
| 8 | 99-3639 | CLAMP - muffler | 2 | |
| 9 | 12-313 | HOSE - bulk (cut to 29.0 in) | 1 | |
| 10 | 99-3889 | U-CLAMP - muffler (2-3/8 id) | 1 | |
| 11 | 55-3590 | CLAMP - hose | 1 | |
| 12 | 55-141 | SCREW - clamp | 1 | |
| 55-371 | FLATWASHER | 1 | ||
| 55-4967 | NUT | 1 | ||
| 13 | 99-7256 | BRACKET - clamp | 1 | |
| 14 | 55-5658 | SCREW - flange | 2 | |
| 55-421 | LOCKWASHER | 2 | ||
| 55-4967 | NUT | 2 | ||
| 15 | 11-4439 | FLANGE - exhaust | 1 | |
| 16 | 33-2113 | GASKET - flange | 1 | |
|
10-33-2113 | Прокладка выхлопной системы, Isuzu C-201 | 1 040 ₽ |
|
| 17 | 11-5322 | SLEEVE - exhaust | 1 | |
| 18 | 11-5757 | TUBE - exhaust (does not require a rain cap) | 1 |
