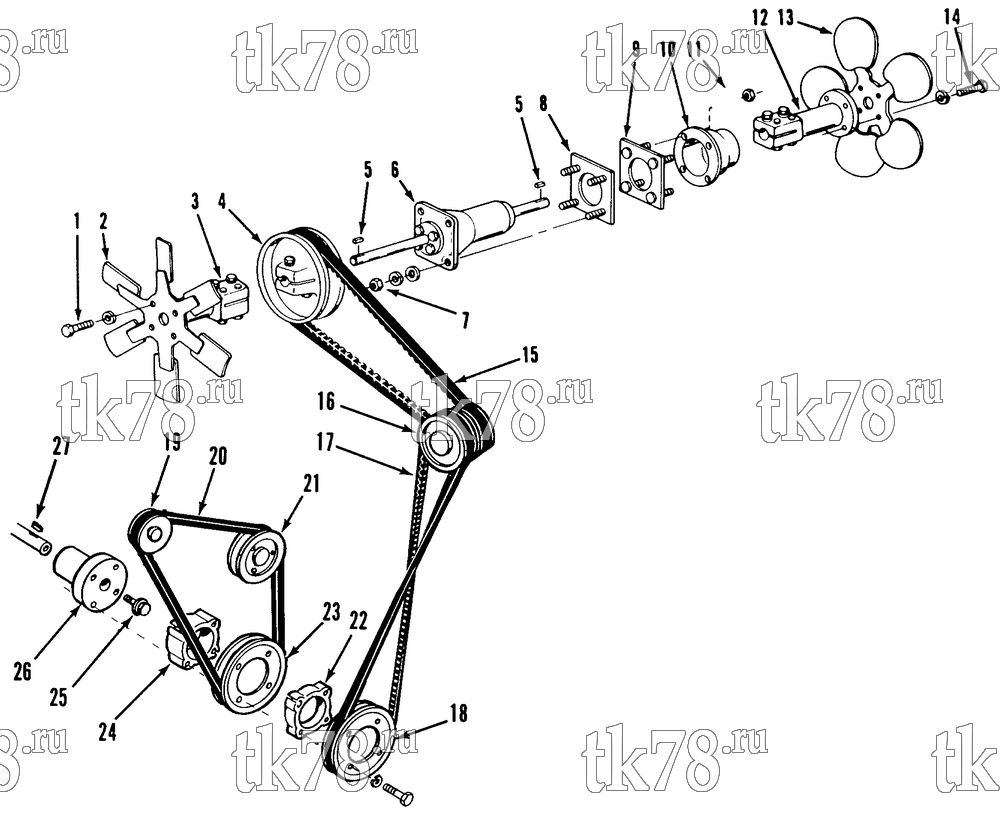

Установкa Thermo King Sentry 30 & 50 1000, 1200, 2000 w/C201 Engine схема BELTS, PULLEYS & FAN GROUP – 68F2
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-141 | SCREW | 4 | |
| 55-421 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 2 | 78-548 | FAN - condenser (units w/ X426) | 1 | |
| 78-559 | FAN - condenser (units w/ X430) | 1 | ||
| 3 | 77-1046 | HUB | 1 | |
| 55-139 | SCREW | 4 | ||
| 55-421 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 4 | 77-1463 | PULLEY - condenser fan (units w/ X426) | 1 | |
| 77-1467 | PULLEY - condenser fan (units w/ X430) | 1 | ||
| 55-139 | SCREW | 2 | ||
| 55-421 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 5 | 55-457 | KEY | 2 | |
| 6 | 78-413 | FANSHAFT - assembly (see 20B7) | 1 | |
| 7 | 55-5078 | NUT | 4 | |
| 55-375 | LOCKWASHER | 4 | ||
| 55-402 | FLATWASHER | 4 | ||
| 8 | 99-8405 | BOLTPLATE - condenser | 1 | |
| 9 | 99-3269 | BOLTPLATE - evaporator | 1 | |
| 10 | 99-3371 | SUPPORT - fan housing bearing | 1 | |
| 11 | 55-2640 | NUT | 4 | |
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 12 | 77-1046 | HUB | 1 | |
| 55-139 | SCREW | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-421 | LOCKWASHER | 4 | ||
| 13 | 78-457 | FAN - evaporator | 1 | |
| 14 | 55-141 | SCREW | 4 | |
| 55-421 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 15 | 78-556 | BELT - fan | 1 | |
| 78-666 | BELT - fan (HPO) | 1 | ||
| 10-78-666 | Ремень вентилятора (X430 компрессор), Sentry | 2 590 ₽ |
|
|
| 16 | 77-1808 | PULLEY - idler (see 68G10) | 1 | |
| 17 | 78-757 | BELT - engine to idler | 1 | |
| 10-78-757 | Ремень, SENTRY | 3 960 ₽ |
|
|
| 78-758 | BELT - engine to idler (1 in shorter than 78-757) | 1 | ||
| 10-78-758 | Ремень, SENTRY | 3 900 ₽ |
|
|
| 18 | 77-1370 | PULLEY | 1 | |
| 55-926 | SCREW | 4 | ||
| 55-416 | LOCKWASHER | 4 | ||
| 19 | 44-6126 | ALTERNATOR (see 59B12) | 1 | |
| 20 | 78-194 | BELT - alternator | 1 | |
| 21 | 77-1345 | PULLEY - water pump | 1 | |
| 77-1346 | SPACER - pulley | 1 | ||
| 55-141 | SCREW | 3 | ||
| 55-371 | FLATWASHER | 3 | ||
| 55-421 | LOCKWASHER | 3 | ||
| 22 | 77-1708 | SPACER - pulley (1.20 thk) | 1 | |
| 23 | 77-1369 | PULLEY | 1 | |
| 24 | 77-1709 | SPACER - pulley (1.38 thk) | 1 | |
| 25 | 10-256 | KIT - bolt (pulley boss) | 1 | |
| 11-5465 | WASHER | 1 | ||
| 26 | 77-1366 | BOSS - pulley | 1 | |
|
10-77-1366 | Шкив, Isuzu C-201 | 9 100 ₽ |
|
| 27 | 55-1933 | KEY | 1 |
