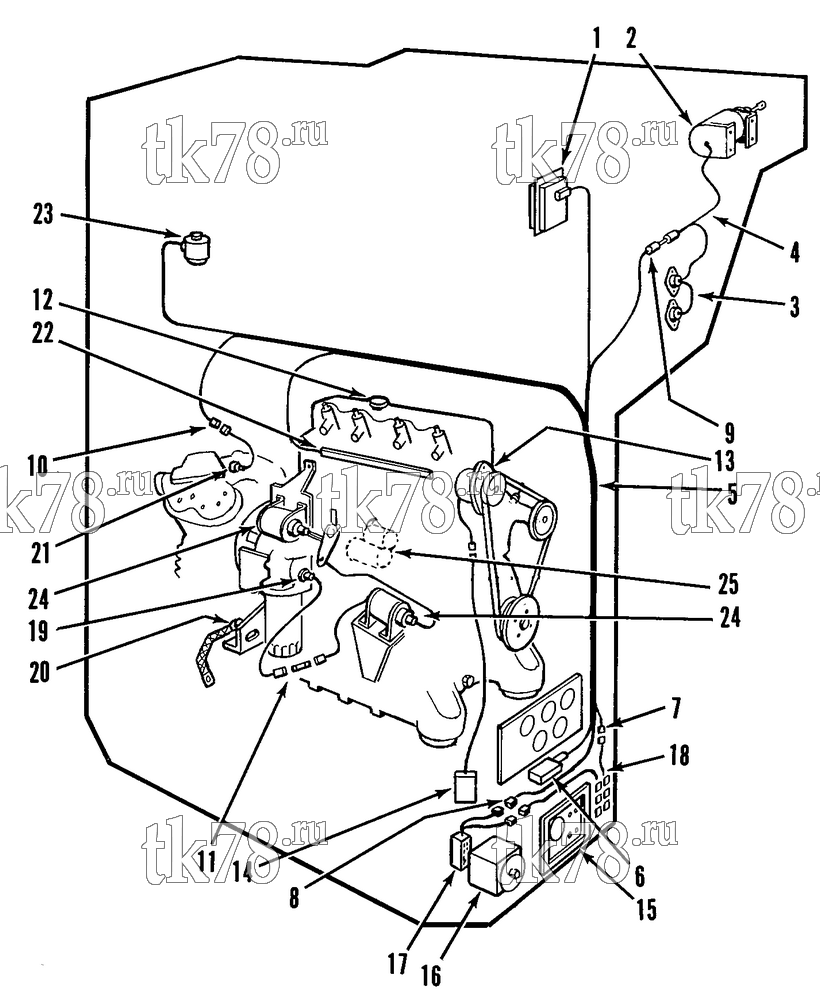

Установкa Thermo King Sentry 30 & 50 1000, 1200, 2000 w/C201 Engine схема ELECTRICAL COMPONENTS (30s) – 59B7
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-3474 | SWITCH - air (X426 units) | 1 | |
|
10-44-3474 | Переключатель воздуха | 7 150 ₽ |
|
| 44-6242 | SWITCH - air (X430 units) | 1 | ||
|
10-44-6242 | Переключатель воздуха | 7 170 ₽ |
|
| 2 | 44-2823 | SOLENOID | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 3 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 4 | 44-6198 | HARNESS - evaporator | 1 | |
| 5 | 44-5565 | HARNESS - main | 1 | |
| 6 | 44-5214 | SOCKET (12-pin) | 1 | |
| 44-5220 | COVER - socket | 1 | ||
| 7 | 44-4925 | CONNECTOR - remote lights | 1 | |
| 8 | 44-5030 | CONNECTOR - thermostat | 1 | |
| 9 | 44-5218 | CONNECTOR - evaporator section | 1 | |
| 44-5224 | CONNECTOR | 1 | ||
| 10 | 44-5219 | CONNECTOR - hpco switch | 1 | |
| 11 | 44-5767 | HOLDER - fuse | 1 | |
| 44-2590 | FUSE (10 amp) | 1 | ||
| 33-1661 | GROMMET | 1 | ||
| 12 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 13 | 44-6126 | ALTERNATOR (12 amp, see 59B12) | 1 | |
| 14 | 44-6127 | REGULATOR - voltage | 1 | |
| 15 | 45-252 | PANEL - switch | 1 | |
| 16 | 45-1564 | THERMOSTAT | 1 | |
| 55-2263 | SCREW - thermostat | 3 | ||
| 99-5635 | COVER - thermostat | 1 | ||
| 33-1363 | GASKET - cover | 1 | ||
| 55-1049 | SCREW - cover | 3 | ||
| 55-431 | FLATWASHER | 6 | ||
| 55-1511 | LOCKWASHER | 3 | ||
| 55-5292 | NUT | 3 | ||
| 99-6484 | BRACKET - thermo bulb | 1 | ||
| 55-3484 | CLAMP (0.312 dia) | 2 | ||
| 55-547 | CLAMP (0.375 dia) | 1 | ||
| 55-101 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 17 | 44-6011 | HARNESS - thermostat (TG, Sentry 1000) | 1 | |
| 44-5310 | CONNECTOR (15-pin) | 1 | ||
| 44-4925 | CONNECTOR (6-pin, male) | 1 | ||
| 55-5219 | CONNECTOR (6-pin, female) | 1 | ||
| 44-5566 | HARNESS - thermostat (TG, Sentry 1200) | 1 | ||
| 18 | 44-5217 | HARNESS - indicator light | 1 | |
| 44-5030 | CONNECTOR (6-pin, male) | 1 | ||
| 44-3035 | BULB - light | 3 | ||
| 99-8707 | NAMEPLATE - switch (w/ Cycle Sentry) | 1 | ||
| 99-8810 | NAMEPLATE - switch (w/o Cycle Sentry) | 1 | ||
| 19 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 20 | 44-4582 | TERMINAL - battery (see 16D2) | 1 | |
| 21 | 44-5305 | SWITCH - hpco (R12) | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 44-5508 | SWITCH - hpco (R502) | 1 | ||
|
10-44-5508 | Выключатель высокого давления (R502) | 8 490 ₽ |
|
| 22 | 44-2922 | GLOW PLUG | 4 | |
|
10-44-2922 | Свеча накаливания, Isuzu C201 | 1 510 ₽ |
|
| 23 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 24 | 44-6544 | SOLENOID - engine (see 63E10) | 2 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 25 | 845-1285 | STARTER | 1 |
