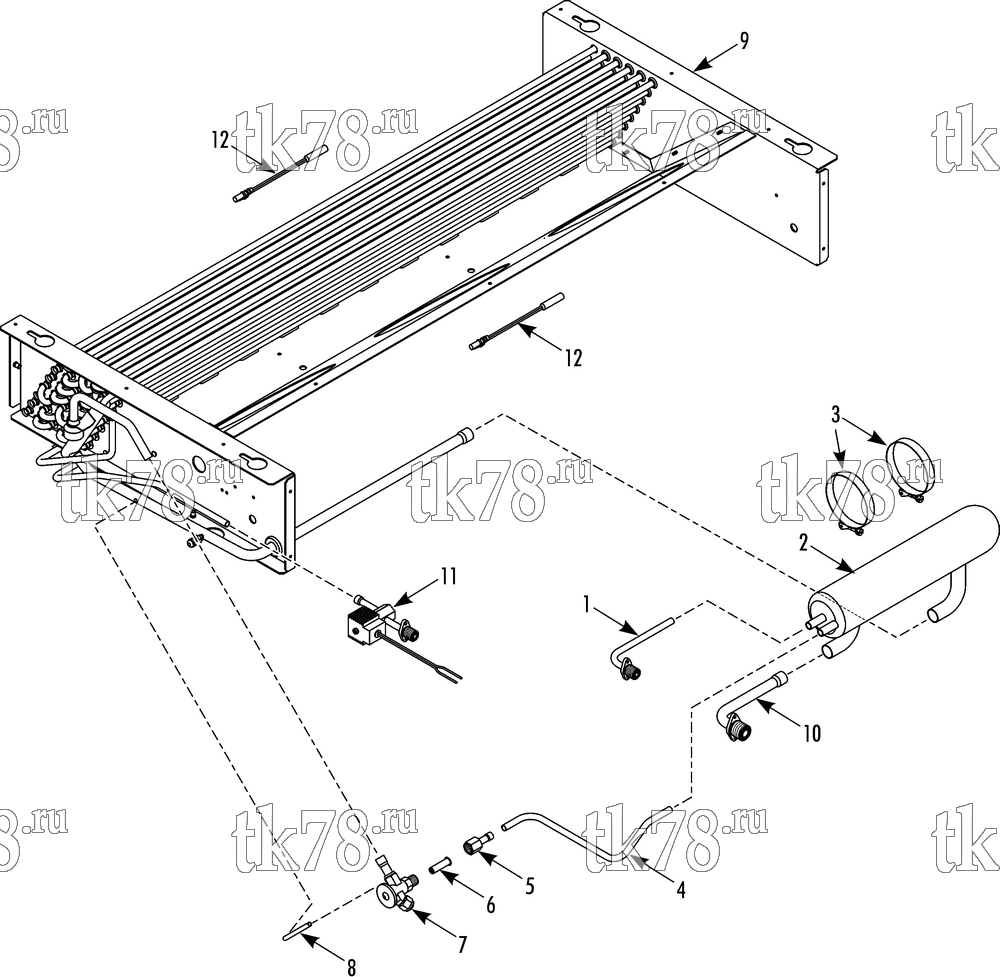

Установкa Thermo King SV-600 схема EVAPORATOR REFRIGERATION – 268B9
Обновление от: 3/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-6403 | Tube - liquid in to heat exchanger | 1 | |
| 2 | 67-2817 | HEAT EXCHANGER | 1 | |
| 3 | 55-2688 | CLAMP | 2 | |
| 4 | 61-6401 | TUBE - liquid out to adapter | 1 | |
| 5 | 61-6405 | ADAPTER | 1 | |
| 6 | 61-1126 | FILTER | 1 | |
| 7 | 61-6406 | VALVE - expansion | 1 | |
| 8 | 61-6402 | TUBE - balance, valve to coil | 1 | |
| 9 | 67-2816 | COIL - evaporator | 1 | |
| 10 | 61-6404 | TUBE - outlet | 1 | |
| 11 | 61-6413 | VALVE - defrost 12V | 1 | |
| 61-3192 | SOLENOID 12V | 1 | ||
| 61-6411 | VALVE - defrost 24V | 1 | ||
| 61-3387 | SOLENOID 24V | 1 | ||
| 12 | 41-8171 | SENSOR - temperature | 2 |
