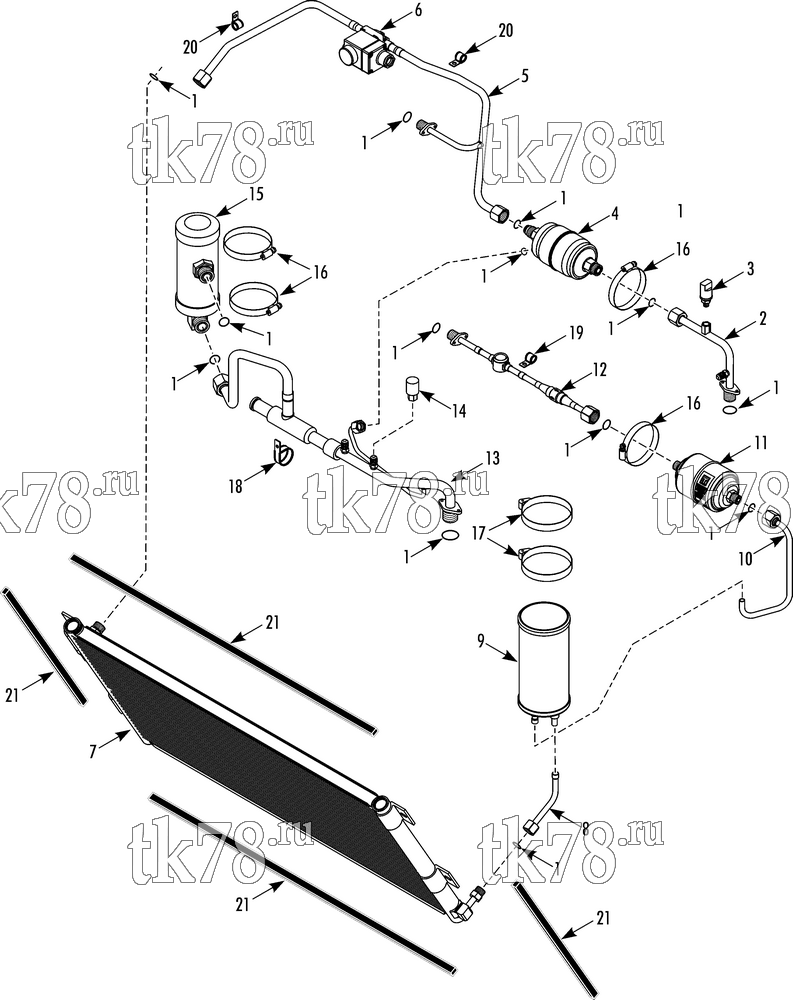

Установкa Thermo King SV-400 схема CONDENSER REFRIGERATION MAX 30 – 268B5
Обновление от: 3/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-1461 | O-RING (5/16 id) | 1 | |
| 33-1015 | O-RING (3/8 id) | 4 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 33-566 | O-RING (1/2 id) | 6 | ||
| 33-2115 | O-RING (5/8 id) | 3 | ||
| 2 | 61-6393 | TUBE - discharge | 1 | |
| 3 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 4 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 370 ₽ |
|
| 5 | 61-6399 | TUBE - discharge | 1 | |
| 66-9032 | VALVE - solenoid | 1 | ||
| 6 | 41-5047 | COIL - valve (12V) | 1 | |
| 41-5051 | COIL - valve (24V) | 1 | ||
| 7 | 67-2818 | COIL - condenser | 1 | |
| 55-7341 | SCREW - coil | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 8 | 61-6396 | TUBE - liquid, coil to receiver | 1 | |
| 9 | 67-2815 | TANK - receiver | 1 | |
| 10 | 61-6395 | TUBE - liquid, receiver to dehydrator | 1 | |
| 11 | 61-4676 | DEHYDRATOR | 1 | |
| 12 | 61-6398 | TUBE - sightglass and valve | 1 | |
| 66-5763 | VALVE - check | 1 | ||
| 66-7682 | SIGHTGLASS | 1 | ||
| 13 | 61-6400 | TUBE - suction | 1 | |
| 61-6418 | REGULATOR | 1 | ||
| 66-9842 | VALVE | 2 | ||
| 14 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 15 | 61-3126 | ACCUMULATOR | 1 | |
| 16 | 55-6225 | CLAMP - dehydrator, separator & accumulator | 4 | |
| 17 | 55-7800 | CLAMP - receiver tank | 2 | |
| 18 | 55-1823 | CLAMP - valve | 1 | |
| 19 | 55-2239 | CLAMP - sightglass | 1 | |
| 20 | 55-3065 | CLAMP | 2 | |
| 21 | 33-5080 | INSULATION - condenser | 2 |
