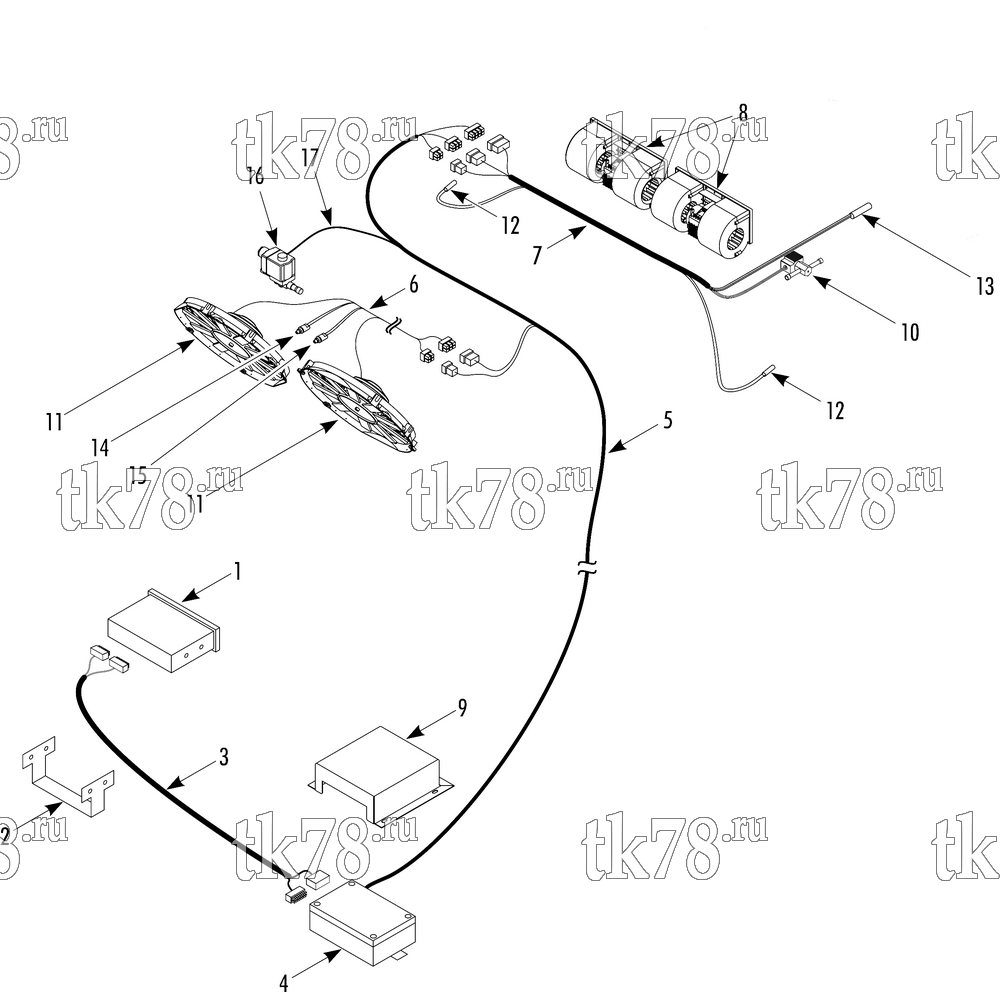

Установкa Thermo King SV-400 схема ELECTRICAL COMPONENTS – 268B3
Обновление от: 3/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8167 | CONTROLLER | 1 | |
| 2 | 92-5937 | BRACKET | 1 | |
| 3 | 42-933 | HARNESS - controller to relay box | 1 | |
| 4 | 41-8168 | BOX - relay (12V) | 1 | |
| 41-2978 | FUSE (20 amp 12V units) | 3 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 41-1259 | FUSE (25 amp 12V units) | 2 | ||
|
10-41-1259 | Предохранитель 25 ампер 10 шт | 1 860 ₽ |
|
| 41-8175 | BOX - relay (24V) | 1 | ||
| 44-9758 | FUSE (10 amp 24V units) | 3 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp 24V units) | 2 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 5 | 42-934 | HARNESS - main | 1 | |
| 6 | 41-8173 | HARNESS - condenser | 1 | |
| 7 | 41-9295 | HARNESS - evaporator | 1 | |
| 8 | 78-1730 | BLOWER - evaporator (24V) | 1 | |
| 78-1731 | BLOWER - evaporator (12V) | 1 | ||
| 9 | 93-742 | COVER - relay box | 1 | |
| 10 | 61-3192 | VALVE - defrost (evap, 12V) | 1 | |
| 61-3387 | VALVE - defrost (evap, 24V) | 1 | ||
| 11 | 78-1882 | FAN - condenser (12V) | 2 | |
| 78-1881 | FAN - condenser (24V) | 2 | ||
| 12 | 41-3155 | HEATER - evap drain (12V) | 2 | |
| 41-3156 | HEATER - evap drain (24V) | 2 | ||
| 13 | 41-8171 | SENSOR - temperature | 2 | |
| 14 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 15 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 16 | 41-5047 | COIL - valve (12V, MAX 30) | 1 | |
| 41-5051 | COIL - valve (24V, MAX 30) | 1 | ||
| 17 | 41-8553 | HARNESS - solenoid valve (MAX 30) | 1 |
