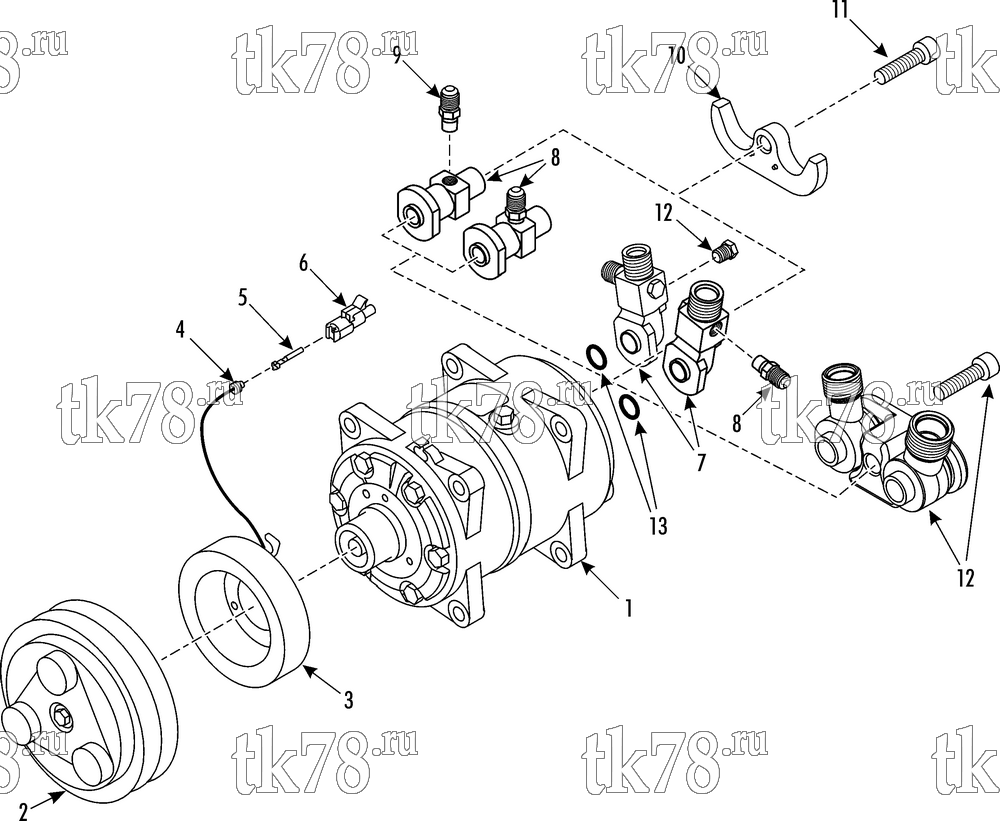

Установкa Thermo King SV-400 схема COMPRESSOR GROUP (QP16-XD) – 268B0
Обновление от: 3/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1082 | COMPRESSOR - QP16 XD (12V, clutch 107-241) | 1 | |
| 102-1083 | COMPRESSOR - QP16 XD (24V, clutch 107-242) | 1 | ||
| 102-1084 | COMPRESSOR - QP16 XD (12V, clutch 107-312) | 1 | ||
| 102-1085 | COMPRESSOR - QP16 XD (24V, clutch 107-313) | 1 | ||
| 102-1086 | COMPRESSOR - QP16 XD (12V, clutch 107-413) | 1 | ||
| 102-1087 | COMPRESSOR - QP16 XD (24V, clutch 107-414) | 1 | ||
| 102-1068 | COMPRESSOR - QP16 XD (less clutch) | 1 | ||
| 203-513 | OIL - compressor (ester solest 35, 1 liter) | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 22-1263 | FILTER - suction | 1 | ||
| 2 | 107-241 | CLUTCH (12V, 2A groove) | 1 | |
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 107-242 | CLUTCH (24V, 2A groove) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 107-312 | CLUTCH (12V, variable groove) | 1 | ||
| 107-313 | CLUTCH (24V, variable groove) | 1 | ||
| 107-413 | CLUTCH (12V, 165 mm, 2A groove) | 1 | ||
| 107-414 | CLUTCH (24V, 165 mm, 2A groove) | 1 | ||
| 3 | 41-593 | COIL (12V) | 1 | |
|
10-41-593 | Катушка муфты сцепления, 12 V | 8 120 ₽ |
|
| 41-594 | COIL (24V) | 1 | ||
|
10-41-594 | Катушка муфты сцепления, 24 V | 8 120 ₽ |
|
| 4 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 5 | 44-5884 | TERMINAL - female (18-20 ga) | 1 | |
| 6 | 44-8681 | SEAL - cable (red, 18-20 ga) | 1 | |
| 7 | 20-150 | KIT - manifold (elbow, w/o-ring fittings) | 1 | |
| 8 | 20-151 | KIT - manifold (straight, w/o-ring fittings) | 1 | |
| 9 | 11-2886 | VALVE - assembly | 2 | |
| 11-7777 | VALVE | 2 | ||
| 55-5672 | VALVE - cap | 2 | ||
| 10 | 22-1121 | BRACKET - manifold | 1 | |
| 11 | 55-8648 | SCREW | 1 | |
| 55-8537 | LOCKWASHER | 1 | ||
| 11 | 55-3364 | PLUG | 4 | |
| 12 | 20-193 | KIT - swivel manifold (incl manifold bracket & screw) | 1 | |
| 51-1652 | SCREW - manifold | 1 | ||
| 13 | 33-2882 | O-RING | 2 |
