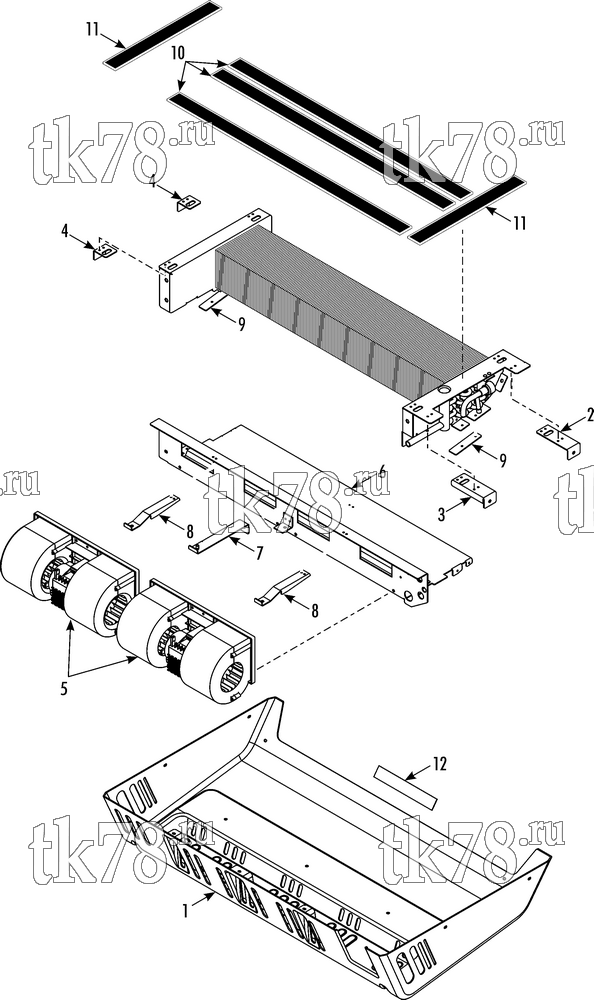

Установкa Thermo King SV-400 схема EVAPORATOR COVER AND BLOWERS – 242B4
Обновление от: 2/27/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8460 | COVER - evaporator | 1 | |
| 2 | 92-8231 | BRACKET | 1 | |
| 55-5130 | RIVET | 2 | ||
| 3 | 92-8232 | BRACKET | 1 | |
| 55-5130 | RIVET | 2 | ||
| 4 | 92-8233 | BRACKET | 2 | |
| 55-5130 | RIVET | 4 | ||
| 5 | 78-1731 | BLOWER - assembly (12V) | 2 | |
| 78-1730 | BLOWER - assembly (24V) | 2 | ||
| 55-7664 | SCREW | 10 | ||
| 55-7031 | LOCKWASHER | 10 | ||
| 55-7368 | FLATWASHER | 10 | ||
| 55-7866 | NUT - captive | 10 | ||
| 6 | 98-8461 | FRAME - evaporator | 1 | |
| 7 | 92-8234 | BRACKET | 1 | |
| 55-7407 | SCREW | 2 | ||
| 55-8375 | NUT - captive | 2 | ||
| 8 | 92-8213 | BRACKET | 2 | |
| 55-7407 | SCREW | 4 | ||
| 55-8375 | NUT - captive | 4 | ||
| 9 | 92-8235 | PLATE | 2 | |
| 55-5130 | RIVET | 4 | ||
| 10 | 33-4594 | INSULATION - foam | 3 | |
| 11 | 33-4595 | INSULATION - foam | 2 | |
| 12 | 92-8212 | NAMEPLATE - Thermo King | 1 |
