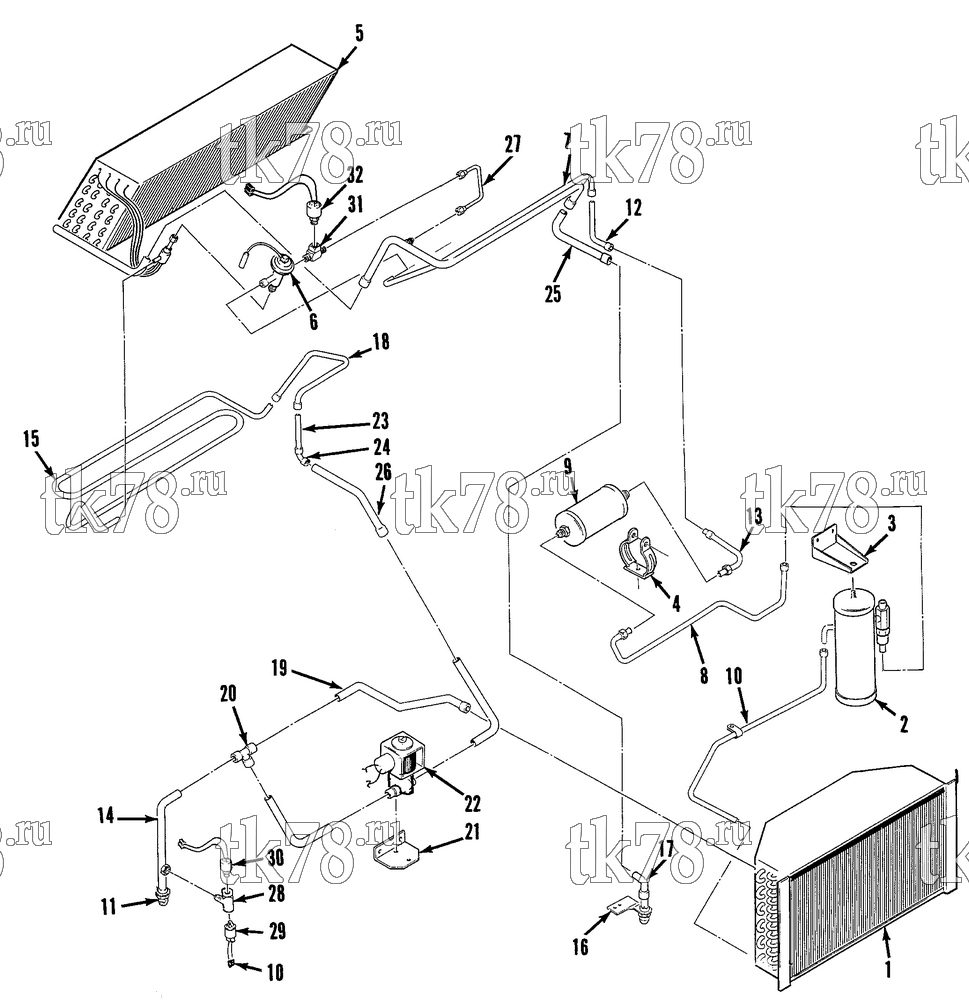

Установкa Thermo King STB-III схема REFRIGERATION COMPONENTS (STB-III 10D, 1 PIECE) – 83G2
Обновление от: 11/20/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-713 | COIL - condenser | 1 | |
| 55-4974 | NUT - captive | 8 | ||
| 55-145 | SCREW - coil | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-419 | LOCKWASHER | 4 | ||
| 2 | 67-871 | TANK - receiver | 1 | |
| 55-5078 | NUT - tank | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 3 | 91-397 | BRACKET - receiver tank | 1 | |
| 55-145 | SCREW - bracket | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 4 | 55-2192 | HANGER - dehydrator | 1 | |
| 99-4520 | STRIP (neoprene) | 2 | ||
| 55-195 | SCREW - hanger | 1 | ||
| 55-5664 | SCREW - dehydrator | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 5 | 67-714 | COIL - evaporator (see 83A14) | 1 | |
| 55-4526 | NUT - captive (10-32) | 2 | ||
| 55-3059 | NUT - captive (1/4-20) | 6 | ||
| 6 | 66-4074 | VALVE - expansion | 1 | |
| 7 | 67-719 | HEAT EXCHANGER | 1 | |
| 66-874 | FITTING - equalizer tube | 1 | ||
| 8 | 66-4859 | TUBE - receiver to dehydrator | 1 | |
| 9 | 66-4729 | DEHYDRATOR | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 10 | 66-4860 | TUBE - coil to receiver | 1 | |
| 11 | 55-3213 | ADAPTER - discharge | 1 | |
| 12 | 66-4856 | TUBE - dehydrator to evaporator | 1 | |
| 13 | 66-4863 | TUBE - dehydrator to evaporator | 1 | |
| 14 | 66-4433 | TUBE - adapter to solenoid | 1 | |
| 15 | 66-4079 | TUBE - defrost | 1 | |
| 16 | 66-4864 | PLATE - adapter | 1 | |
| 55-4274 | ADAPTER | 1 | ||
| 17 | 55-4489 | ELBOW (90) | 1 | |
| 18 | 66-4082 | TUBE - defrost | 1 | |
| 19 | 66-4132 | TUBE - tee to condenser coil | 1 | |
| 20 | 55-5678 | TEE | 1 | |
| 21 | 99-7816 | BRACKET - solenoid | 1 | |
| 55-145 | SCREW - bracket | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 22 | 66-3693 | VALVE - solenoid (12V, see 64C6) | 1 | |
| 66-4302 | VALVE - solenoid (24V, see 64C6) | 1 | ||
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 23 | 66-4430 | TUBE - defrost | 1 | |
| 24 | 55-4142 | ELBOW | 1 | |
| 25 | 66-4841 | TUBE - exchanger to suction bulkhead | 1 | |
| 26 | 66-4862 | TUBE - defrost | 1 | |
| 27 | 66-4922 | TUBE - equalizer | 1 | |
| 28 | 55-1654 | TEE | 1 | |
| 55-1653 | ELBOW (45) | 1 | ||
| 29 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 30 | 44-6865 | SWITCH - condenser fan pressure | 1 | |
| 31 | 55-6137 | TEE | 1 | |
| 32 | 44-7727 | SWITCH - pressure cut-in | 1 |
