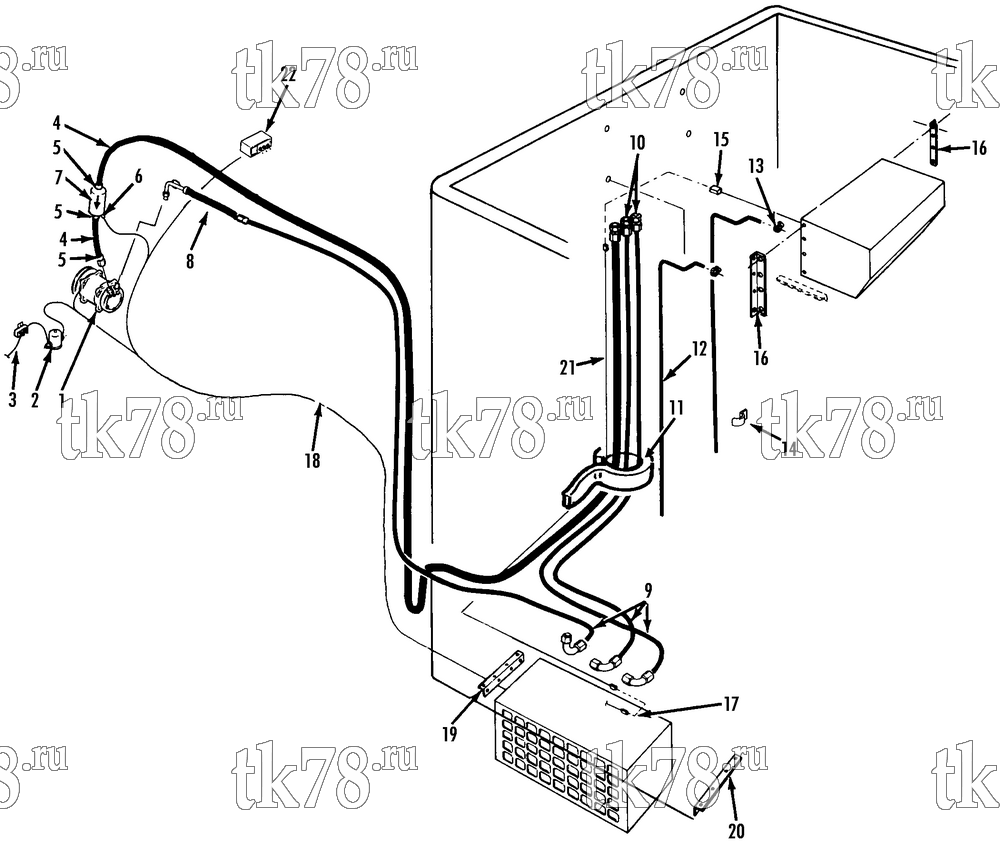

Установкa Thermo King STB-III схема INSTALLATION COMPONENTS (STB-III 10D UNDERMOUNT) – 83A2
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-349 | COMPRESSOR (see 83A4) | 1 | |
| 102-348 | COMPRESSOR (24V, see 83A4) | 1 | ||
| 2 | 44-4397 | SOLENOID (12V) | 1 | |
| 41-3987 | SOLENOID (24V) | 1 | ||
| 3 | 44-6146 | BREAKER - circuit (12V) | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 44-6145 | BREAKER - circuit (24V) | 1 | ||
|
30-44-6145 | Предохранитель 20А | 1 320 ₽ |
|
| 4 | 66-4908 | HOSE - suction (1-1/16-14 thread) | 1 | |
| 5 | 55-4273 | FITTING - straight | 3 | |
| 6 | 44-6132 | SWITCH - lpco | 1 | |
| 7 | 66-4359 | FILTER - suction line | 1 | |
| 55-2365 | HANGER - filter | 2 | ||
| 91-425 | ANGLE - hanger | 1 | ||
| 8 | 66-4861 | VIBRASORBER - discharge (see 82E14) | 1 | |
| 9 | 66-4851 | HOSE - discharge | 3 | |
| 10 | 66-4868 | FITTING - hose | 3 | |
| 11 | 33-1216 | GROMMET | 1 | |
| 12 | 11-3305 | SLEEVING - hose (drain) | A/R | |
| 13 | 55-2686 | CLAMP - hose (drain) | 2 | |
| 14 | 55-2154 | CLAMP - hose (15/16) | 8 | |
| 55-3598 | CLAMP - hose (1-11/64 id) | 8 | ||
| 55-5657 | SCREW - clamp | 16 | ||
| 15 | 44-7647 | HARNESS - evaporator | 1 | |
| 16 | 91-425 | ANGLE - hanger (evaporator) | 2 | |
| 55-1587 | SCREW - evaporator | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 8 | ||
| 17 | 44-7649 | HARNESS - condenser | 1 | |
| 18 | 44-7940 | HARNESS - cab control box | 1 | |
| 19 | 99-7820 | ANGLE - condenser | 1 | |
| 55-329 | SCREW - condenser | 8 | ||
| 55-402 | FLATWASHER | 16 | ||
| 55-5078 | NUT | 8 | ||
| 20 | 91-428 | BRACKET - condenser | 1 | |
| 55-329 | SCREW - condenser | 8 | ||
| 55-402 | FLATWASHER | 16 | ||
| 55-5078 | NUT | 8 | ||
| 21 | 44-7740 | HARNESS - patch | 1 | |
| 22 | 91-408 | BOX - remote control (see 83A11) | 1 |
