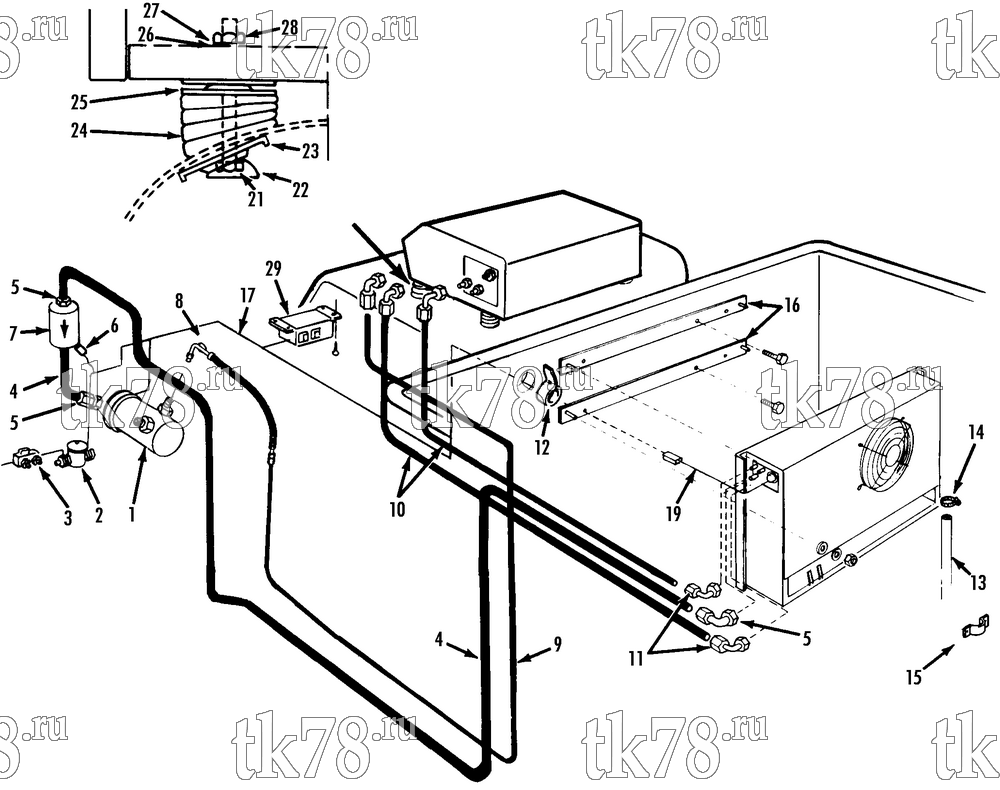

Установкa Thermo King STB-III схема INSTALLATION COMPONENTS (STB-III 10DRT) – 83A1
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-348 | COMPRESSOR (see 83A4) | 1 | |
| 2 | 44-4397 | SOLENOID (12V) | 1 | |
| 41-3987 | SOLENOID (24V) | 1 | ||
| 3 | 44-6146 | BREAKER - circuit (12V) | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 44-6145 | BREAKER - circuit (24V) | 1 | ||
|
30-44-6145 | Предохранитель 20А | 1 320 ₽ |
|
| 4 | 66-4850 | HOSE - suction (1-1/16-14 thread) | 1 | |
| 5 | 55-4273 | FITTING - straight | 3 | |
| 6 | 44-6132 | SWITCH - lpco | 1 | |
| 7 | 66-4359 | FILTER - suction line | 1 | |
| 55-2365 | HANGER - filter | 2 | ||
| 91-425 | ANGLE - hanger | 1 | ||
| 8 | 66-4861 | VIBRASORBER - discharge (see 83E14) | 1 | |
| 9 | 66-4851 | HOSE - discharge | 1 | |
| 10 | 67-944 | HOSE - condenser to evaporator | 2 | |
| 11 | 66-4868 | FITTING - hose | 1 | |
| 12 | 33-1216 | GROMMET | 1 | |
| 13 | 11-3305 | SLEEVING - hose (drain) | A/R | |
| 14 | 55-2686 | CLAMP - hose (drain) | 2 | |
| 15 | 55-2154 | CLAMP - hose (5/16) | 8 | |
| 55-3598 | CLAMP - hose (1-11/64 id) | 8 | ||
| 55-5657 | SCREW - clamps | 16 | ||
| 16 | 91-430 | BRACKET - evaporator | 2 | |
| 55-4955 | NUT - unit | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-5230 | WASHER - special | 4 | ||
| 16 | 91-425 | ANGLE - hanger (evaporator) | 2 | |
| 55-1587 | SCREW - evaporator | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 8 | ||
| 17 | 44-7648 | HARNESS - cab box to engine | 1 | |
| 18 | 44-7649 | HARNESS - condenser | 1 | |
| 19 | 44-7637 | HARNESS - evaporator | 1 | |
| 20 | 44-7940 | HARNESS - cab control box | 1 | |
| 21 | 55-4714 | SCREW - condenser | 4 | |
| 22 | 55-4716 | CUP - alignment | 4 | |
| 23 | 55-4715 | WASHER - alignment | 4 | |
| 24 | 55-4717 | SPACER | A/R | |
| 25 | 55-4718 | WASHER | 4 | |
| 26 | 55-402 | FLATWASHER | 4 | |
| 27 | 55-375 | LOCKWASHER | 4 | |
| 28 | 55-3054 | NUT | 4 | |
| 29 | 91-408 | BOX - remote control (see 83A11) | 1 |
