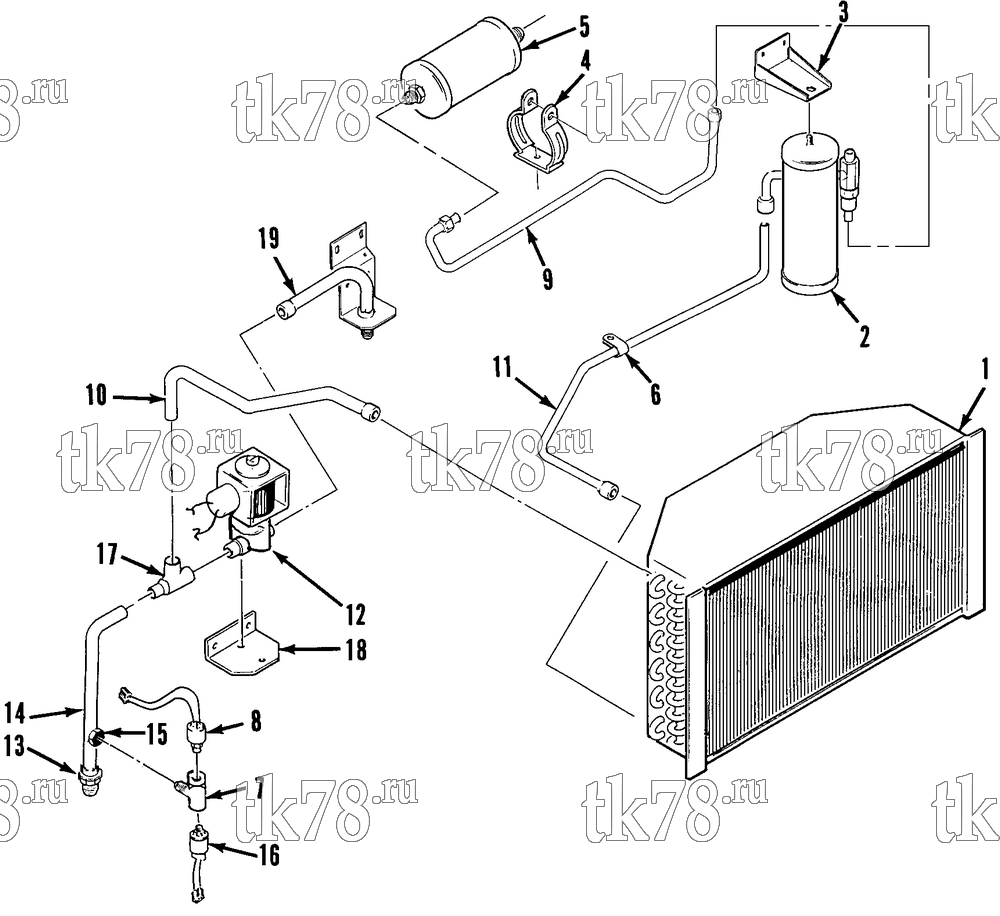

Установкa Thermo King STB-III схема REFRIGERATION COMPONENTS (STB-III 10D) – 82E8
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-713 | COIL - condenser | 1 | |
| 55-4974 | NUT - caged | 8 | ||
| 91-598 | NAMEPLATE - pressure vessel (EMEIA) | 1 | ||
| 55-145 | SCREW - coil | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-419 | LOCKWASHER | 8 | ||
| 2 | 67-871 | TANK - receiver | 1 | |
| 55-5078 | NUT - receiver tank | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 3 | 91-604 | BRACKET - receiver tank | 1 | |
| 55-145 | SCREW - bracket | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 4 | 55-2192 | HANGER - dehydrator | 1 | |
| 5 | 66-4729 | DEHYDRATOR | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 6 | 55-549 | CLAMP - tube | 2 | |
| 55-145 | SCREW | 2 | ||
| 55-4118 | NUT | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 7 | 55-1654 | TEE | 1 | |
| 8 | 44-6865 | SWITCH - condenser fan | 1 | |
| 9 | 66-4859 | TUBE - receiver to dehydrator | 1 | |
| 10 | 66-4132 | TUBE - tee to condenser coil | 1 | |
| 11 | 66-4860 | TUBE - condenser to receiver tank | 1 | |
| 12 | 66-3693 | VALVE - solenoid (12V, see 64C6) | 1 | |
| 66-4302 | VALVE - solenoid (24V, see 64C6) | 1 | ||
| 99-261 | CONNECTOR - cable | 1 | ||
| 33-285 | GROMMET | 1 | ||
| 44-5573 | CONNECTOR - electric | 1 | ||
| 55-3029 | SCREW - valve | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 13 | 55-3213 | ADAPTER | 1 | |
| 14 | 66-4433 | TUBE - adapter to valve | 1 | |
| 15 | 66-4139 | FITTING - hpco switch | 1 | |
| 16 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 17 | 55-5678 | TEE | 1 | |
| 18 | 99-7816 | BRACKET - solenoid | 1 | |
| 55-145 | SCREW - bracket | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 19 | 66-4434 | PLATE & ADAPTER | 1 | |
| 55-1610 | ADAPTER | 1 | ||
| 55-145 | SCREW - plate | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 |
