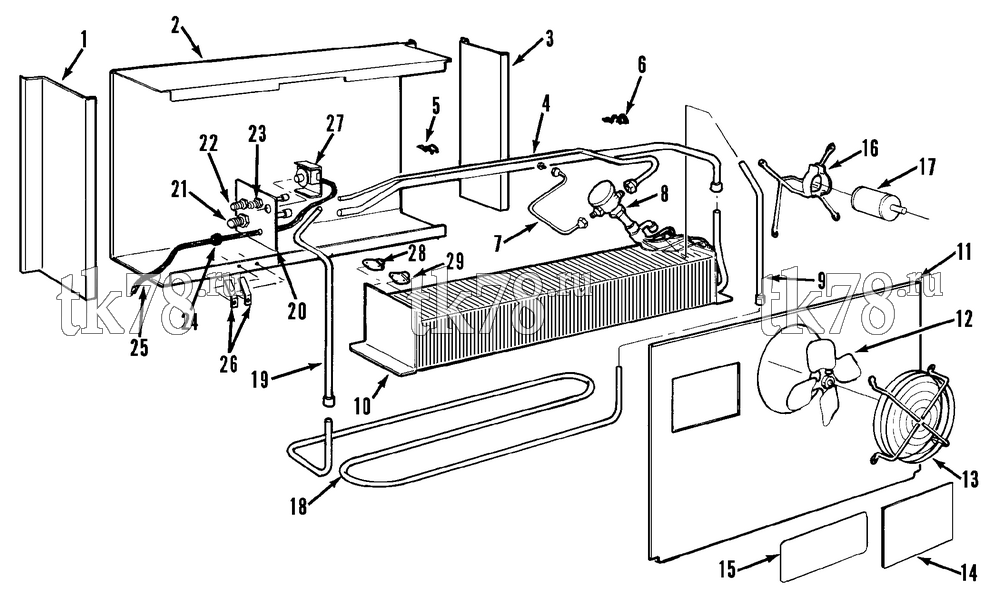

Установкa Thermo King STB-III схема EVAPORATOR THIN LINE (STB-III 10DRT) – 82E3
Обновление от: 12/7/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2962 | PANEL - side (left) | 1 | |
| 2 | 98-2961 | PANEL - housing | 1 | |
| 3 | 98-2963 | PANEL - side (right) | 1 | |
| 55-1587 | SCREW - panel | 24 | ||
| 55-1800 | LOCKWASHER | 18 | ||
| 55-2086 | FLATWASHER | 22 | ||
| 55-3059 | NUT - captive | 9 | ||
| 55-4953 | NUT (stop) | 6 | ||
| 4 | 67-586 | HEAT EXCHANGER | 1 | |
| 66-874 | FITTING - flow | 1 | ||
| 5 | 55-4141 | CLAMP - exchanger | 1 | |
| 6 | 55-548 | CLAMP - exchanger | 1 | |
| 55-2991 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 7 | 66-4436 | TUBE - equalizer | 1 | |
| 8 | 66-4074 | VALVE - expansion | 1 | |
| 9 | 66-2793 | TUBE - defrost | 1 | |
| 10 | 67-489 | COIL - evaporator | 1 | |
| 99-4509 | SUPPORT - coil (left) | 1 | ||
| 99-4510 | SUPPORT - coil (right) | 1 | ||
| 99-8082 | STRIP (neoprene) | A/R | ||
| 11 | 98-1573 | COVER - evaporator | 1 | |
| 55-3059 | NUT - captive (cover) | 6 | ||
| 55-1587 | SCREW | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 12 | 78-366 | FAN - evaporator | 1 | |
| 13 | 99-3033 | GUARD - evaporator fan | 1 | |
| 55-315 | NUT - guard | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 8 | ||
| 14 | 99-3029 | DOOR - evaporator access | 1 | |
| 55-2995 | SCREW - door | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-3188 | NUT - speed (U) | 4 | ||
| 15 | 99-7679 | NAMEPLATE - Thermo King | 1 | |
| 16 | 91-420 | MOUNT - evaporator motor | 2 | |
| 99-4520 | STRIP (neoprene) | 1 | ||
| 17 | 44-8021 | MOTOR - evaporator fan (12VDC, see 83A5) | 1 | |
| 44-7447 | MOTOR - evaporator fan (24VDC, see 83A5) | 1 | ||
| 18 | 66-2738 | TUBE - defrost | 1 | |
| 99-2408 | CLIP - defrost tube | 12 | ||
| 55-2991 | SCREW - clip | 12 | ||
| 55-3008 | WASHER - sealing | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT | 12 | ||
| 19 | 66-2740 | TUBE - defrost to adapter | 1 | |
| 20 | 99-8900 | PLATE - adapter | 1 | |
| 21 | 55-3211 | ADAPTER - suction | 1 | |
| 66-2743 | TUBE - suction adapter | 1 | ||
| 99-3037 | NAMEPLATE - Suction | 1 | ||
| 22 | 55-5045 | ADAPTER - liquid | 1 | |
| 66-2741 | TUBE - liquid | 1 | ||
| 99-3036 | NAMEPLATE - Liquid | 1 | ||
| 23 | 55-5045 | ADAPTER - defrost | 1 | |
| 55-3250 | ELBOW - defrost | 1 | ||
| 99-3038 | NAMEPLATE - Defrost | 1 | ||
| 24 | 55-3831 | CONNECTOR - cable | 1 | |
| 25 | 44-7637 | HARNESS - evaporator | 1 | |
| 44-5718 | CONNECTOR (8-pin) | 1 | ||
| 44-6519 | CONNECTOR (2-pin) | 1 | ||
| 44-6451 | CONNECTOR (1-pin) | 2 | ||
| 26 | 99-4508 | BRACKET - thermometer bulb | 2 | |
| 55-3003 | SCREW - bracket/clamp | 5 | ||
| 55-3013 | FLATWASHER | 5 | ||
| 55-3014 | LOCKWASHER | 5 | ||
| 55-2999 | NUT | 5 | ||
| 27 | 44-6369 | THERMOSTAT (F) | 1 | |
| 44-6396 | THERMOSTAT (C) | 1 | ||
| 99-7044 | BRACKET - thermostat | 1 | ||
| 28 | 44-9635 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
