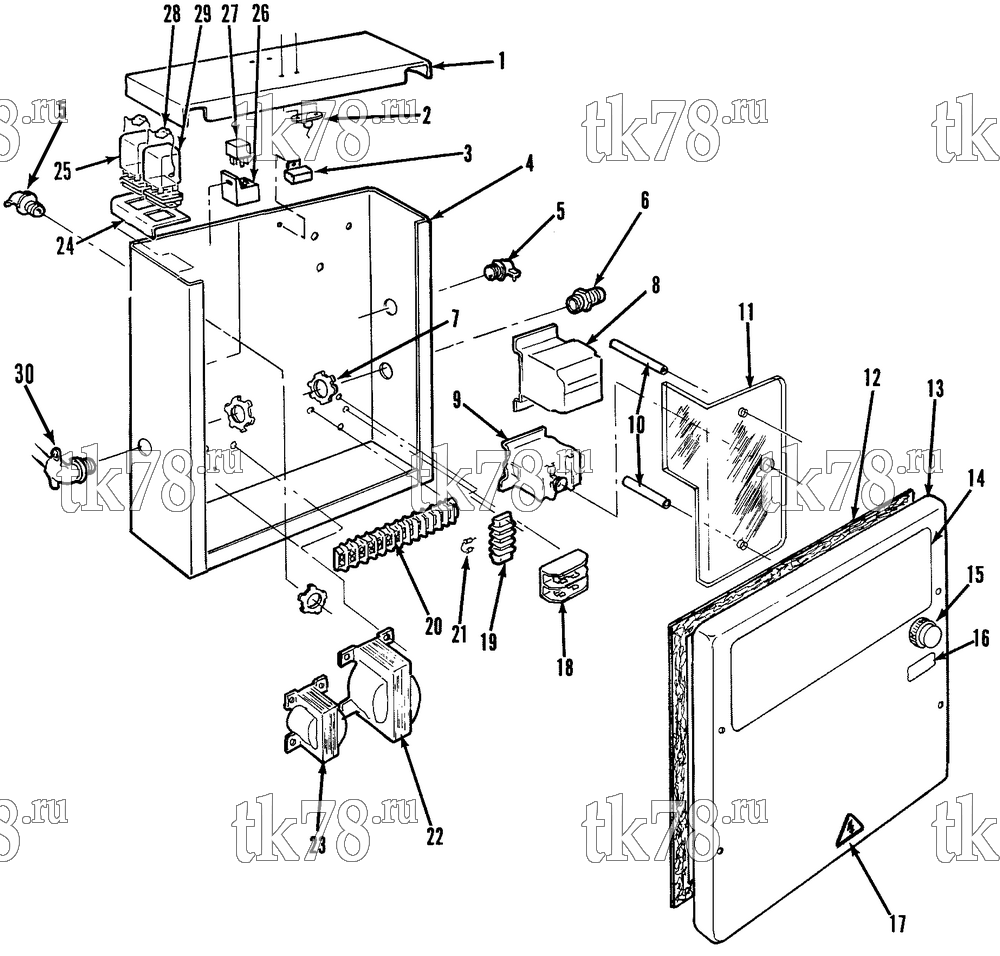

Установкa Thermo King STB-III схема CONTROL BOX (STB-II 20D - 1 PHASE) – 82E1
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-8892 | COVER - control box | 1 | |
| 55-2995 | SCREW - cover | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4508 | NUT - captive | 2 | ||
| 2 | 44-3280 | RECTIFIER | 1 | |
| 55-2868 | SCREW - rectifier | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 3 | 44-6146 | BREAKER - circuit (12VDC) | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 44-6145 | BREAKER - circuit (24VDC) | 1 | ||
|
30-44-6145 | Предохранитель 20А | 1 320 ₽ |
|
| 99-8525 | NAMEPLATE - Electric Motor Reset | 1 | ||
| 55-2995 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 4 | 91-413 | BOX - control | 1 | |
| 91-605 | BOX - control (EMEIA) | 1 | ||
| 5 | 55-3831 | CONNECTOR - cable | 3 | |
| 6 | 55-2789 | FITTING - barb | 1 | |
| 33-144 | O-RING | 1 | ||
| 7 | 55-2635 | NUT - barb | 1 | |
| 8 | 41-5629 | CONTACTOR - motor (12VDC) | 1 | |
| 41-361 | CONTACTOR - motor (24VDC) | 1 | ||
| 55-4474 | SCREW - control | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 9 | 44-6887 | RELAY - overload (115/1/60 motor) | 1 | |
| 44-6888 | RELAY - overload (230/1/60 motor) | 1 | ||
| 44-6889 | RELAY - overload (220/1/50 motor) | 1 | ||
| 44-6890 | ADAPTER - relay | 1 | ||
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 10 | 91-407 | STANDOFF - high voltage cover | 2 | |
| 55-3021 | SCREW - standoff | 2 | ||
| 55-3319 | WASHER - sealing | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 11 | 91-415 | COVER - high voltage | 1 | |
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 12 | 33-1689 | GASKET - cover | 1 | |
| 99-8889 | SPACER - screw | 4 | ||
| 13 | 99-8895 | COVER - control box | 1 | |
| 55-2979 | SCREW - cover | 4 | ||
| 55-3059 | NUT - captive (cover) | 4 | ||
| 14 | 91-403 | NAMEPLATE - STB-III | 1 | |
| 15 | 92-8854 | BUTTON - reset | 1 | |
| 16 | 99-8525 | NAMEPLATE - Electric Motor Reset | 1 | |
| 91-606 | NAMEPLATE - reset (EMEIA) | 1 | ||
| 17 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 18 | 44-6891 | HOLDER - fuse | 1 | |
| 44-5661 | FUSE (4 amp) | 2 | ||
| 40-1004 | HOLDER - fuse (EMEIA) | 2 | ||
| 44-7730 | FUSE (2 amp, EMEIA) | 2 | ||
| 55-2868 | SCREW - holder | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 19 | 44-1750 | BOARD - terminal | 1 | |
| 44-5534 | BOARD - terminal (EMEIA) | 1 | ||
| 20 | 44-4062 | BOARD - terminal | 1 | |
| 44-4551 | BOARD - terminal (EMEIA) | 1 | ||
| 99-8834 | MARKSTRIP | 1 | ||
| 91-607 | MARKSTRIP (EMEIA) | 1 | ||
| 55-4487 | SCREW - board | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 55-2999 | NUT | 4 | ||
| 21 | 44-6861 | DIODE - assembly | 1 | |
| 22 | 44-6402 | TRANSFORMER | 1 | |
| 44-3710 | JUMPER | 1 | ||
| 55-2995 | SCREW - transformer | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 23 | 44-6299 | CHOKE - filter | 1 | |
| 55-2995 | SCREW - choke | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 24 | 44-3184 | SOCKET - relay | 2 | |
| 99-9430 | BRACKET - socket | 1 | ||
| 55-1189 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 25 | 44-3186 | RELAY - defrost (12VDC) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-4025 | RELAY - defrost (24VDC) | 1 | ||
| 99-2027 | SPRING - holddown | 1 | ||
| 55-2771 | CLAMP - relay | 1 | ||
| 55-2270 | RIVET - spring | 2 | ||
| 26 | 44-5537 | SOCKET - relay | 1 | |
| 27 | 44-9391 | RELAY - mini (12V) | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 44-9392 | RELAY - fan (24VDC) | 1 | ||
| 28 | 99-8475 | HOLDDOWN | 1 | |
| 29 | 44-7531 | TIMER - defrost | 1 | |
|
10-44-7531 | Таймер оттайки | 17 150 ₽ |
|
| 30 | 44-7670 | HARNESS - condenser | 1 |
