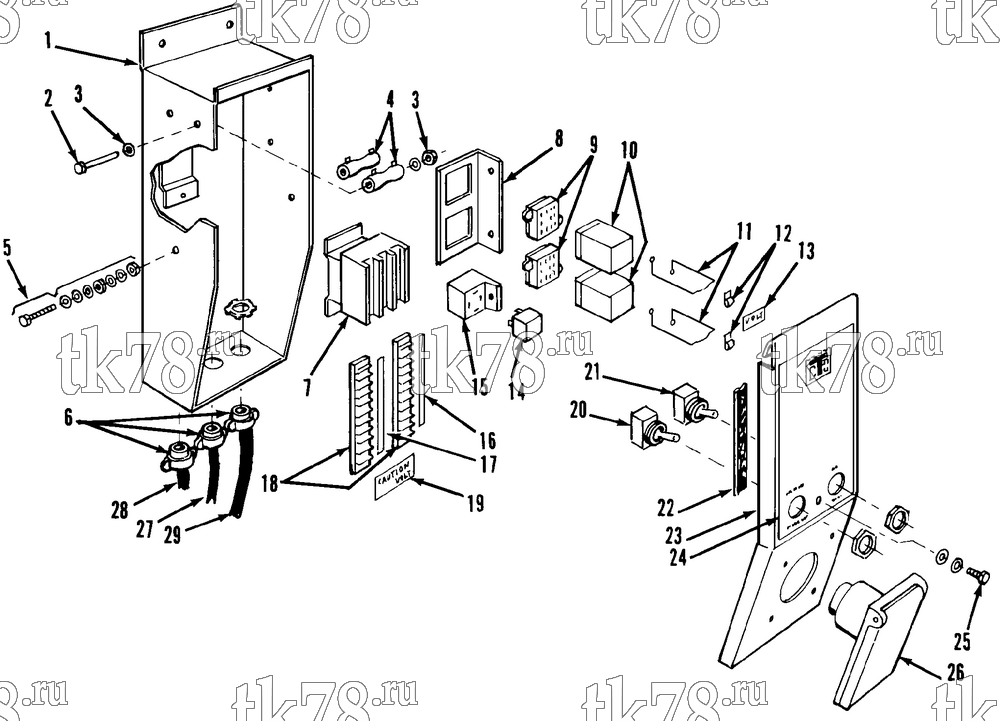

Установкa Thermo King STB-I схема REMOTE CONTROL BOX (STB-I 20D) – 64E12
Обновление от: 10/1/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7683 | BOX - remote control (only) | 1 | |
| 2 | 55-3344 | SCREW - resistor | 2 | |
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-4953 | NUT | 2 | ||
| 3 | 55-2086 | FLATWASHER | 4 | |
| 4 | 44-6315 | RESISTOR (12V units only) | 2 | |
| 55-5290 | WASHER - shoulder | 4 | ||
| 5 | 55-3506 | SCREW - ground | 1 | |
| 55-1852 | LOCKWASHER | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 55-3496 | LOCKWASHER | 1 | ||
| 55-346 | NUT | 2 | ||
| 6 | 55-3831 | CONNECTOR - cable (3/4) | 2 | |
| 55-3291 | CONNECTOR (1.0 id) | 1 | ||
| 7 | 44-6302 | CONTACTOR (12V) | 1 | |
| 44-4286 | COIL - contactor (12V) | 1 | ||
| 40-287 | KIT - points | 3 | ||
| 44-3837 | CONTACTOR (24V) | 1 | ||
| 44-3913 | COIL - contactor (24V) | 1 | ||
| 40-216 | KIT - points | 3 | ||
| 55-736 | SCREW - contactor | 3 | ||
| 44-4861 | DIODE - assembly | 1 | ||
| 8 | 99-7685 | BRACKET - relay socket | 1 | |
| 55-736 | SCREW - bracket | 2 | ||
| 9 | 44-3184 | SOCKET - relay | 2 | |
| 10 | 44-3186 | RELAY (12V) | 2 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-4025 | RELAY (24V) | 2 | ||
| 11 | 99-2027 | SPRING - holddown | 2 | |
| 55-2270 | RIVET | 4 | ||
| 12 | 55-2771 | CLAMP - speednut | 2 | |
| 13 | 44-3657 | NAMEPLATE - 12 Volt | 1 | |
| 99-2477 | NAMEPLATE - 24 Volt | 1 | ||
| 14 | 44-9391 | RELAY - fan (12V) | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 44-9392 | RELAY - fan (24V) | 1 | ||
| 15 | 44-5537 | SOCKET - relay | 1 | |
| 55-736 | SCREW - socket | 1 | ||
| 55-5292 | LOCKNUT | 1 | ||
| 16 | 99-7686 | MARKSTRIP | 1 | |
| 17 | 99-7687 | MARKSTRIP | 1 | |
| 18 | 44-5011 | BOARD - terminal | 2 | |
| 44-4861 | DIODE - assembly | 4 | ||
| 44-3579 | STRIP - jumper | 2 | ||
| 55-3239 | SCREW - board | 4 | ||
| 55-3519 | NUT | 4 | ||
| 19 | 99-3407 | NAMEPLATE - Caution 230 Volts | 1 | |
| 99-7733 | NAMEPLATE - Caution (380/460V) | 1 | ||
| 99-8030 | NAMEPLATE - Caution (115V) | 1 | ||
| 20 | 44-1164 | SWITCH - manual defrost | 1 | |
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
| 21 | 44-490 | SWITCH - on/off | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 22 | 99-4976 | STRIP - gasket (4.0 ft) | A/R | |
| 23 | 99-7684 | COVER - remote control box | 1 | |
| 55-3018 | SCREW - cover | 2 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 99-5908 | NAMEPLATE - Caution High Voltage | 1 | ||
| 24 | 99-7821 | NAMEPLATE - cover | 1 | |
| 25 | 55-3506 | SCREW - ground | 1 | |
| 55-1852 | LOCKWASHER | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 55-3496 | LOCKWASHER | 1 | ||
| 55-346 | NUT | 2 | ||
| 26 | 44-5656 | RECEPTACLE (230/3/60) | 1 | |
| 44-4585 | RECEPTACLE (480/3/60) | 1 | ||
| 44-4699 | RECEPTACLE (230/1/60) | 1 | ||
| 44-6502 | RECEPTACLE (115/1/60) | 1 | ||
| 55-1385 | SCREW - receptacle | 4 | ||
| 55-5077 | NUT | 4 | ||
| 27 | 44-6303 | CABLE - compressor motor (230 & 460V) | 1 | |
| 28 | 44-6304 | HARNESS - engine to control | 1 | |
| 44-6501 | CABLE - compressor motor (115V) | 1 | ||
| 29 | 44-6305 | HARNESS - condenser to control box | 1 |
