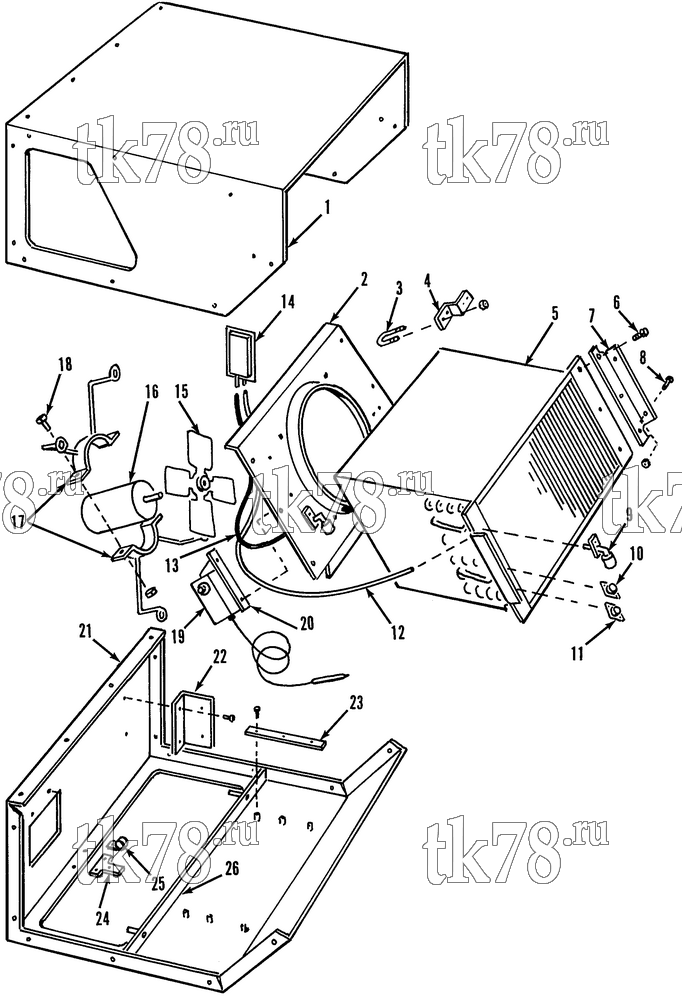

Установкa Thermo King STB-I схема EVAPORATOR GROUP (STB-I 10D & 20D) – 64D1
Обновление от: 1/3/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2631 | HOUSING - evaporator | 1 | |
| 55-2995 | SCREW - housing | 15 | ||
| 55-4560 | NUT | 15 | ||
| 2 | 98-2629 | ORIFICE - evaporator | 1 | |
| 55-1587 | SCREW - orifice | 6 | ||
| 3 | 99-1853 | U-BOLT | 1 | |
| 55-4560 | NUT | 2 | ||
| 4 | 99-7695 | SUPPORT - distributor | 1 | |
| 5 | 67-714 | COIL - evaporator | 1 | |
| 55-3059 | NUT - captive (1/4-20) | 6 | ||
| 55-4526 | NUT - caged (#10-32) | 2 | ||
| 6 | 55-2995 | SCREW - evaporator | 4 | |
| 7 | 99-7698 | ANGLE - coil | 1 | |
| 8 | 55-2995 | SCREW - angle | 2 | |
| 55-4560 | NUT | 2 | ||
| 9 | 99-1275 | PROBE - air switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3136 | RIVET - probe | 2 | ||
| 10 | 44-4059 | SWITCH - defrost termination (2 terminal) | 1 | |
| 11 | 44-3155 | SWITCH - defrost termination (1 terminal) | 1 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 55-5638 | SCREW - termination switch | 4 | ||
| 12 | 99-1142 | HOSE - air switch (clear) | A/R | |
| 13 | 99-1143 | HOSE - air switch (black) | A/R | |
| 14 | 44-6307 | SWITCH - air pressure | 1 | |
| 55-4560 | NUT - air switch | 2 | ||
| 15 | 78-366 | FAN | 1 | |
| 16 | 44-8526 | MOTOR - fan (12VDC, see 62E11) | 1 | |
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 44-8527 | MOTOR - fan (24VDC, see 62E11) | 1 | ||
| 17 | 99-2419 | MOUNT - motor | 2 | |
| 99-4520 | STRIP (neoprene) | 2 | ||
| 55-2977 | SCREW - motor mount | 4 | ||
| 55-1201 | WASHER - special | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 18 | 55-2977 | SCREW - motor | 2 | |
| 55-4953 | NUT | 2 | ||
| 19 | 44-6369 | THERMOSTAT (12VDC) | 1 | |
| 44-6396 | THERMOSTAT (24VDC) | 1 | ||
| 55-3513 | SCREW - thermostat | 2 | ||
| 55-2999 | NUT | 2 | ||
| 20 | 99-7694 | SUPPORT - thermostat | 1 | |
| 55-1587 | SCREW - support | 2 | ||
| 21 | 98-2630 | PANEL - evaporator bottom | 1 | |
| 55-5206 | INSERT - nut | 2 | ||
| 22 | 99-7813 | SUPPORT - air switch | 1 | |
| 55-2995 | SCREW - clamp | 6 | ||
| 55-4560 | NUT | 2 | ||
| 23 | 99-7696 | CLAMP - defrost tube | 2 | |
| 55-2995 | SCREW - clamp | 6 | ||
| 55-3569 | NUT - rivet | 6 | ||
| 24 | 99-7697 | SUPPORT - thermostat bulb | 1 | |
| 25 | 55-547 | CLAMP | 1 | |
| 55-2995 | SCREW - support & clamp | 3 | ||
| 55-4560 | NUT | 3 | ||
| 26 | 99-7600 | BLOCKOFF - drain pan | 1 | |
| 55-5638 | SCREW - blockoff | 3 |
