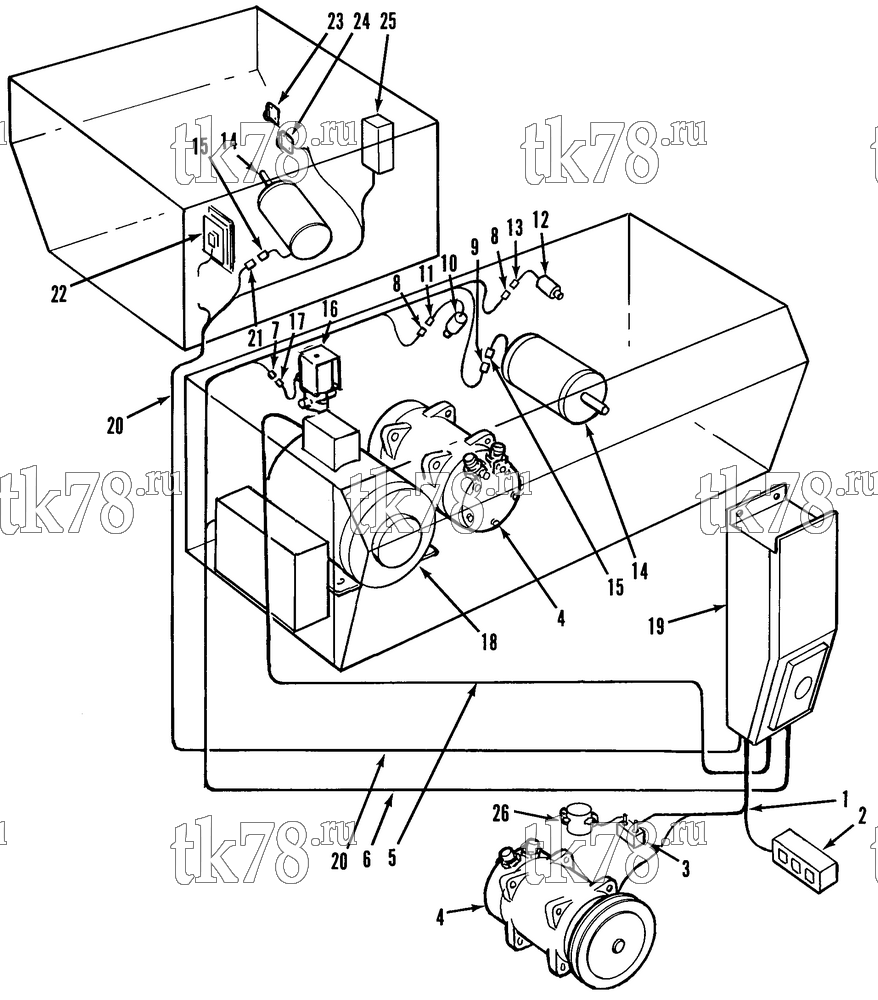

Установкa Thermo King STB-I схема HARNESSES & COMPONENTS (STB-I 20D) – 64C7
Обновление от: 1/3/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-6304 | HARNESS | 1 | |
| 2 | 44-6141 | BOX - cab (see 58G13) | 1 | |
| 3 | 44-6146 | BREAKER - circuit (12V) | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 44-6145 | BREAKER - circuit (24V) | 1 | ||
|
30-44-6145 | Предохранитель 20А | 1 320 ₽ |
|
| 4 | 102-349 | COMPRESSOR (see 64D7) | 1 | |
| 5 | 44-6303 | CABLE - electric motor | 1 | |
| 6 | 44-6305 | HARNESS - condenser | 1 | |
| 7 | 44-6383 | CONNECTOR - solenoid | 1 | |
| 8 | 44-5620 | CONNECTOR - switches | 2 | |
| 9 | 44-5573 | CONNECTOR - condenser fan | 1 | |
| 10 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 11 | 44-5620 | CONNECTOR | 1 | |
| 12 | 44-6132 | SWITCH - lpco | 1 | |
| 13 | 44-5620 | CONNECTOR | 1 | |
| 14 | 44-8526 | MOTOR - condenser/evaporator fan (12V, see 66B3) | 1 | |
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 44-8527 | MOTOR - condenser/evaporator fan (24V, see 66B3) | 1 | ||
| 15 | 44-5627 | CONNECTOR | 1 | |
| 16 | 66-3693 | VALVE - solenoid (12V, see 64C6) | 1 | |
| 66-2021 | VALVE - solenoid (24V, see 64C6) | 1 | ||
| 17 | 44-6264 | CONNECTOR | 1 | |
| 18 | 104-381 | MOTOR (115-230/1/60, see 66B3) | 1 | |
| 104-379 | MOTOR (220/1/50, see 66B3) | 1 | ||
| 104-380 | MOTOR (380/3/50, see 66B3) | 1 | ||
| 19 | 99-7683 | BOX - remote control (see 64E12) | 1 | |
| 20 | 44-6308 | HARNESS - evaporator | 1 | |
| 21 | 44-5627 | CONNECTOR - motor | 1 | |
| 22 | 44-6307 | SWITCH - air pressure | 1 | |
| 23 | 44-4059 | SWITCH - defrost termination (2 terminal) | 1 | |
| 24 | 44-3155 | SWITCH - defrost termination (1 terminal) | 1 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 25 | 44-6369 | THERMOSTAT (12VDC) | 1 | |
| 44-6396 | THERMOSTAT (24VDC) | 1 | ||
| 26 | 44-4397 | SOLENOID (12V) | 1 | |
| 41-3987 | SOLENOID (24V) | 1 |
