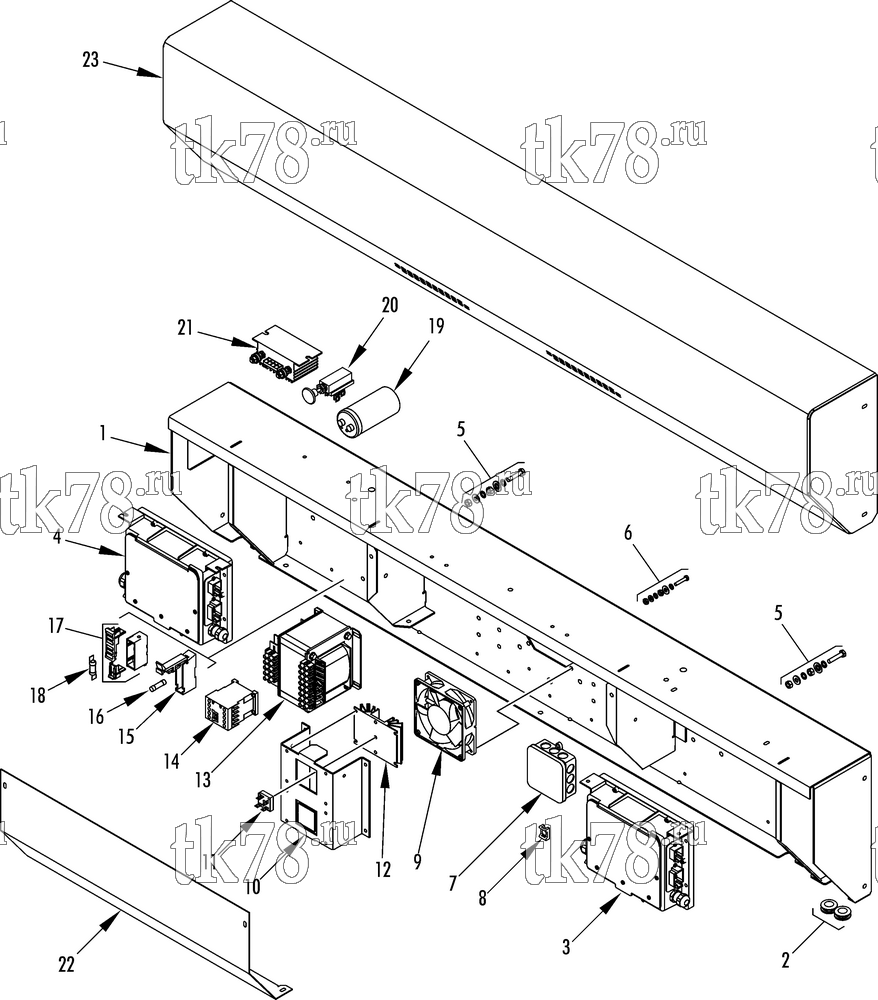

Установкa Thermo King ST-CR & ST-CR MT схема CONTROL BOX (SINGLE-TEMP) – 189H8
Обновление от: 10/8/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6728 | BASE - control box | 1 | |
| 2 | 33-287 | GROMMET (5/8 id) | 2 | |
| 33-741 | GROMMET (33/64 id) | 1 | ||
| 33-507 | GROMMET (7/8 id) | 2 | ||
| 33-452 | GROMMET (0.875 id) | 2 | ||
| 33-629 | GROMMET (1.00 id) | 1 | ||
| 33-624 | GROMMET (1-1/2 id) | 2 | ||
| 3 | 41-4897 | BOX - power distribution (24VDC) | 1 | |
| 41-4896 | BOX - power distribution (12VDC) | 1 | ||
| 4 | 45-2132 | BOX - controller (see 183B8) | 1 | |
| 55-3005 | SCREW - box | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 5 | 55-2979 | SCREW - ground (1/4-20) | 2 | |
| 55-2993 | LOCKWASHER (internal tooth) | 4 | ||
| 55-2699 | LOCKWASHER (internal/external tooth) | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1801 | NUT | 4 | ||
| 6 | 55-3000 | SCREW - ground (10-32) | 1 | |
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2700 | LOCKWASHER (internal/external tooth) | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 7 | 92-3300 | BOX - junction | 1 | |
| 55-2269 | SCREW - box | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 8 | 99-6093 | MOUNT - cable tie | 12 | |
| 55-3136 | RIVET - mount | 12 | ||
| 9 | 41-4826 | FAN (24VDC) | 1 | |
| 41-5696 | FAN (12VDC) | 1 | ||
| 55-9478 | SCREW - fan | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 10 | 92-3300 | MOUNT - rectifier | 1 | |
| 11 | 41-363 | RECTIFIER (50 amp, 200 VRM) | 1 | |
| 55-4976 | SCREW - rectifier | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 12 | 92-2133 | HEATSINK | 1 | |
| 55-3136 | RIVET - heatsink | 4 | ||
| 203-454 | MASTIC - heatsink | A/R | ||
| 13 | 41-3673 | TRANSFORMER (500 VA) | 1 | |
| 92-3299 | STRAP - transformer | 1 | ||
| 55-3027 | SCREW - transformer | 4 | ||
| 55-2700 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-5676 | WASHER - special | 3 | ||
| 14 | 41-4270 | CONTACTOR (24VDC) | 1 | |
| 41-5695 | CONTACTOR (12VDC) | 1 | ||
| 55-3511 | SCREW - contactor | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 15 | 40-1004 | KIT - fuse holder (before 9/07) | 1 | |
| 41-8191 | HOLDER - fuse | 1 | ||
| 41-8193 | CAP - fuse | 1 | ||
| 16 | 41-1475 | FUSE (4 amp, before 9/07) | 1 | |
| 17 | 41-9174 | HOLDER - fuse (9/07 & after) | 1 | |
| 18 | 41-9173 | FUSE (4 amp, 9/07 & after) | 1 | |
| 19 | 41-1873 | CAPACITOR (33000 MFD, 30 VDC) | 1 | |
| 55-5618 | CLAMP - capacitor | 2 | ||
| 55-3027 | SCREW - clamp | 2 | ||
| 20 | 41-3068 | SWITCH - shutdown | 1 | |
| 21 | 41-5467 | DISCONNECT - low voltage (24VDC) | 1 | |
| 41-5466 | DISCONNECT - low voltage (12VDC) | 1 | ||
| 22 | 92-3301 | COVER - AC power | 1 | |
| 99-7246 | STRIP - gasket | A/R | ||
| 55-2989 | SCREW - cover | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 51-724 | INSERT - threaded | 4 | ||
| 23 | 92-3304 | COVER - control box | 1 | |
| 99-7245 | STRIP - gasket | A/R | ||
| 55-3027 | SCREW - cover | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 |
