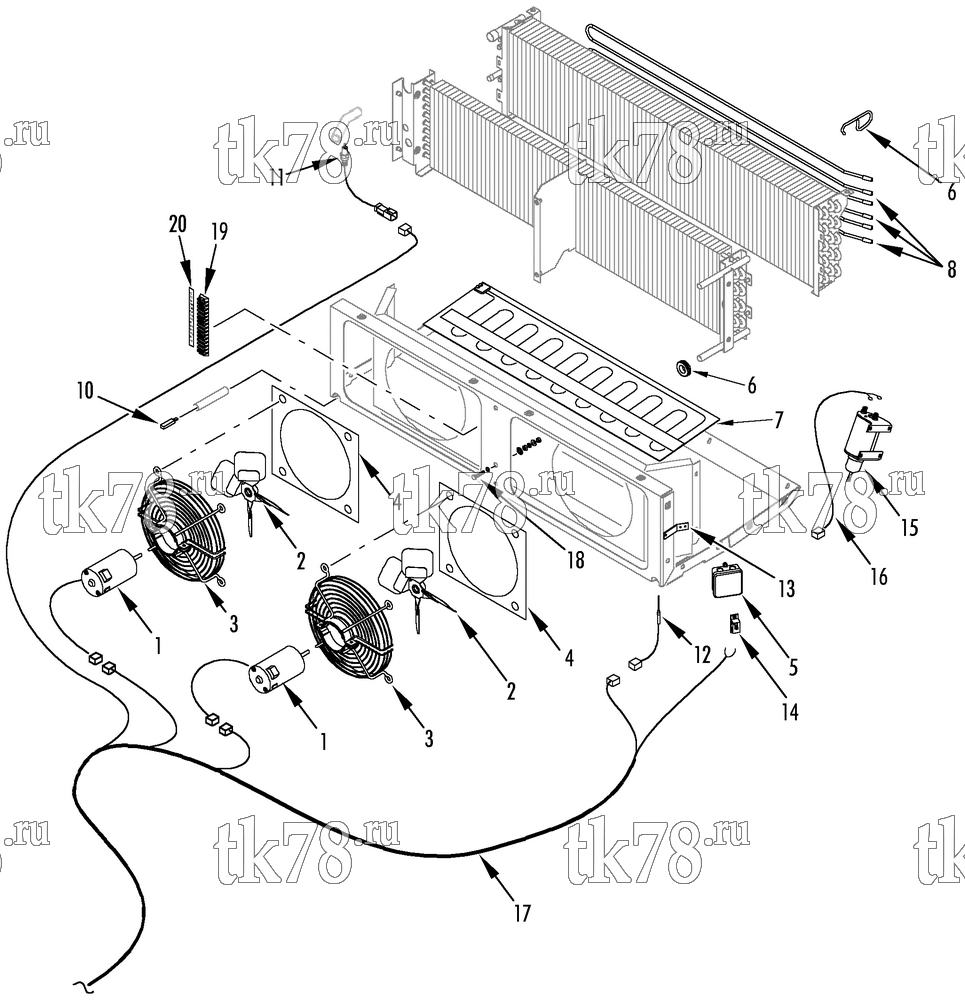

Установкa Thermo King ST-CR & ST-CR MT схема ELECTRICAL COMPONENTS (S-3 CT+, ST-CR 300) – 176D8
Обновление от: 8/12/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-436 | MOTOR - fan (24V) | 2 | |
| 41-5355 | MOTOR - fan (12V) | 2 | ||
| 55-2979 | SCREW - motor | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 2 | 77-2704 | FAN - evaporator (metal) | 2 | |
| 77-2915 | FAN - evaporator (plastic, nylon filled) | 2 | ||
| 3 | 92-2128 | MOUNT - screen | 4 | |
| 99-4520 | STRIP - neoprene | 2 | ||
| 4 | 98-3123 | ORIFICE - fan (before 4/03) | 2 | |
| 55-2957 | SCREW - grille & orifice | 8 | ||
| 55-2945 | WASHER - special | 8 | ||
| 5 | 44-7354 | BOX - junction | 1 | |
| 55-3027 | SCREW - box | 3 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-8752 | INSERT - threaded | 2 | ||
| 6 | 33-612 | GROMMET - heater leads | 1 | |
| 7 | 41-5690 | HEATER - drain pan (12V) | 1 | |
| 41-5703 | HEATER - drain pan (24V) | 1 | ||
| 8 | 41-4822 | HEATER (1500W) | 3 | |
| 304-2790 | TERMINAL - pin | 6 | ||
| 9 | 91-240 | RETAINER - heater | 12 | |
| 10 | 41-5688 | HEATER - drain tube (12V) | 2 | |
| 41-5685 | HEATER - drain tube (24V) | 2 | ||
| 11 | 41-4445 | SENSOR - temperature | 1 | |
| 55-386 | FLATWASHER (3/8 cu) | 1 | ||
| 12 | 41-4824 | SENSOR - return air | 1 | |
| 55-548 | CLAMP - sensor | 1 | ||
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 13 | 92-2129 | BRACKET - sensor | 1 | |
| 55-2260 | RIVET - bracket | 6 | ||
| 14 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-3404 | SCREW - switch | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-4223 | NUT | 2 | ||
| 15 | 44-2822 | SOLENOID - damper (24V, see 176D7) | 1 | |
| 44-2823 | SOLENOID - damper (12V, see 176D7) | 1 | ||
|
10-44-2823 | Соленоид | 19 350 ₽ |
|
| 16 | 41-4823 | HARNESS - damper | 1 | |
| 17 | 41-4825 | HARNESS - main wiring | 1 | |
| 18 | 55-2979 | SCREW - ground | 1 | |
| 55-2993 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2699 | LOCKWASHER (internal/external tooth) | 2 | ||
| 55-1801 | NUT | 2 | ||
| 19 | 44-4551 | BOARD - terminal | 1 | |
| 55-3404 | SCREW - board | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-9754 | INSERT - threaded | 2 | ||
| 20 | 92-3293 | NAMEPLATE - terminal board | 1 |
