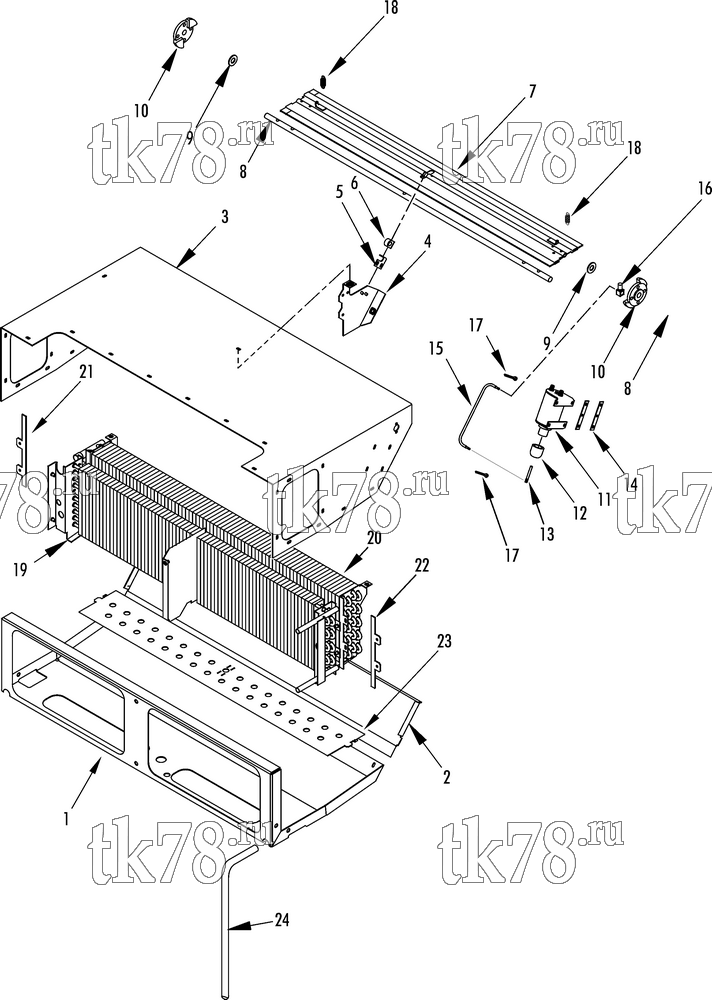

Установкa Thermo King ST-CR & ST-CR MT схема EVAPORATOR COMPONENTS (S-3 CT+, ST-CR 300) – 176D7
Обновление от: 11/22/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6388 | PAN - drain | 1 | |
| 2 | 98-4358 | PANEL - damper stop | 1 | |
| 55-5972 | SCREW - panel | A/R | ||
| 55-7729 | WASHER - belleville | A/R | ||
| 55-3059 | NUT - captive | A/R | ||
| 3 | 98-6389 | HOUSING - evaporator | 1 | |
| 55-5972 | SCREW - housing | A/R | ||
| 55-7729 | WASHER - belleville | A/R | ||
| 55-3059 | NUT - captive | A/R | ||
| 4 | 92-2127 | BRACKET - support (blade damper) | 1 | |
| 55-5972 | SCREW - bracket | 3 | ||
| 55-7729 | WASHER - belleville | 3 | ||
| 55-3059 | NUT - captive | 3 | ||
| 33-428 | GROMMET (1/2 id) | 1 | ||
| 5 | 91-1848 | ANGLE - damper support | 1 | |
| 6 | 55-6558 | CLAMP - damper support (complete) | 1 | |
| 55-2957 | SCREW - angle | 2 | ||
| 55-3121 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-4953 | NUT | 3 | ||
| 7 | 91-1843 | BLADE - damper | 1 | |
| 8 | 92-9436 | ROD - blade | 1 | |
| 55-3031 | SCREW - rod to blade | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 9 | 55-6534 | WASHER - damper blade | 2 | |
| 10 | 91-3905 | BEARING - damper | 2 | |
|
10-91-3905 | Демпфер | 2 080 ₽ |
|
| 55-3623 | SCREW - bearing | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 11 | 44-2822 | SOLENOID - damper (24V) | 1 | |
| 44-2823 | SOLENOID - damper (12V) | 1 | ||
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 12 | 91-3095 | COVER - plunger | 1 | |
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 44-2847 | PLUNGER | 1 | ||
| 13 | 55-2762 | BOLT - damper eye | 1 | |
|
10-55-2762 | Шток | 1 050 ₽ |
|
| 55-315 | NUT | 1 | ||
| 55-366 | LOCKWASHER | 1 | ||
| 14 | 99-3337 | NUTSTRIP - solenoid | 2 | |
| 55-5972 | SCREW - solenoid | 4 | ||
| 55-7729 | WASHER - belleville | 4 | ||
| 15 | 99-9953 | ROD - solenoid to damper | 1 | |
| 16 | 55-2112 | SCREW - damper shut | 1 | |
| 17 | 55-2550 | PIN - cotter | 2 | |
| 18 | 91-861 | SPRING - defrost shutter | 2 | |
| 19 | 67-1847 | COIL - evaporator | 1 | |
| 20 | 67-1846 | COIL - heater | 1 | |
| 55-5972 | SCREW - coil | A/R | ||
| 55-7729 | WASHER - belleville | A/R | ||
| 55-3059 | NUT - captive | A/R | ||
| 21 | 92-2124 | INSULATION - sheet | 1 | |
| 22 | 92-2125 | INSULATION - sheet | 1 | |
| 23 | 92-2126 | SHIELD - heater | 1 | |
| 24 | 98-6722 | HOSE - defrost drain | A/R |
