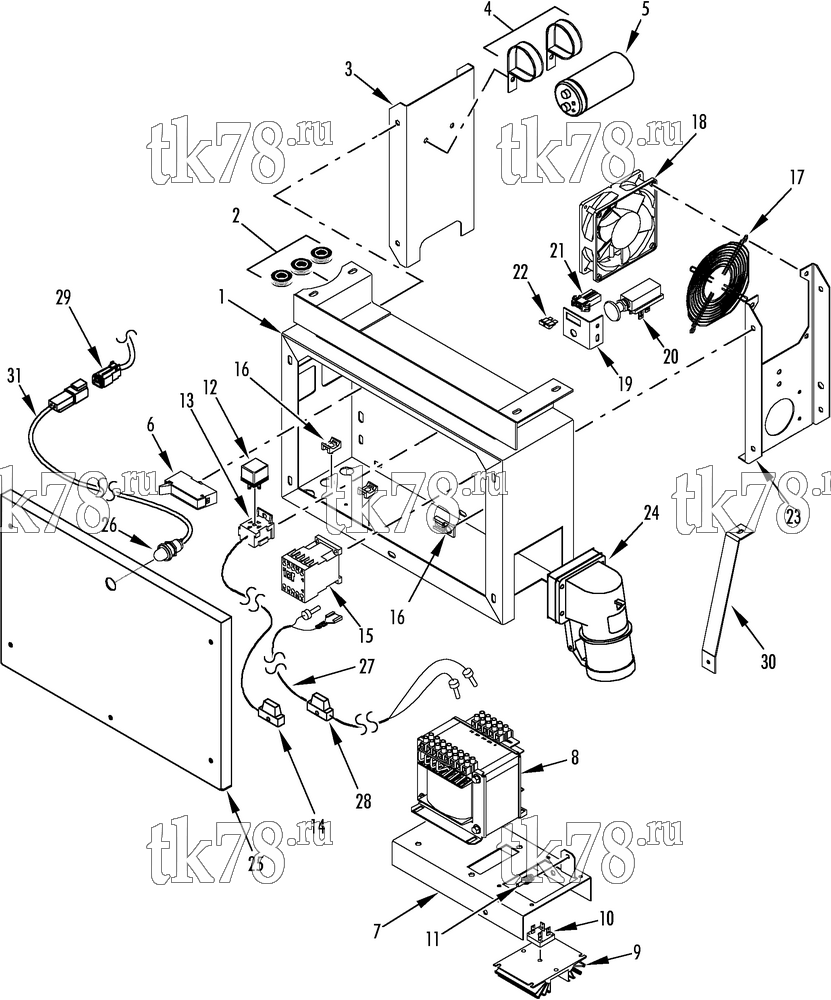

Установкa Thermo King ST-CR 300 схема AC BOX ASSEMBLY – 176F2
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-2130 | HOUSING - AC box | 1 | |
| 2 | 33-415 | GROMMET | 3 | |
| 3 | 92-2131 | CHANNEL - support (left) | 1 | |
| 4 | 55-6808 | CLAMP - capacitor | 2 | |
| 55-1844 | SCREW - clamp | 2 | ||
| 55-2202 | LOCKWASHER | 6 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 5 | 41-1873 | CAPACITOR (33000 MFD, 30VDC) | 1 | |
| 6 | 40-1004 | HOLDER - fuse (6 amp, 500V) | 1 | |
| 55-6390 | SCREW - fuse holder | 1 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2998 | LOCKWASHER | 1 | ||
| 55-2999 | NUT | 1 | ||
| 7 | 92-2132 | CHANNEL - transformer | 1 | |
| 8 | 41-3673 | TRANSFORMER (500VA) | 1 | |
| 55-2991 | SCREW - channel & transformer | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-8752 | INSERT - threaded | 8 | ||
| 9 | 92-2133 | SINK - heat | 1 | |
| 55-3015 | SCREW - heat sink | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-5676 | WASHER - special | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 10 | 41-363 | RECTIFIER (50 amp, 200 VRM) | 1 | |
| 203-454 | MASTIC - heat transfer | 1 | ||
| 55-4976 | SCREW - rectifier | 1 | ||
| 11 | 55-3506 | SCREW - ground | 1 | |
| 55-3496 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 55-346 | NUT | 2 | ||
| 12 | 41-896 | RELAY | 1 | |
| 41-4829 | RELAY (AC box) | 1 | ||
| 13 | 44-5537 | SOCKET - relay | 1 | |
| 14 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 41-4830 | FUSE (1 amp) | 1 | ||
| 55-3027 | SCREW - relay | 1 | ||
| 15 | 41-4270 | CONTACTOR | 1 | |
| 55-3022 | SCREW - contactor | 4 | ||
| 55-2990 | NUT | 4 | ||
| 16 | 44-9906 | TAB - harness connector | 1 | |
| 99-3281 | MOUNT - cable tie | 2 | ||
| 55-5130 | RIVET - tab & mount | 3 | ||
| 17 | 92-2135 | GUARD - fan | 1 | |
| 18 | 41-4826 | FAN (24V) | 1 | |
| 55-3847 | SCREW - guard & fan | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-9754 | INSERT - threaded | 4 | ||
| 19 | 92-2136 | BRACKET - service switch | 1 | |
| 55-1844 | SCREW - bracket | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-9754 | INSERT - threaded | 2 | ||
| 20 | 41-3068 | SWITCH - shutdown | 1 | |
| 21 | 41-2973 | HOLDER - fuse | 1 | |
| 22 | 41-226 | FUSE (40 amp, 32VDC) | 1 | |
|
10-41-226 | Предохранитель 40 ампер 10 шт | 1 860 ₽ |
|
| 23 | 92-2134 | CHANNEL - right support (AC box) | 1 | |
| 24 | 41-712 | RECEPTACLE (32 amp, 380V) | 1 | |
| 99-9052 | COVER - receptacle | 1 | ||
| 33-1697 | GASKET - receptacle | 2 | ||
| 55-5698 | SCREW - receptacle | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 25 | 92-2137 | COVER - box | 1 | |
| 55-2991 | SCREW - cover | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-8752 | INSERT - threaded | 4 | ||
| 26 | 44-1092 | LIGHT - indicator (green) | 1 | |
| 44-1411 | BULB - light | 1 | ||
| 27 | 41-4828 | DIODE - assembly (AC box) | 1 | |
| 41-4408 | TERMINAL - wirepin | 3 | ||
| 44-5066 | TERMINAL - fingrip | 2 | ||
| 28 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 41-3080 | FUSE - mini (2 amp) | 1 | ||
| 29 | 41-4831 | HARNESS - bulb | 1 | |
| 30 | 41-4838 | SUPPORT (AC box) | 2 | |
| 31 | 41-4827 | HARNESS - indicator light | 1 |
