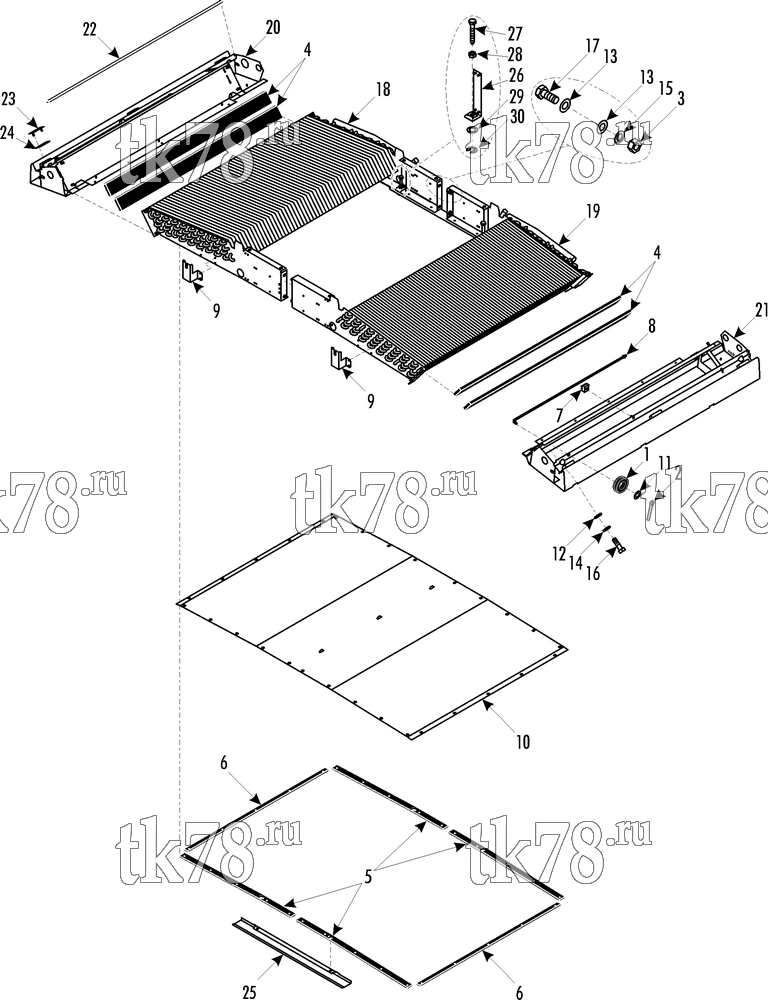

Установкa Thermo King SRT-III схема CONDENSER FRAME & COILS (5/03 & After) – 186B7
Обновление от: 5/5/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-314 | GROMMET - rod | 2 | |
| 2 | 55-3458 | PIN - cotter | 2 | |
| 3 | 55-7825 | NUT | 4 | |
| 4 | 33-3531 | STRIP - neoprene (10 ft) | A/R | |
| 5 | 91-9880 | STRIP - bottom plate | 4 | |
| 6 | 92-2317 | STRIP - bottom plate | 2 | |
| 7 | 91-7386 | CLAMP - rod | 2 | |
| 55-5130 | RIVET - clamp | 2 | ||
| 8 | 92-1163 | ROD - cover | 2 | |
| 9 | 91-9881 | BRACKET | 2 | |
| 10 | 98-6421 | PLATE - bottom | 1 | |
| 11 | 55-6995 | FLATWASHER (M6, 11 mm od) | 2 | |
| 12 | 55-7075 | FLATWASHER (M6, 12 mm od) | 8 | |
| 13 | 55-7085 | FLATWASHER (M8, 16 mm od) | 8 | |
| 14 | 55-7170 | LOCKWASHER (M6) | 8 | |
| 15 | 55-7342 | LOCKWASHER (M8) | 4 | |
| 16 | 55-6994 | SCREW - frame to coil | 8 | |
| 17 | 55-7341 | SCREW - coil | 4 | |
| 18 | 67-1860 | COIL - condenser (right) | 1 | |
| 19 | 67-1861 | COIL - condenser (left) | 1 | |
| 20 | 98-6667 | FRAME - condenser (right, Radius 5 m) | 1 | |
| 98-6669 | FRAME - condenser (right, Radius 7.5 m) | 1 | ||
| 98-6671 | FRAME - condenser (right, Radius 11.5 m) | 1 | ||
| 21 | 98-6668 | FRAME - condenser (left, Radius 5 m) | 1 | |
| 98-6670 | FRAME - condenser (left, Radius 7.5 m) | 1 | ||
| 98-6672 | FRAME - condenser (left, Radius 11.5 m) | 1 | ||
| 22 | 99-4976 | STRIP - frame (neoprene) | A/R | |
| 23 | 91-7625 | PLATE - lock | 6 | |
| 55-2012 | RIVET - plate | 12 | ||
| 24 | 55-2074 | NUT - special | 6 | |
| 25 | 92-2728 | SUPPORT - condenser | 2 | |
| 26 | 92-2729 | BRACKET | 4 | |
| 27 | 51-309 | SCREW - support | 4 | |
| 28 | 55-7348 | NUT - special | 4 | |
| 29 | 55-6995 | FLATWASHER | 4 | |
| 30 | 51-308 | WASHER - retaining | 4 |
