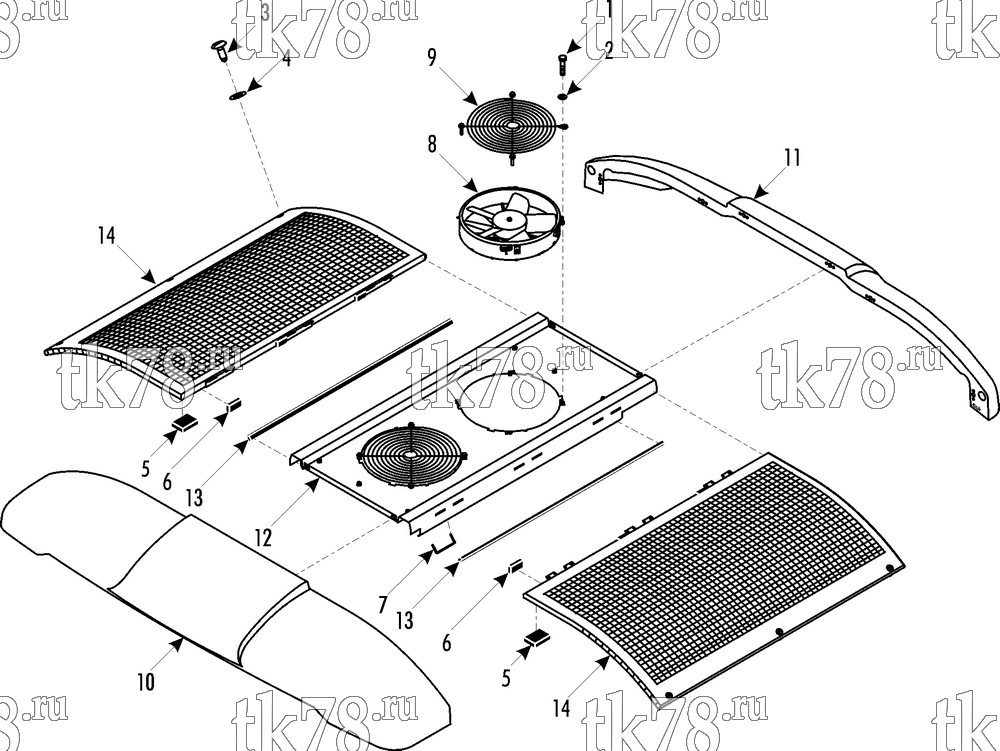

Установкa Thermo King SRT-III схема CONDENSER STRUCTURAL & FANS (5/03 & After) – 186B5
Обновление от: 5/5/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-2979 | SCREW - guard | 8 | |
| 2 | 55-2086 | FLATWASHER | 8 | |
| 3 | 55-2782 | SCREW - cover | 6 | |
| 4 | 55-7112 | WASHER - special | 6 | |
| 5 | 33-3544 | STRIP - neoprene | 4 | |
| 6 | 33-3573 | STRIP - neoprene | 6 | |
| 7 | 91-9877 | ROD - grille | 6 | |
| 8 | 78-1294 | FAN - condenser (24V, for connectors see 115D14) | 2 | |
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 9 | 98-5425 | GUARD - fan | 2 | |
| 10 | 98-5714 | SPOILER - long (Radius 7.5 m) | 1 | |
| 98-5630 | SPOILER - long (Radius 5 m) | 1 | ||
| 98-5734 | SPOILER - long (Radius 11.5 m) | 1 | ||
| 11 | 98-5715 | SPOILER - short (Radius 7.5 m) | 1 | |
| 98-5631 | SPOILER - short (Radius 5 m) | 1 | ||
| 98-5735 | SPOILER - short (Radius 11.5 m) | 1 | ||
| 12 | 98-6413 | PLATE - top | 1 | |
| 55-6994 | SCREW - plate | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 8 | ||
| 13 | 99-7246 | STRIP - neoprene (2.995 ft) | A/R | |
| 14 | 98-6665 | GRILLE - condenser (Radius 5 m, 7.5 m) | 2 | |
| 98-6666 | GRILLE - condenser (Radius 11.5 m) | 2 |
