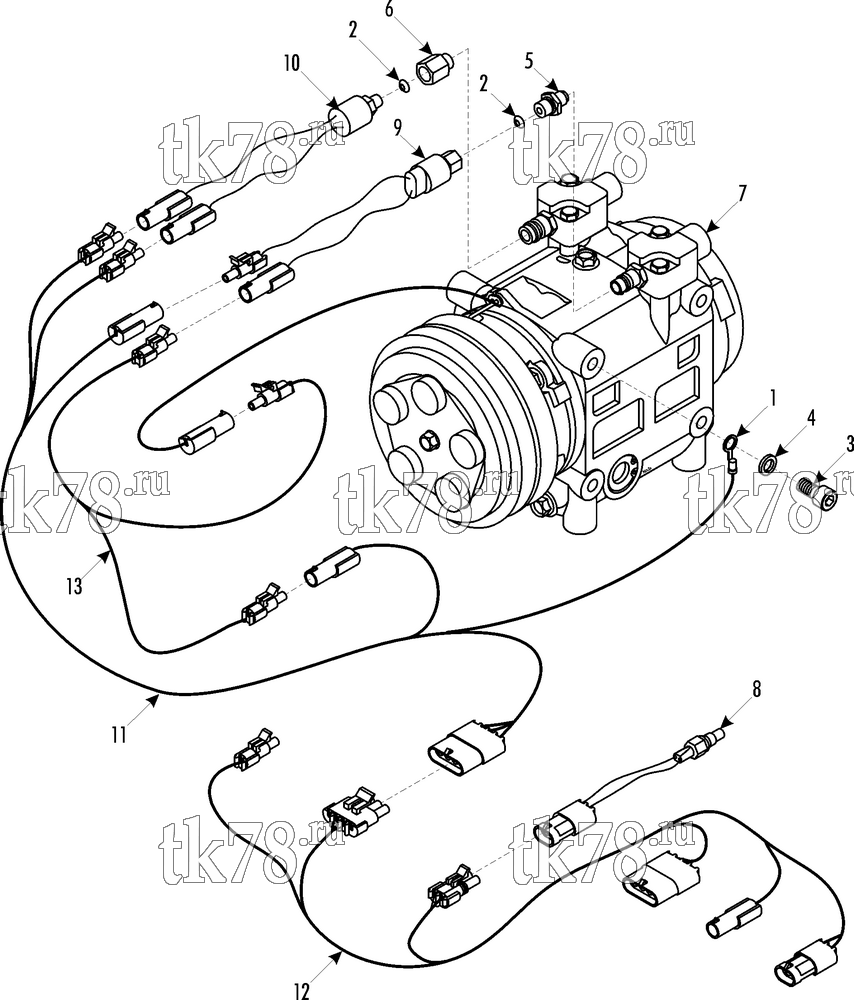

Установкa Thermo King SRT-III схема COMPRESSOR GROUP - TM31 (KIT 718830 & 715546) – 175E8
Обновление от: 6/20/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2786 | TERMINAL - ring | 1 | |
| 2 | 33-768 | GASKET | 2 | |
| 3 | 55-6216 | SCREW | 1 | |
| 4 | 55-5411 | LOCKWASHER | 1 | |
| 5 | 55-9120 | FITTING - adapter | 1 | |
| 6 | 55-9121 | FITTING - adapter | 1 | |
| 7 | 102-633 | COMPRESSOR - TM31 (2BG, 24V) | 1 | |
| 107-337 | CLUTCH (2B, 24V) | 1 | ||
| 22-1261 | FITTING - discharge | 1 | ||
| 22-1262 | FITTING - suction | 1 | ||
| 55-5406 | SCREW - fittings | 4 | ||
| 33-4305 | O-RING | 2 | ||
| 8 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 9 | 44-8734 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 10 | 41-1501 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 11 | 41-1236 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 12 | 41-2634 | HARNESS - extension (kit 715546, for connectors see 115D14) | 1 | |
| 13 | 41-4056 | HARNESS - compressor (for connectors see 115D14) | 1 |
