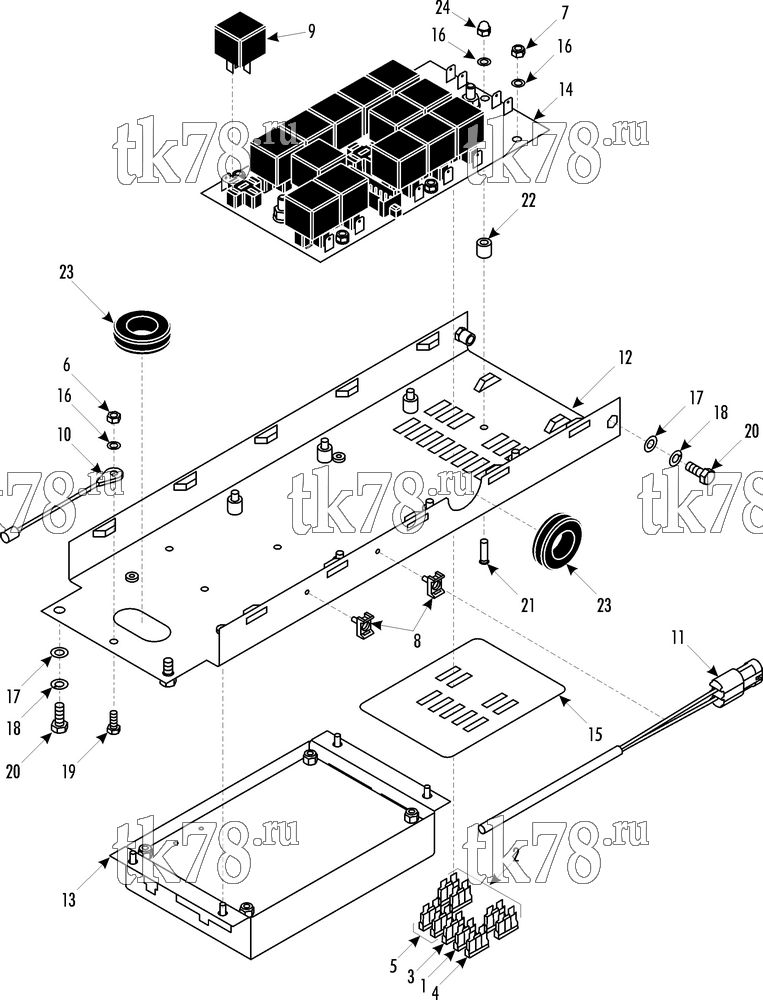

Установкa Thermo King SRT-III схема CONTROL PANEL (INTELLIGIAIRE) – 175E6
Обновление от: 5/5/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-1292 | FUSE (5 amp) | 1 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 2 | 44-9758 | FUSE (10 amp) | 4 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 3 | 44-9344 | FUSE (15 amp) | 2 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 4 | 41-1932 | FUSE (1 amp) | 1 | |
| 5 | 41-2978 | FUSE (20 amp) | 2 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 5 | 33-452 | GROMMET | 2 | |
| 6 | 55-7367 | NUT | 1 | |
| 7 | 55-7034 | NUT | 7 | |
| 8 | 99-3427 | MOUNT - cable tie | 2 | |
| 55-3010 | RIVET - mount | 2 | ||
| 9 | 41-896 | RELAY (1 pdt) | 14 | |
| 10 | 41-243 | STRAP - door | 1 | |
| 11 | 41-7706 | SENSOR - temperature | 1 | |
| 12 | 92-916 | PANEL - control | 1 | |
| 55-7373 | NUT - captive | 2 | ||
| 13 | NSS | CONTROLLER - IntelligAIRE (see 175E7) | 1 | |
| 55-8482 | INSERT | 4 | ||
| 55-7031 | LOCKWASHER | 4 | ||
| 55-7862 | SCREW - controller to panel | 4 | ||
| 14 | 41-4154 | BOARD - pc | 1 | |
| 15 | 92-2978 | NAMPLATE - Fuse | 1 | |
| 16 | 55-7033 | FLATWASHER | 8 | |
| 17 | 55-7075 | FLATWASHER | 4 | |
| 18 | 55-7170 | LOCKWASHER | 4 | |
| 19 | 55-7169 | SCREW - strap | 1 | |
| 20 | 55-7172 | SCREW - panel | 4 | |
| 21 | 55-9706 | STUD - board | 7 | |
| 22 | 55-9624 | SPACER - board | 8 | |
| 23 | 33-452 | GROMMET | 2 | |
| 24 | 51-310 | NUT (M5, plastic) | 1 |
