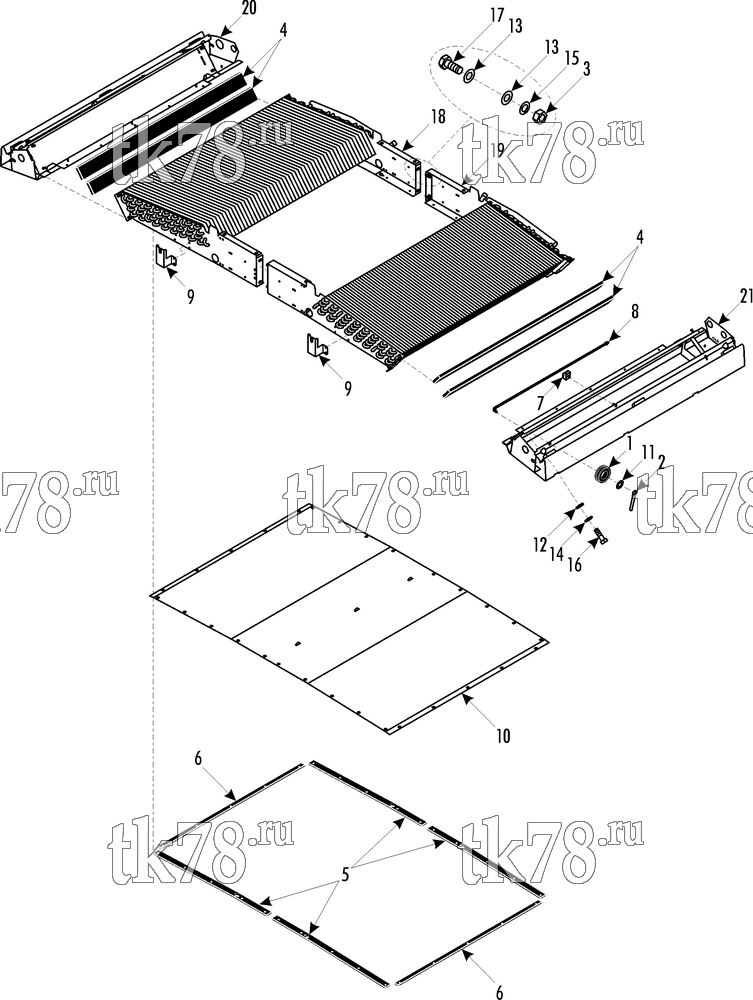

Установкa Thermo King SRT-III схема CONDENSER FRAME & COILS (Before 5/03) – 175D5
Обновление от: 5/5/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-314 | GROMMET - rod | 2 | |
| 2 | 55-3458 | PIN - cotter | 2 | |
| 3 | 55-7825 | NUT | 4 | |
| 4 | 33-3531 | STRIP - neoprene (10 ft) | A/R | |
| 5 | 91-9880 | STRIP - bottom plate | 4 | |
| 6 | 92-2317 | STRIP - bottom plate | 2 | |
| 7 | 91-7386 | CLAMP - rod | 2 | |
| 55-5130 | RIVET - clamp | 2 | ||
| 8 | 92-1163 | ROD - cover | 2 | |
| 9 | 91-9881 | BRACKET | 2 | |
| 10 | 98-6421 | PLATE - bottom | 1 | |
| 11 | 55-6995 | FLATWASHER | 2 | |
| 12 | 55-7075 | FLATWASHER | 8 | |
| 13 | 55-7085 | FLATWASHER | 8 | |
| 14 | 55-7170 | LOCKWASHER | 8 | |
| 15 | 55-7342 | LOCKWASHER | 4 | |
| 16 | 55-6994 | SCREW - frame to coil | 8 | |
| 17 | 55-7341 | SCREW - coil | 4 | |
| 18 | 67-1860 | COIL - condenser (right) | 1 | |
| 19 | 67-1861 | COIL - condenser (left) | 1 | |
| 20 | 98-6422 | FRAME - condenser (right, Radius - 5 m) | 1 | |
| 98-6423 | FRAME - condenser (right, Radius - 7.5 m) | 1 | ||
| 98-6426 | FRAME - condenser (right, Radius - 11.5 m) | 1 | ||
| 21 | 98-6424 | FRAME - condenser (left, Radius - 5 m) | 1 | |
| 98-6425 | FRAME - condenser (left, Radius - 7.5 m) | 1 | ||
| 98-6427 | FRAME - condenser (left, Radius - 11.5 m) | 1 |
