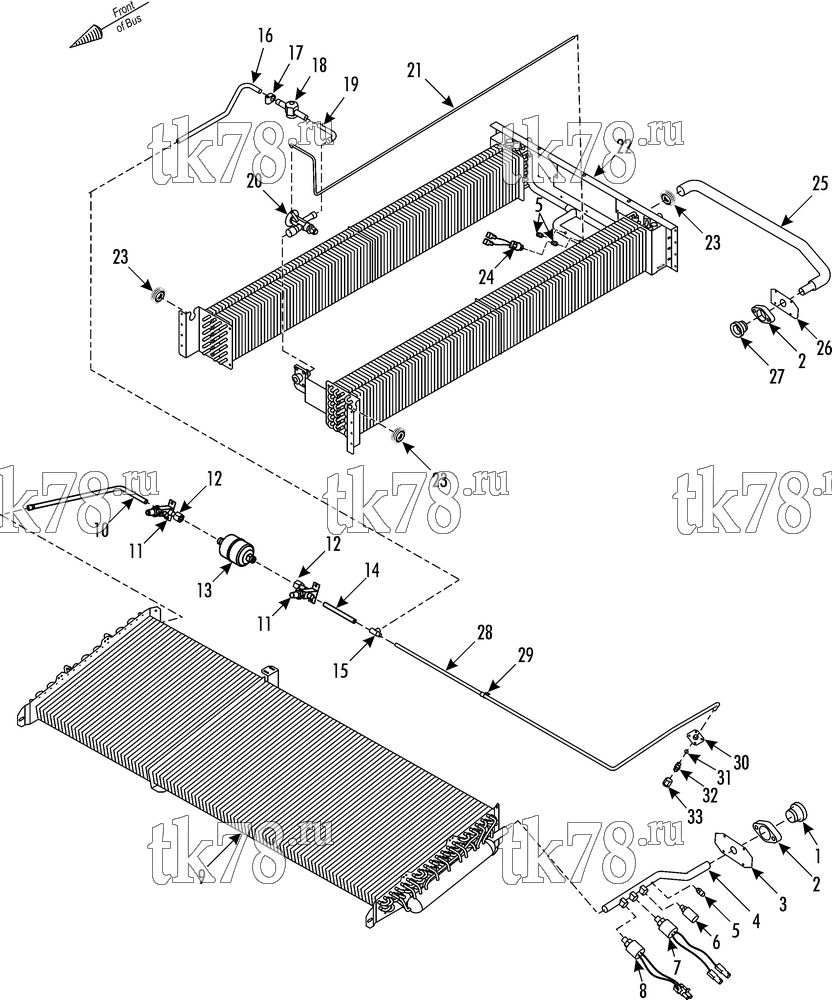

Установкa Thermo King SR-70 Plus схема REFRIGERATION COMPONENTS – 233E6
Обновление от: 2/12/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 51-577 | ADAPTER - tube | 1 | |
| 2 | 55-9186 | FLANGE | 2 | |
| 3 | 92-2934 | HOLDER - fitting | 1 | |
| 55-5130 | RIVET - holder | A/R | ||
| 4 | 61-2174 | TUBE - adapter to condenser | 1 | |
| 66-2805 | FITTING - saddle | 1 | ||
| 66-6996 | FITTING - saddle | 2 | ||
| 5 | 66-9842 | VALVE - pressure | 3 | |
| 6 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 7 | 41-1501 | SWITCH - hpco | 1 | |
| 8 | 41-5220 | SWITCH - cps | 1 | |
| 9 | 67-1936 | COIL - condenser | 1 | |
| 10 | 61-3304 | TUBE - coil to valve | 1 | |
| 11 | 66-4694 | VALVE - shutoff | 2 | |
| 55-6994 | SCREW - valve | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 12 | 61-2246 | TUBE - valve to dehydrator | 2 | |
| 13 | 66-8344 | FILTER - dehydrator | 1 | |
| 14 | 61-2175 | TUBE - dehydrator to tee | 1 | |
| 15 | 66-622 | TEE (1/2 x 3/8 x 1/2) | 1 | |
| 16 | 61-2176 | TUBE - tee to indicator | 1 | |
| 17 | 91-758 | CLAMP - indicator | 1 | |
| 55-8316 | SCREW - clamp | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 1 | ||
| 18 | 66-1188 | INDICATOR - liquid | 1 | |
| 19 | 61-2177 | TUBE - indicator to expansion valve | 1 | |
| 20 | 66-8121 | VALVE - expansion | 1 | |
| 21 | 61-2178 | TUBE - equalizer | 1 | |
| 22 | 67-1937 | COIL - evaporator (1004) | 1 | |
| 67-1938 | COIL - evaporator (1000) | 1 | ||
| 23 | 33-572 | GROMMET (0.75 id) | 2 | |
| 33-629 | GROMMET (1.125 id) | 1 | ||
| 24 | 41-4309 | SWITCH - lpco | 1 | |
| 25 | 61-2180 | TUBE - evaporator to adapter | 1 | |
| 91-3542 | INSULATION - tube (5 ft) | A/R | ||
| 26 | 92-2935 | HOLDER - fitting | 1 | |
| 55-5130 | RIVET - holder | A/R | ||
| 27 | 51-578 | ADAPTER | 1 | |
| 28 | 61-2179 | TUBE - to front box | 1 | |
| 29 | 55-3484 | CLAMP - tube | 1 | |
| 55-7664 | SCREW - clamp | 1 | ||
| 55-7369 | LOCKWASHER | 1 | ||
| 55-7697 | FLATWASHER | 1 | ||
| 30 | 61-1079 | FITTING - bulkhead (front box) | 1 | |
| 55-5130 | RIVET - fitting | A/R | ||
| 31 | 33-1461 | O-RING | 1 | |
| 32 | 92-120 | INSERT - plug | 1 | |
| 33 | 92-121 | NUT | 1 |
