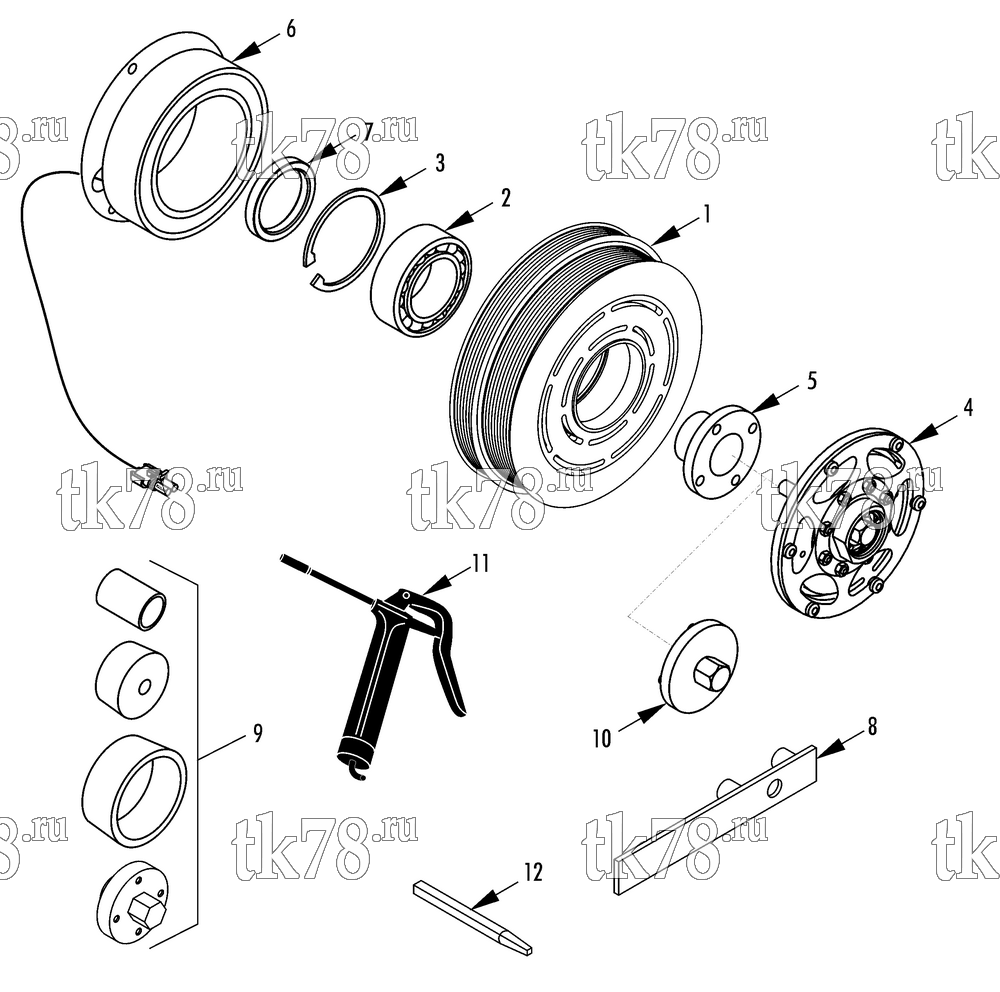

Установкa Thermo King SR-70 Plus схема TK HIGH TORQUE CLUTCH (77-2938) – 233C5
Обновление от: 10/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2938 | PULLEY (9K 226mm, 6K 238mm) | 1 | |
| 2 | 77-2827 | BEARING | 1 | |
| 3 | 51-1107 | CIRCLIP | 1 | |
| 4 | 77-2790 | HUB & ARMATURE | 1 | |
| 5 | 77-2831 | CLAMPING - sleeve | 1 | |
| 6 | 45-2106 | COIL (24VDC) | 1 | |
| 7 | 77-1491 | SPACER | 1 | |
| 8 | 204-481 | PULLER - clutch | 1 | |
| 9 | 204-1147 | TOOL KIT | 1 | |
| 10 | 204-1200 | WRENCH | 1 | |
| 11 | 204-477 | GUN - grease | 1 | |
| 204-476 | GREASE | A/R | ||
| 12 | 204-972 | TOOL - keyway alignment | 1 |
