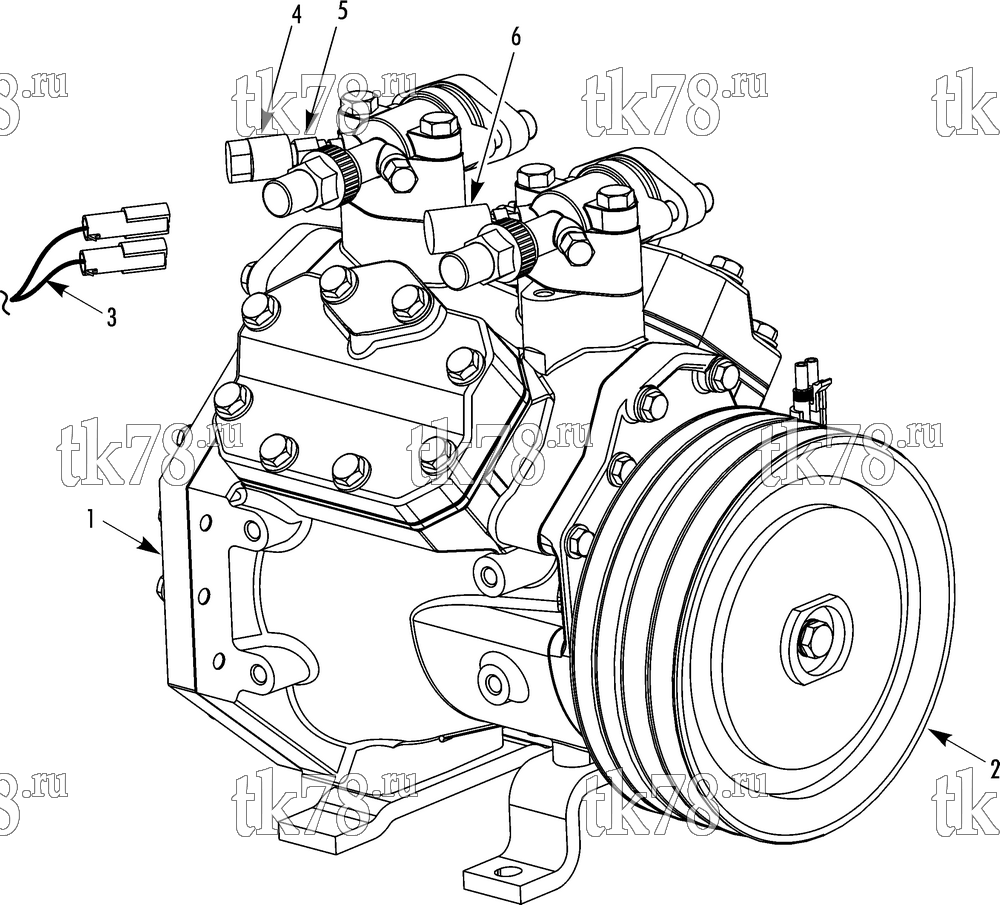

Установкa Thermo King SR-70 Plus схема COMPRESSOR GROUP BLITZER (1E42700G01, KIT 701132) – 232G3
Обновление от: 2/5/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-943 | COMPRESSOR (F400Y) | 1 | |
| 2 | 107-371 | CLUTCH - 2-B/2-A 24V (Dongyang) | 1 | |
| 3 | 41-6795 | HARNESS - compressor (for connectors, see 115D14) | 1 | |
| 4 | 41-4147 | SWITCH - low pressure cutout | 1 | |
| 5 | 55-459 | COUPLING | 1 | |
| 6 | 41-4146 | SWITCH - high pressure cutout | 1 |
