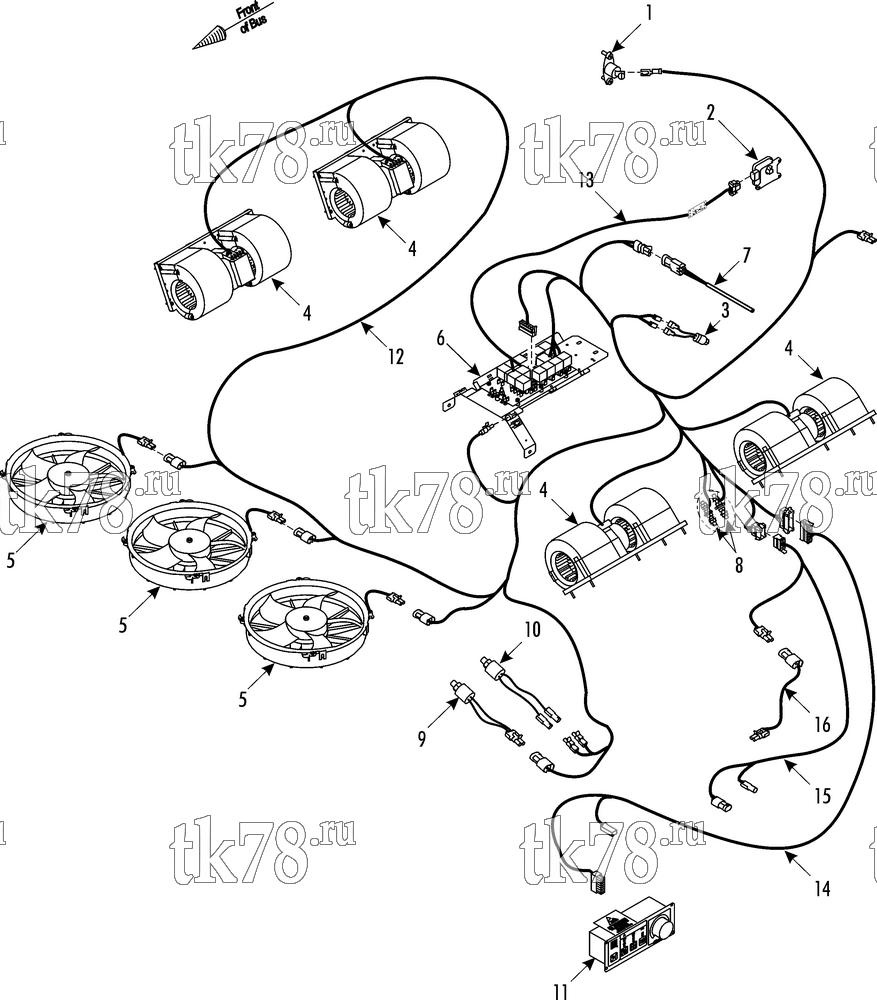

Установкa Thermo King SR-70 Plus схема ELECTRICAL COMPONENTS – 232F9
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-3292 | THERMOSTAT - defrost termination | 1 | |
| 55-7663 | SCREW - switch | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-8120 | FLATWASHER (nylon) | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 2 | 41-4315 | SERVOMOTOR (12V) | 1 | |
| 3 | 41-4309 | SWITCH - lpco | 1 | |
| 55-7696 | SCREW - servomotor | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 4 | 78-1297 | BLOWER - evaporator (24V) | 4 | |
| 78-1666 | BLOWER - evaporator (24V, Shuhang) | 4 | ||
| 55-7696 | SCREW - blower | 20 | ||
| 55-7031 | LOCKWASHER | 20 | ||
| 55-7368 | FLATWASHER | 20 | ||
| 5 | 78-1344 | FAN - condenser (24V) | 3 | |
| 78-1530 | FAN - condenser (24V) | 3 | ||
| 6 | NSS | PANEL - control (24V, see 184F7) | 1 | |
| 7 | 41-4157 | SENSOR - temperature | 1 | |
| 8 | 55-9367 | STUD - positive & negative | 1 | |
| 55-8631 | WASHER - shoulder (nylon) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-3238 | LOCKWASHER (internal tooth) | 5 | ||
| 55-8955 | WASHER - bright | 8 | ||
| 55-448 | FLATWASHER | 4 | ||
| 305-1653 | NUT | 8 | ||
| 9 | 41-5220 | SWITCH - cps | 1 | |
| 10 | 41-1501 | SWITCH - hpco | 1 | |
| 11 | 41-7211 | ClimaAIRE I - assembly | 1 | |
| 41-4658 | ClimaAIRE II - assembly (see 184F9) | 1 | ||
| 12 | 41-5386 | HARNESS - unit (see 232F8) | 1 | |
| 13 | 41-5387 | HARNESS - servomotor | 1 | |
| 14 | 41-4512 | HARNESS - driver panel (18.3 m) | 1 | |
| 41-4313 | HARNESS - driver panel (12 m) | 1 | ||
| 15 | 41-6775 | HARNESS - compressor (TM31, 12 m) | 1 | |
| 41-6776 | HARNESS - compressor (TM31, 14 m) | 1 | ||
| 41-4912 | HARNESS - compressor (X430, 12 m) | 1 | ||
| 41-8488 | HARNESS - compressor (KRS, 12 m) | 1 | ||
| 16 | 41-4143 | HARNESS - boost pump (14 m) | 1 | |
| 41-4144 | HARNESS - boost pump (9 m) | 1 | ||
| 41-6152 | HARNESS - boost pump (7.6 m) | 1 |
