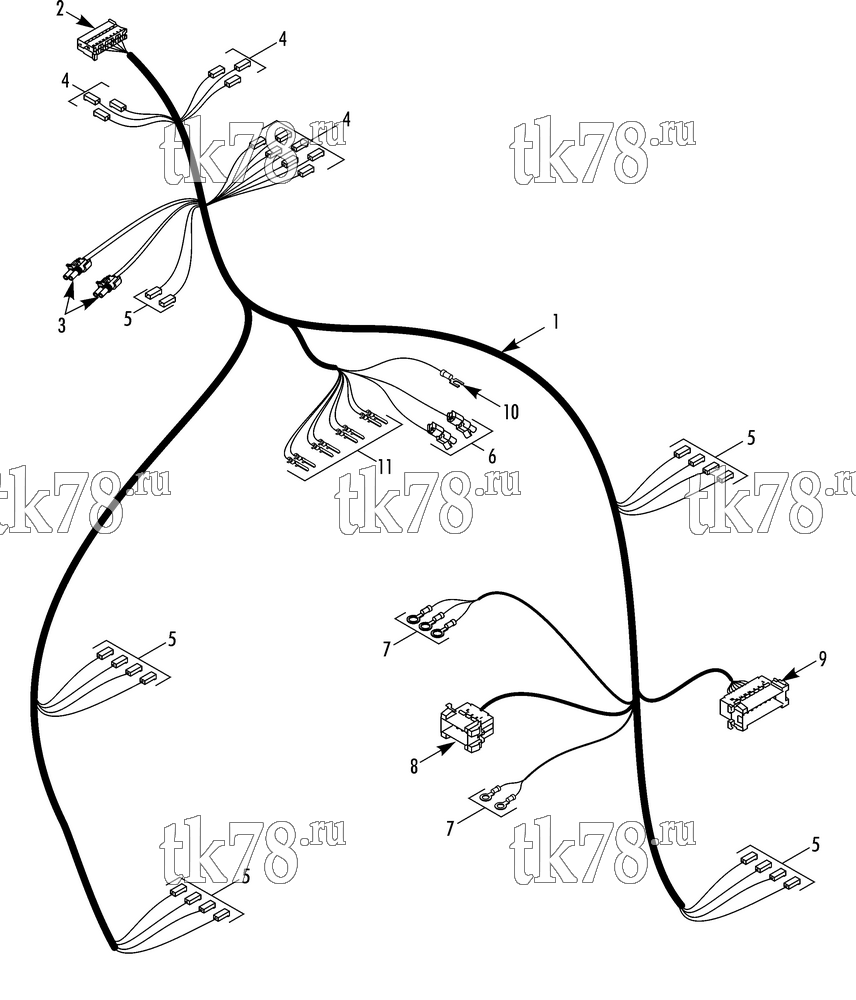

Установкa Thermo King SR-70 Plus схема HARNESS EVAPORATOR – 232F8
Обновление от: 2/5/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5386 | HARNESS - evaporator | 1 | |
| 2 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 41-4247 | RECEPTACLE (.5mm) | 19 | ||
| 41-4248 | RECEPTACLE (1.5mm) | 2 | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 4 | 41-5243 | FINGRIP (14 - 16 ga) | 11 | |
| 5 | 44-6381 | COVER - terminal | 18 | |
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 18 | ||
| 6 | 44-7327 | CONNECTOR - tower (1-pin) | 2 | |
| 7 | 44-2790 | TERMINAL - ring (blue 5/16, 14-16 ga) | 5 | |
| 8 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 41-2779 | PIN - male (18 ga) | 15 | ||
| 41-2785 | PIN - male (14 ga) | 7 | ||
| 9 | 41-2772 | CONNECTOR - male (18-pin) | 1 | |
| 10 | 44-2788 | TERMINAL - fork | 1 | |
| 11 | 44-5836 | TERMINAL - male (14-16 ga) | 8 |
