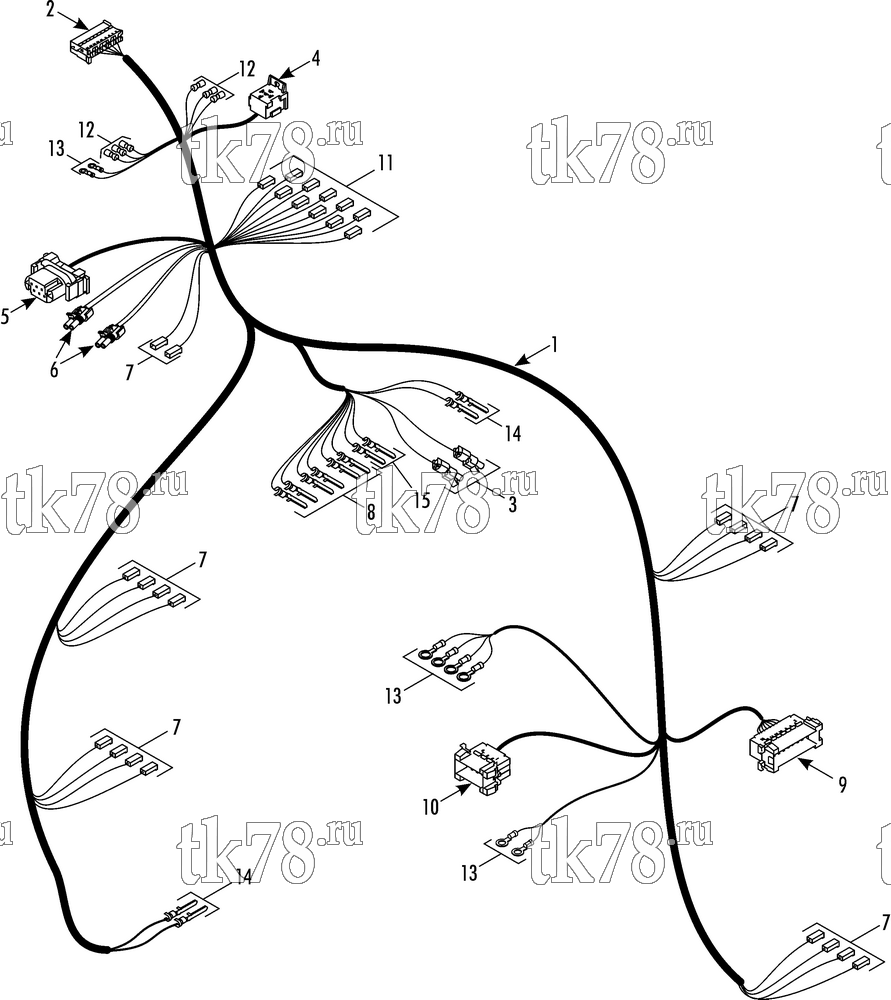

Установкa Thermo King SR-70 Plus схема HARNESS ClimaAIRE SR70 24VDC – 232F5
Обновление от: 9/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5388 | HARNESS - ClimaAIRE (SR 70 24VDC) | 1 | |
| 2 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 41-4247 | RECEPTACLE | 8 | ||
| 3 | 44-7327 | CONNECTOR - tower (1-pin) | 2 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray) | 2 | ||
| 4 | 44-5537 | SOCKET - relay | 1 | |
| 44-5066 | FINGRIP (18-14 ga) | 5 | ||
| 5 | 41-2768 | CONNECTOR - female (6-pin) | 1 | |
| 41-3290 | SOCKET | 3 | ||
| 41-3289 | SEAL - green | 3 | ||
| 6 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 44-5884 | TERMINAL - female | 4 | ||
| 44-8681 | SEAL | 4 | ||
| 7 | 44-6381 | CONNECTOR - female | 18 | |
| 44-5066 | TERMINAL -fingrip (18-14 ga) | 18 | ||
| 8 | 44-5836 | TERMINAL - male (16-14 ga) | 6 | |
| 44-6324 | SEAL (12-14 ga) | 6 | ||
| 9 | 41-2772 | CONNECTOR - male (18-pin) | 1 | |
| 10 | 41-4054 | CONNECTOR - male (10-pin) | 1 | |
| 41-2779 | PIN - male (18 ga) | 14 | ||
| 41-2785 | PIN - male (14 ga) | 8 | ||
| 11 | 41-5243 | FINGRIP (14-16 ga) | 12 | |
| 12 | 41-5244 | FINGRIP (10-12 ga) | 5 | |
| 13 | 44-2789 | TERMINAL - ring (22-16 ga 1/4) | 2 | |
| 44-1031 | TERMINAL - ring (22-16 ga 5/16) | 1 | ||
| 44-2790 | TERMINAL - ring (16-14 ga 5/16) | 12 | ||
| 14 | 44-5884 | TERMINAL - female (20-18 ga) | 4 | |
| 44-8681 | SEAL - cable (red) | 4 | ||
| 15 | 44-5883 | TERMINAL - male (20-18 ga) | 2 | |
| 44-8681 | SEAL - cable (red) | 2 |
