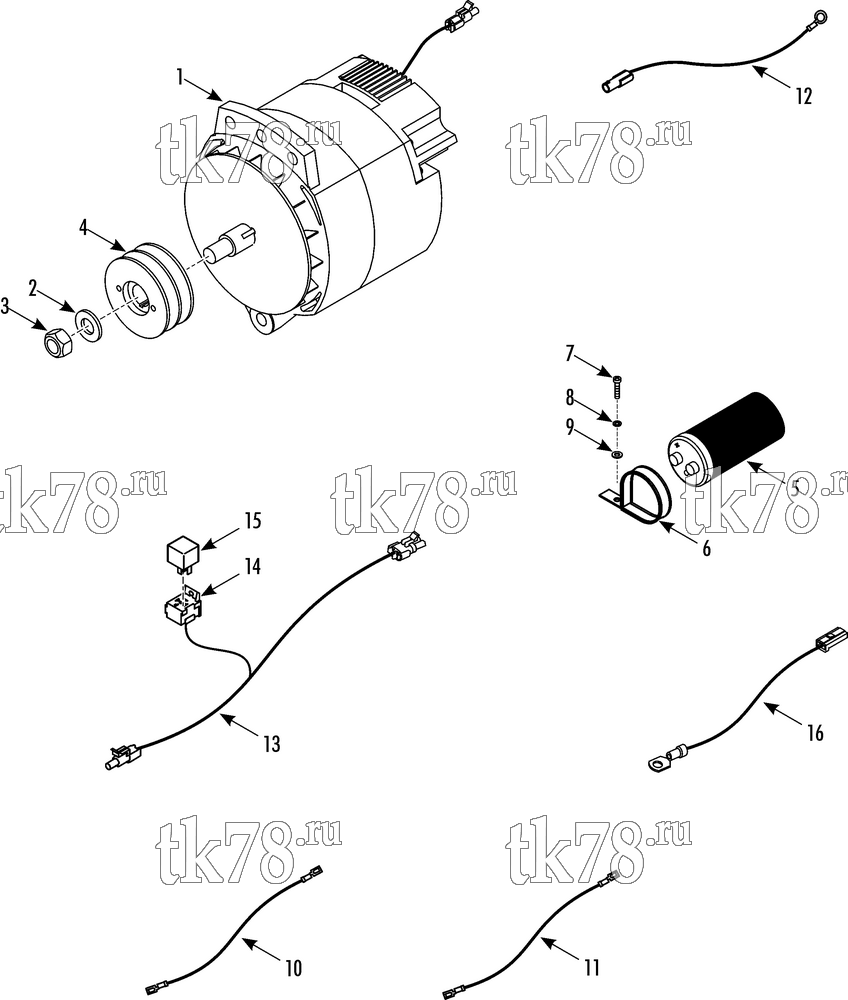

Установкa Thermo King SR-70 Plus схема ALTERNATOR KIT (719305) – 232F3
Обновление от: 7/25/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2791 | ALTERNATOR (20/27VDC, see 186B4) | 1 | |
| 2 | 55-5058 | FLATWASHER | 1 | |
| 3 | 55-5321 | NUT | 1 | |
| 4 | 77-1240 | PULLEY - alternator | 1 | |
| 5 | 44-4055 | CAPACITOR | 1 | |
| 6 | 55-5618 | CLAMP (2.000 dia) | 2 | |
| 7 | 55-3511 | SCREW - clamp | 2 | |
| 8 | 55-2202 | LOCKWASHER | 2 | |
| 9 | 55-2201 | FLATWASHER | 2 | |
| 10 | 41-5383 | HARNESS (2E) | 1 | |
| 41-8664 | HARNESS (2E, 10.0 in long, optional) | 1 | ||
| 44-2792 | TERMINAL - ring (#10 yellow, 12-10 ga) | 1 | ||
| 44-5089 | TERMINAL - ring (3/8 yellow, 12-10 ga) | 1 | ||
| 11 | 41-5384 | HARNESS (CH) | 1 | |
| 41-8663 | HARNESS (CH, 10.0 in long, optional) | 1 | ||
| 44-2792 | TERMINAL - ring (#10 yellow, 12-10 ga) | 1 | ||
| 44-5089 | TERMINAL - ring (3/8 yellow, 12-10 ga) | 1 | ||
| 12 | 41-4629 | HARNESS - alternator (for connector see 115D14) | 1 | |
| 44-2791 | TERMINAL - ring (#10 blue, 16-14 ga) | 1 | ||
| 44-7330 | CONNECTOR - shroud (1-pin) | 1 | ||
| 44-5836 | TERMINAL - male (16-14 ga) | 1 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 13 | 41-4510 | HARNESS - alternator (for ClimaAIRE, for connector see 115D14) | 1 | |
| 44-7327 | CONNECTOR - tower (1-pin) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (16-14 ga) | 3 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 14 | 44-5537 | SOCKET - relay | 1 | |
| 15 | 41-896 | RELAY (1pdt, 24V) | 1 | |
| 16 | 41-1867 | HARNESS - alternator (optional) | 1 | |
| 44-5630 | TERMINAL - fingrip (14-16 ga) | 1 | ||
| 44-6451 | CONNECTOR (1-pin) | 1 | ||
| 44-2790 | TERMINAL - ring (5/16 blue, 16-14 ga) | 1 |
