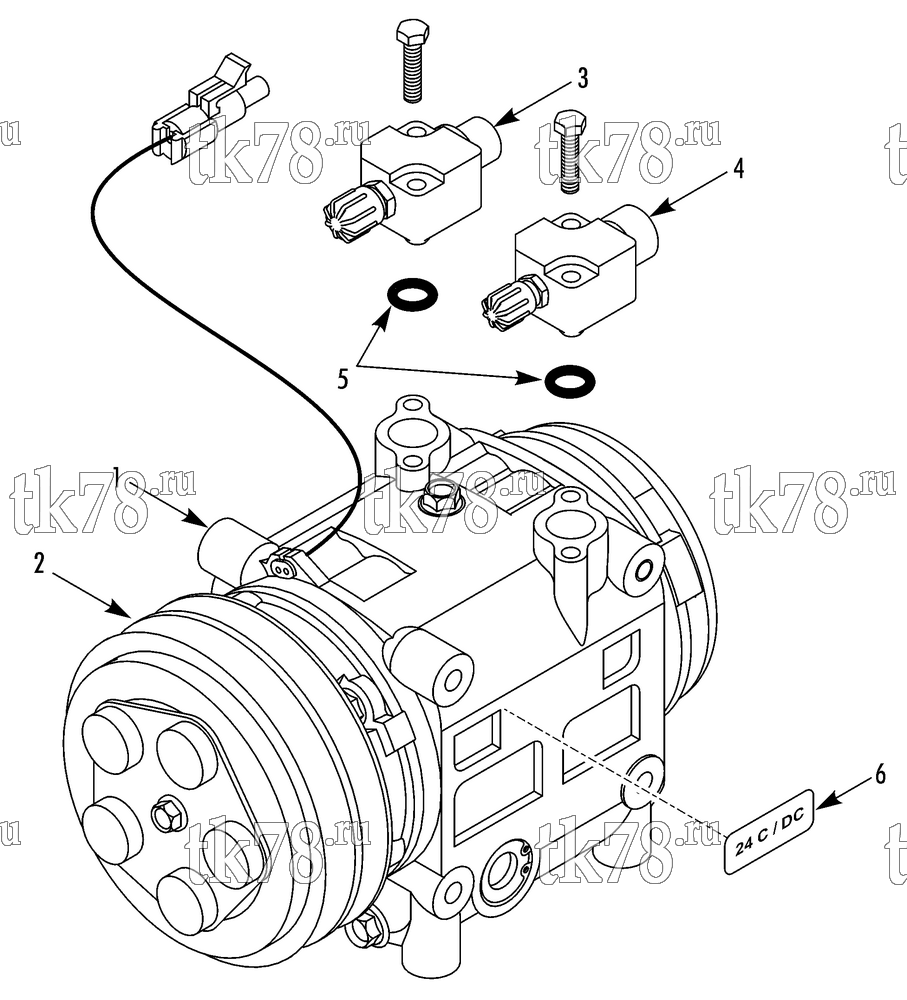

Установкa Thermo King SR-70 Plus схема COMPRESSOR GROUP - TM31 (2C35549G04, KIT 718377) – 232F2
Обновление от: 7/6/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 102-999 | COMPRESSOR - TM31 HD (less clutch) | 1 | ||
| 102-994 | COMPRESSOR - TM31 HD (less clutch & fittings) | 1 | ||
| 1 | 102-633 | COMPRESSOR - TM31 (24V 2B) | 1 | |
| 2 | 107-337 | CLUTCH (2B, 24V) | 1 | |
| 3 | 22-1261 | FITTING - discharge | 1 | |
| 4 | 22-1262 | FITTING - suction | 1 | |
| 55-5406 | SCREW - fittings | 4 | ||
| 5 | 33-4305 | O-RING | 2 | |
| 203-515 | OIL - compressor | A/R | ||
| 6 | 91-7543 | NAMEPLATE - 24VDC | 1 |
