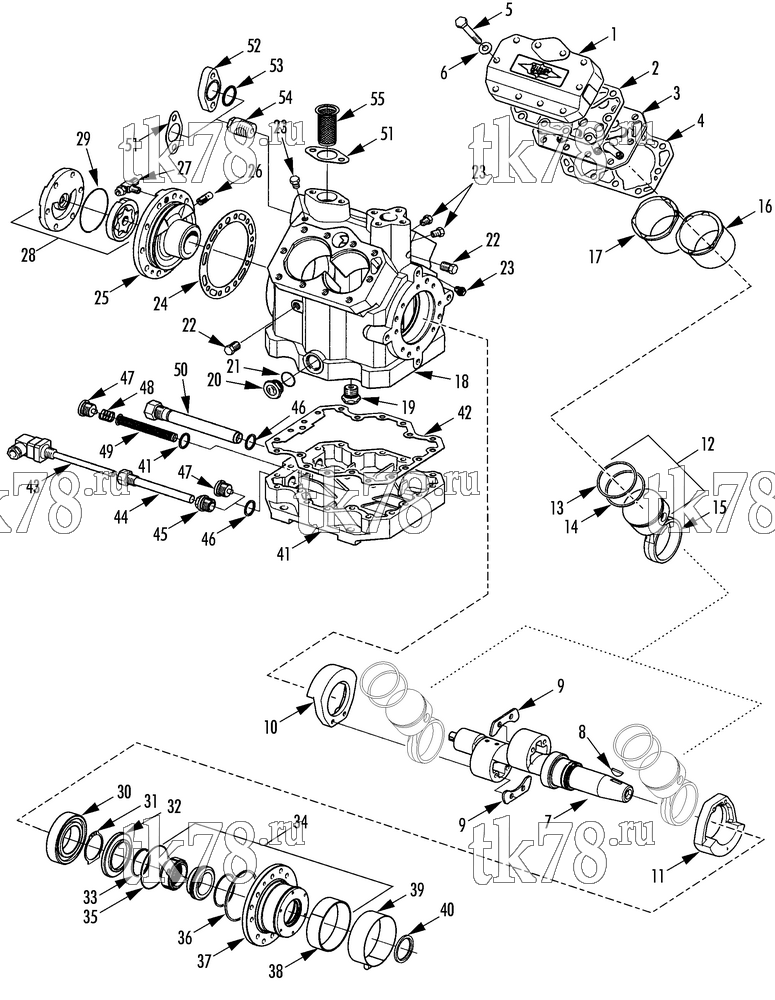

Установкa Thermo King SR-70 Plus схема COMPRESSOR - Bitzer – 226D1
Обновление от: 12/14/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 102-861 | COMPRESSOR - Bitzer | 1 | ||
| 1 | 22-1282 | HEAD - cylinder | 1 | |
| 2 | 33-4418 | GASKET | 2 | |
| 3 | 22-1283 | PLATE - valve | 1 | |
| 4 | 33-4419 | GASKET | 2 | |
| 5 | 51-1716 | SCREW - cylinder (M10 x 75) | 12 | |
| 51-1717 | SCREW - cylinder (M10 x 55) | 8 | ||
| 6 | 51-1718 | WASHER | 20 | |
| 7 | 22-1284 | CRANKSHAFT | 1 | |
| 77-2926 | BEARING - roller | 1 | ||
| 8 | 51-1714 | KEY | 1 | |
| 9 | 22-1285 | PLATE - thrust | 2 | |
| 10 | 22-1286 | WEIGHT - balance | 1 | |
| 11 | 22-1287 | WEIGHT - balance | 1 | |
| 51-1715 | SCREW - weight/plate | 4 | ||
| 51-1719 | LOCKWASHER | 4 | ||
| 12 | 22-1289 | PISTON | 4 | |
| 13 | 22-1290 | RING - piston #1 | 4 | |
| 14 | 22-1291 | RING - piston #2 | 4 | |
| 15 | 22-1292 | ROD - connecting | 4 | |
| 16 | 22-1293 | LINER - cylinder (right) | 2 | |
| 17 | 22-1294 | LINER - cylinder (left) | 2 | |
| 18 | 23-156 | HOUSING | 1 | |
| 19 | 22-1295 | VALVE - equalizing | 1 | |
| 20 | 22-1296 | SIGHTGLASS | 1 | |
| 21 | 33-4420 | O-RING | 1 | |
| 22 | 51-1720 | PLUG - sealing | 2 | |
| 23 | 51-1721 | PLUG - sealing | 4 | |
| 24 | 33-4421 | GASKET | 1 | |
| 25 | 22-1297 | COVER - bearing | 1 | |
| 51-1722 | SCREW - cover | 10 | ||
| 51-1723 | WASHER | 10 | ||
| 26 | 22-1298 | VALVE - pressure relief | 1 | |
| 27 | 22-1299 | VALVE - service (Schrader) | 1 | |
| 28 | 22-1300 | PUMP - oil | 1 | |
| 29 | 33-4422 | O-RING - oil pump | 1 | |
| 51-1724 | SCREW - oil pump | 6 | ||
| 30 | 77-2927 | BEARING - crankshaft | 1 | |
| 31 | 51-1725 | RING - retaining | 1 | |
| 32 | 22-1301 | RING | 1 | |
| 33 | 33-4423 | GASKET - ring | 1 | |
| 34 | 22-1302 | SEAL - shaft (inc cover & o-rings) | 1 | |
| 35 | 33-4422 | O-RING | 1 | |
| 36 | 33-4424 | O-RING | 1 | |
| 37 | 22-1303 | COVER - shaft seal | 1 | |
| 38 | 33-4425 | TAPE | 1 | |
| 51-1722 | SCREW | 8 | ||
| 51-1723 | WASHER | 8 | ||
| 39 | 33-4426 | GASKET | 1 | |
| 40 | 33-4427 | SEAL | 1 | |
| 41 | 22-1304 | SUMP - oil | 1 | |
| 42 | 33-4428 | GASKET | 1 | |
| 51-1726 | SCREW - oil sump | 20 | ||
| 51-1723 | WASHER | 20 | ||
| 43 | 41-8089 | HEATER - crankcase | 1 | |
| 44 | 22-1305 | SLEEVE - heater | 1 | |
| 45 | 51-1727 | ADAPTER - heater | 1 | |
| 46 | 33-4429 | GASKET | 3 | |
| 47 | 51-1728 | SCREW - magnetic | 1 | |
| 48 | 22-1306 | SPRING - pressure | 1 | |
| 49 | 22-1307 | SCREEN - oil | 1 | |
| 50 | 22-1308 | DRIER - oil | 1 | |
| 51 | 33-4430 | GASKET - flange | 4 | |
| 52 | 22-1309 | FLANGE | 1 | |
| 51-1729 | SCREW - flange | 2 | ||
| 53 | 33-4431 | O-RING | 1 | |
| 54 | 22-1310 | VALVE - pressure relief | 2 | |
| 55 | 22-1311 | FILTER - suction | 1 |
